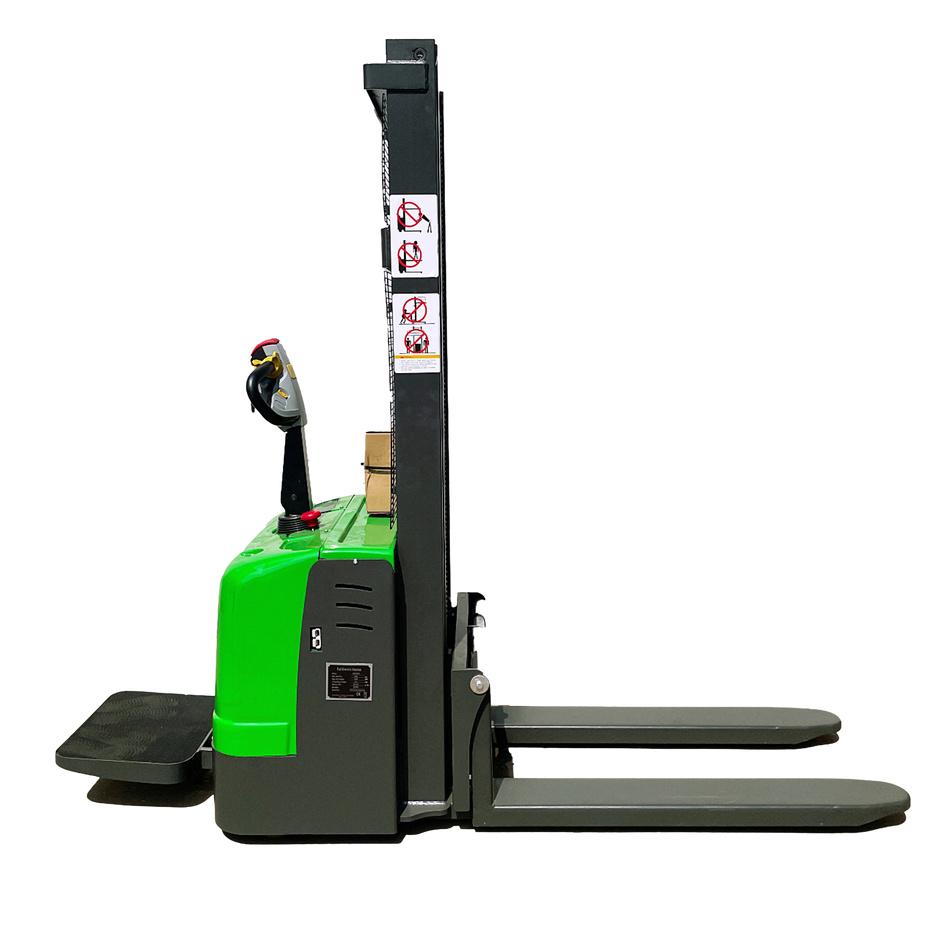

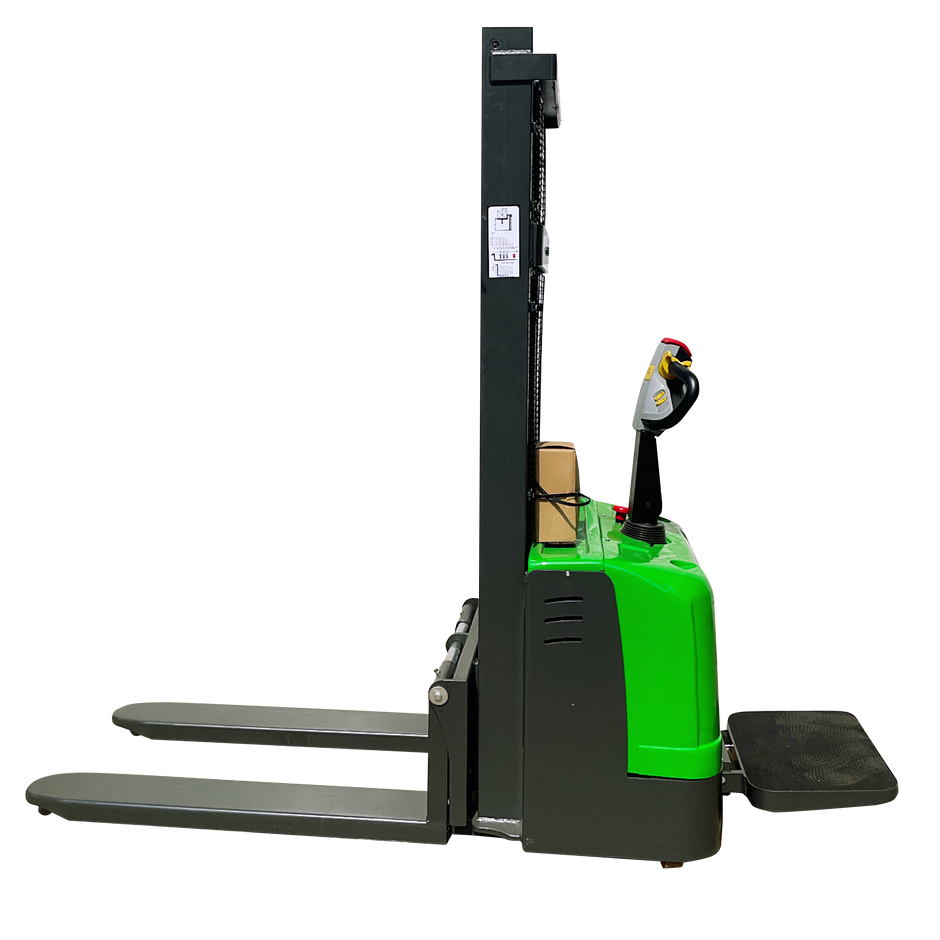

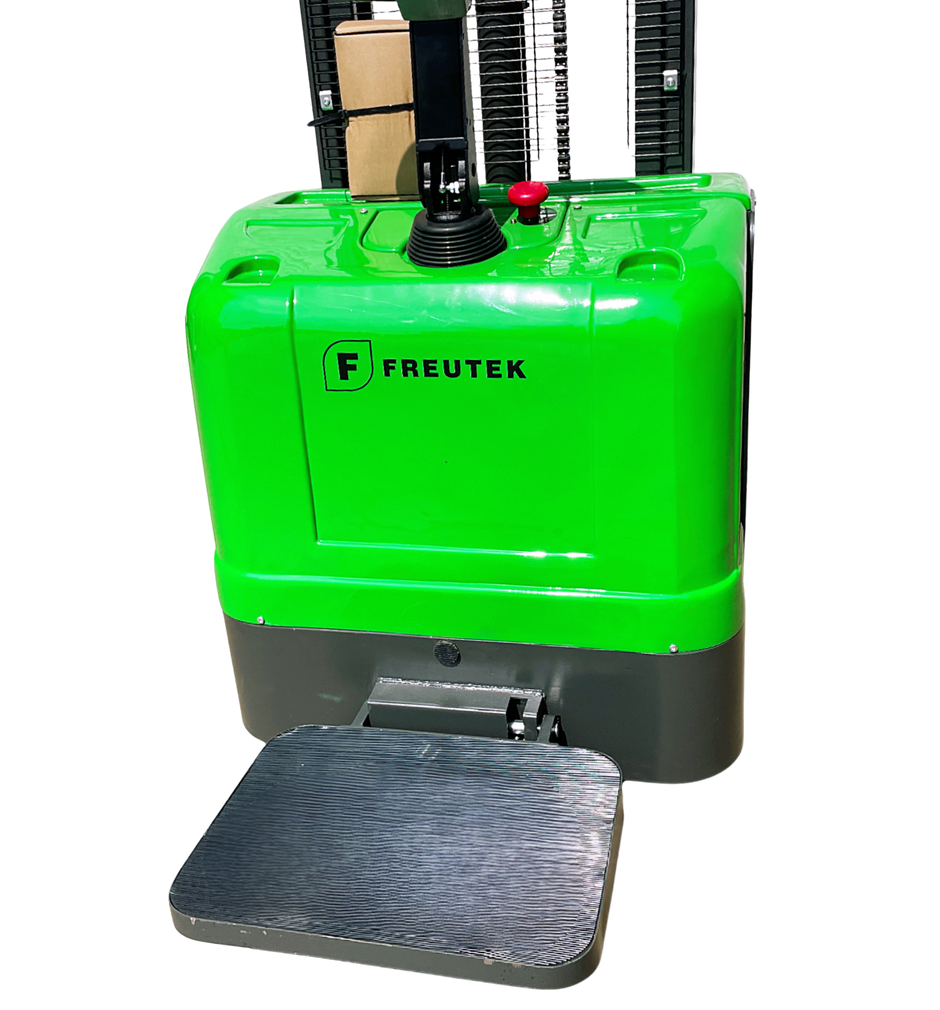

NNT0012 - Electric Stacker 2000kg - 3000mm with Platform

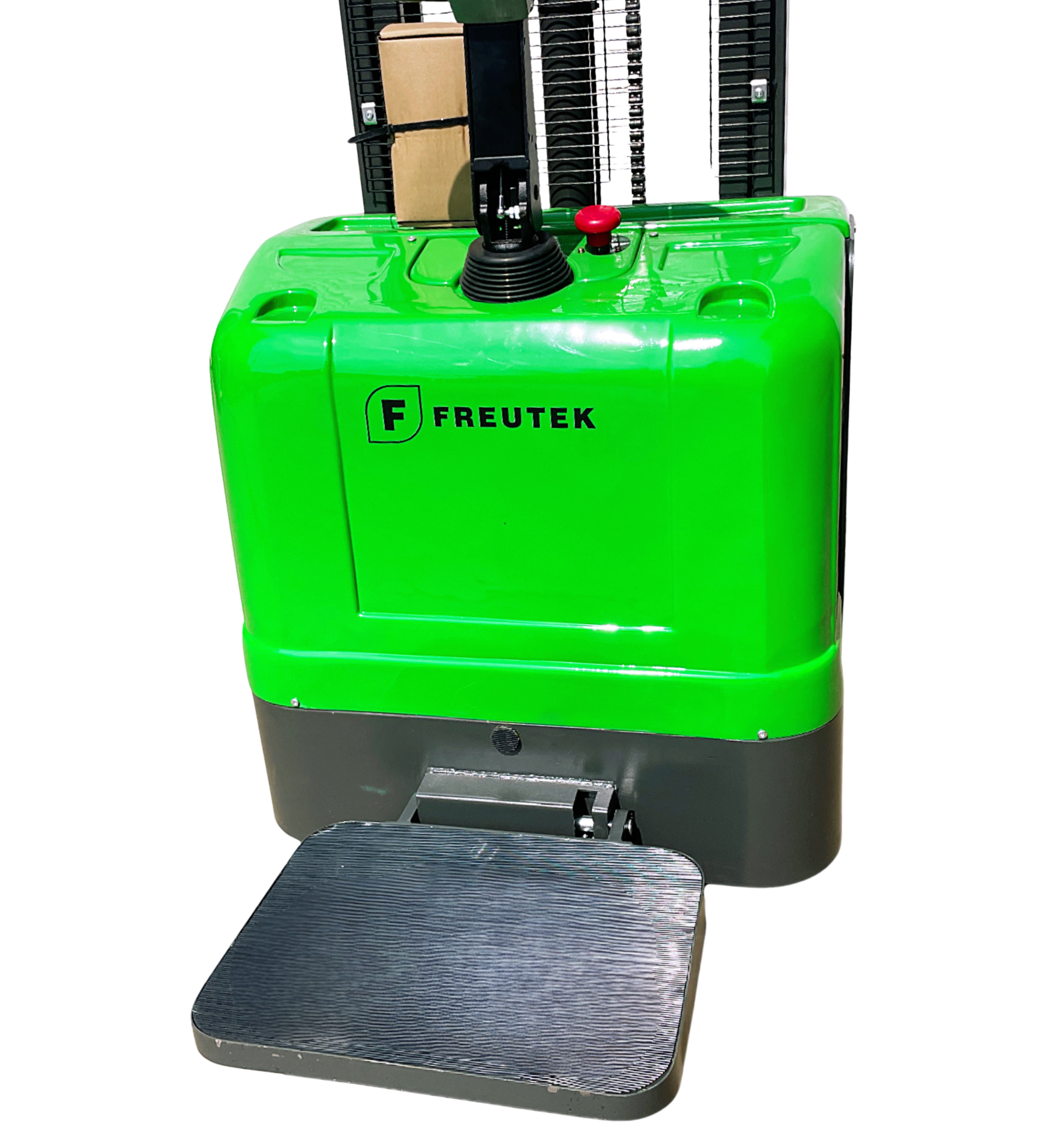

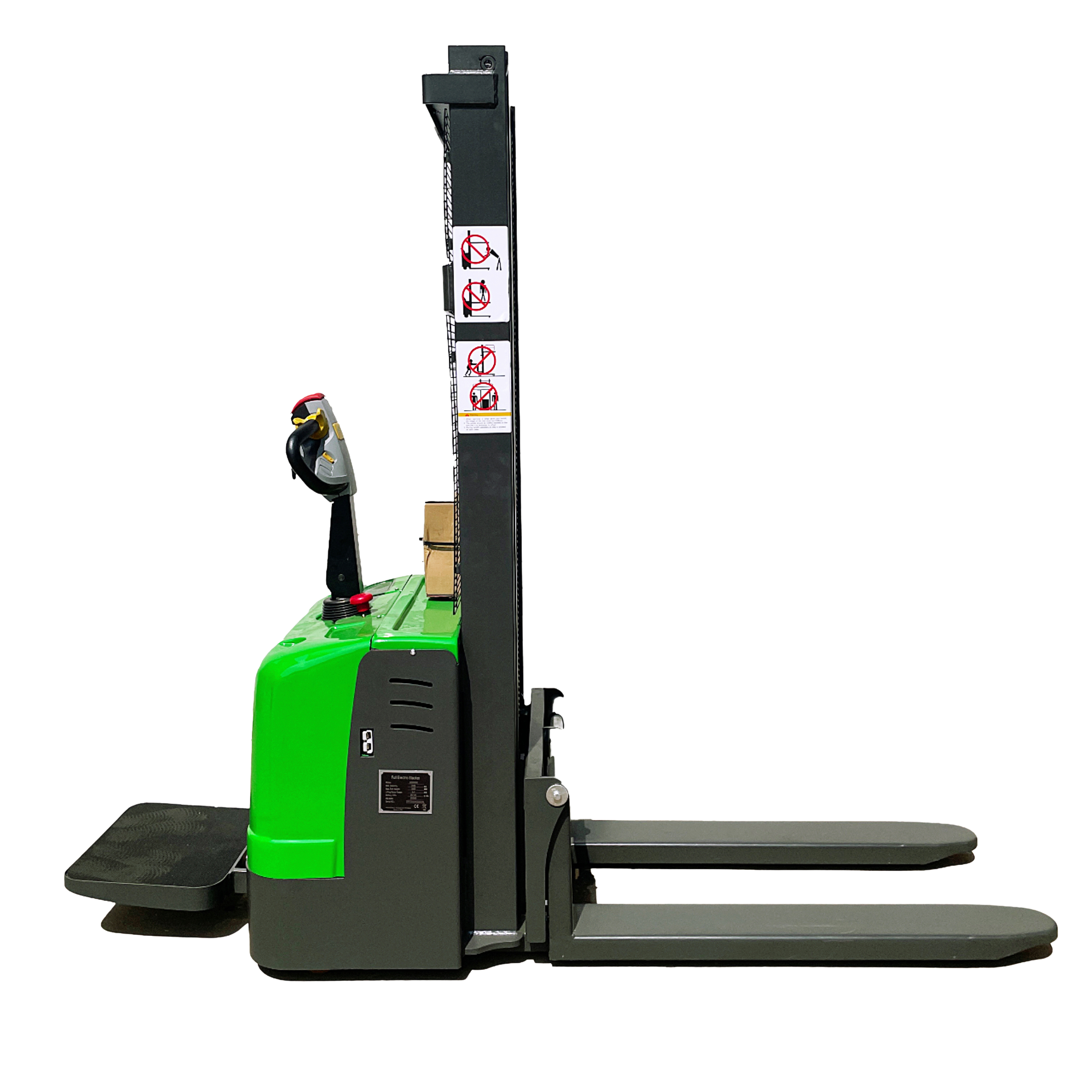

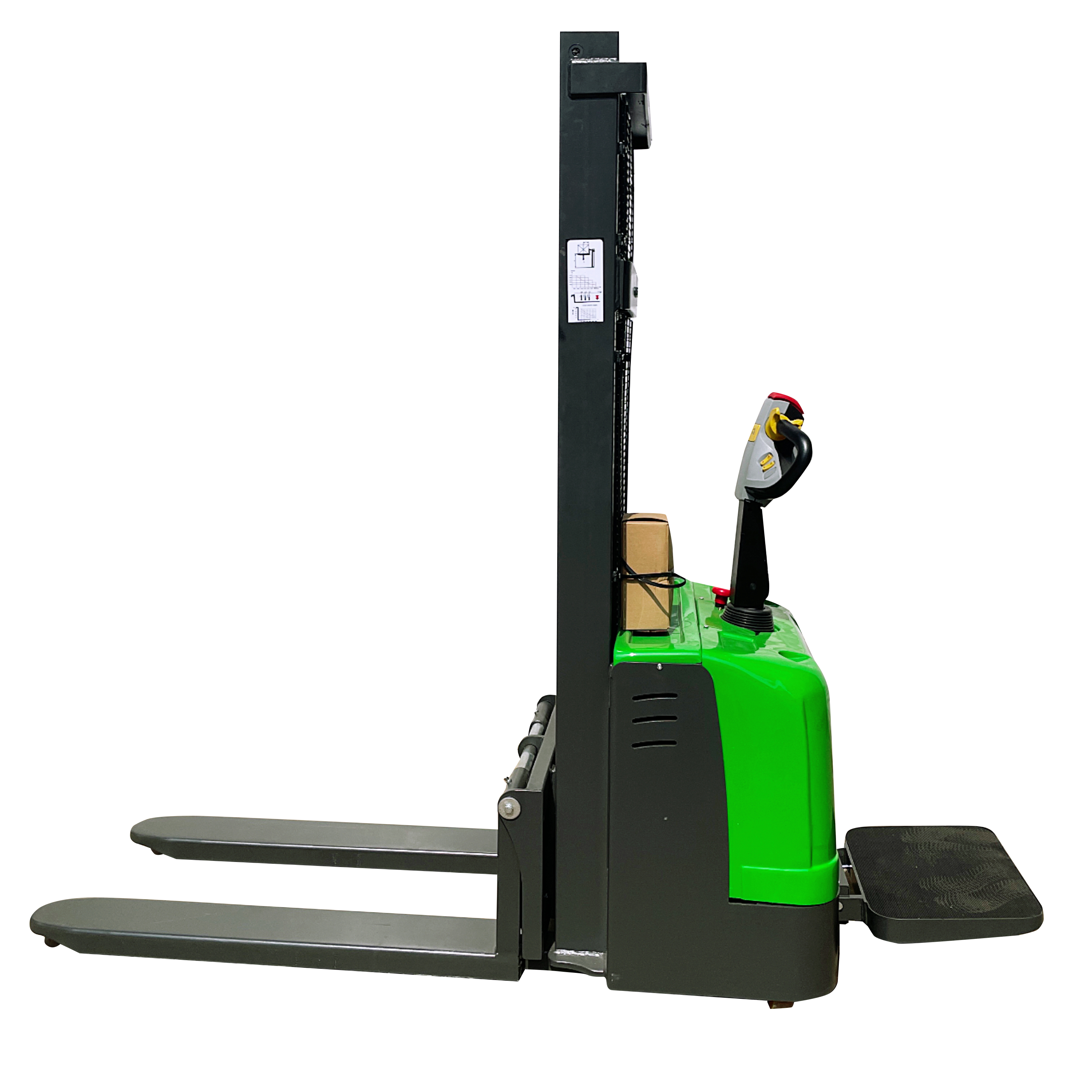

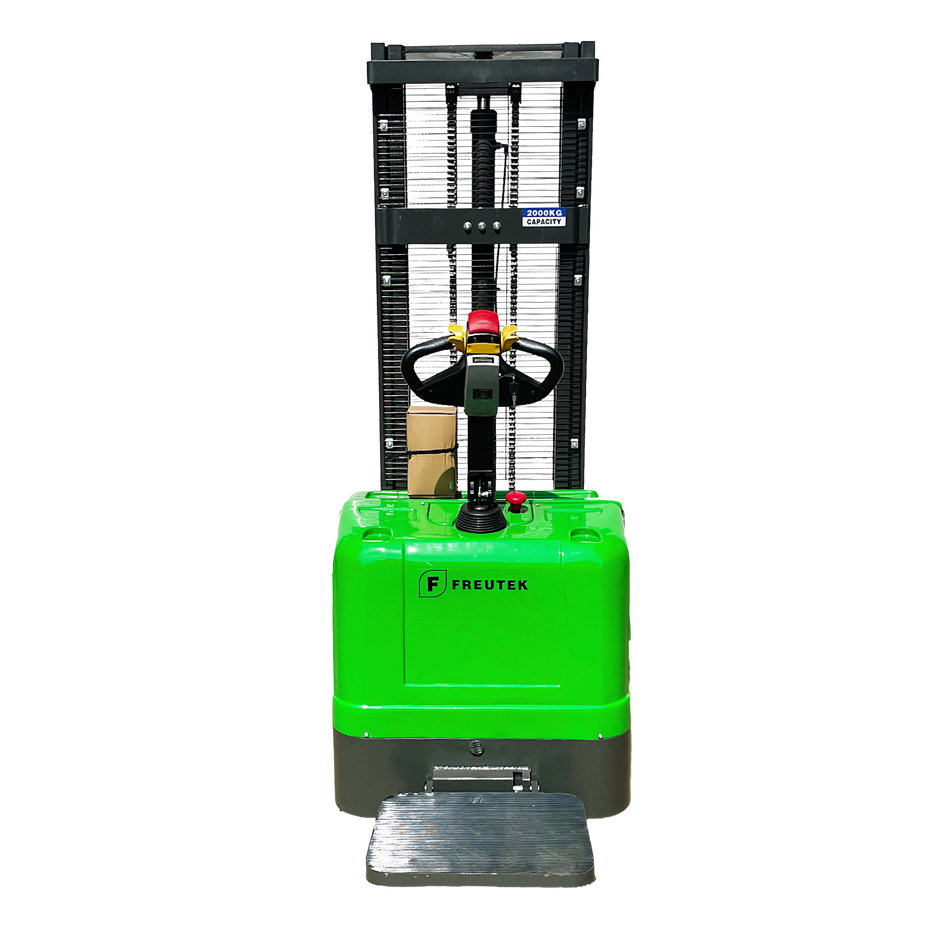

The NNT0012 electric pallet truck with platform is designed for the efficient and safe handling of heavy loads up to 2000 kg. Thanks to its robust construction and operator platform, it is ideal for warehouses, logistics centers, and industrial environments where high maneuverability and productivity are required. With a lift height of up to 3000 mm, this pallet truck ensures easy loading and unloading, while the maximum lift height of 3480 mm allows for optimal vertical space management. The 2.2 kW lift motor ensures a lifting speed of 0.1 m/s empty and 0.08 m/s fully loaded, while the 1.5 kW traction motor allows for a travel speed of up to 5.6 km/h empty. Equipped with polyurethane (PU) wheels for greater durability and smoothness, it has a turning radius of 1600 mm, ensuring excellent maneuverability even in confined spaces. The 12 V/120 Ah x2 battery ensures excellent operating autonomy. Perfect for industrial environments that require fast, safe, and efficient handling.

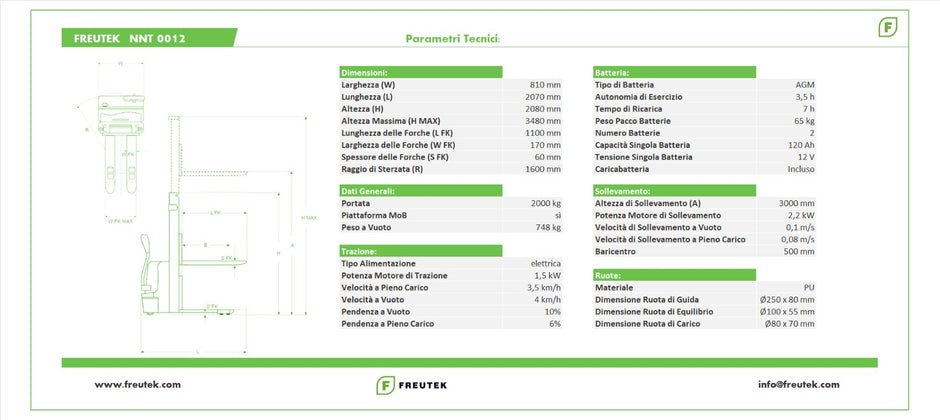

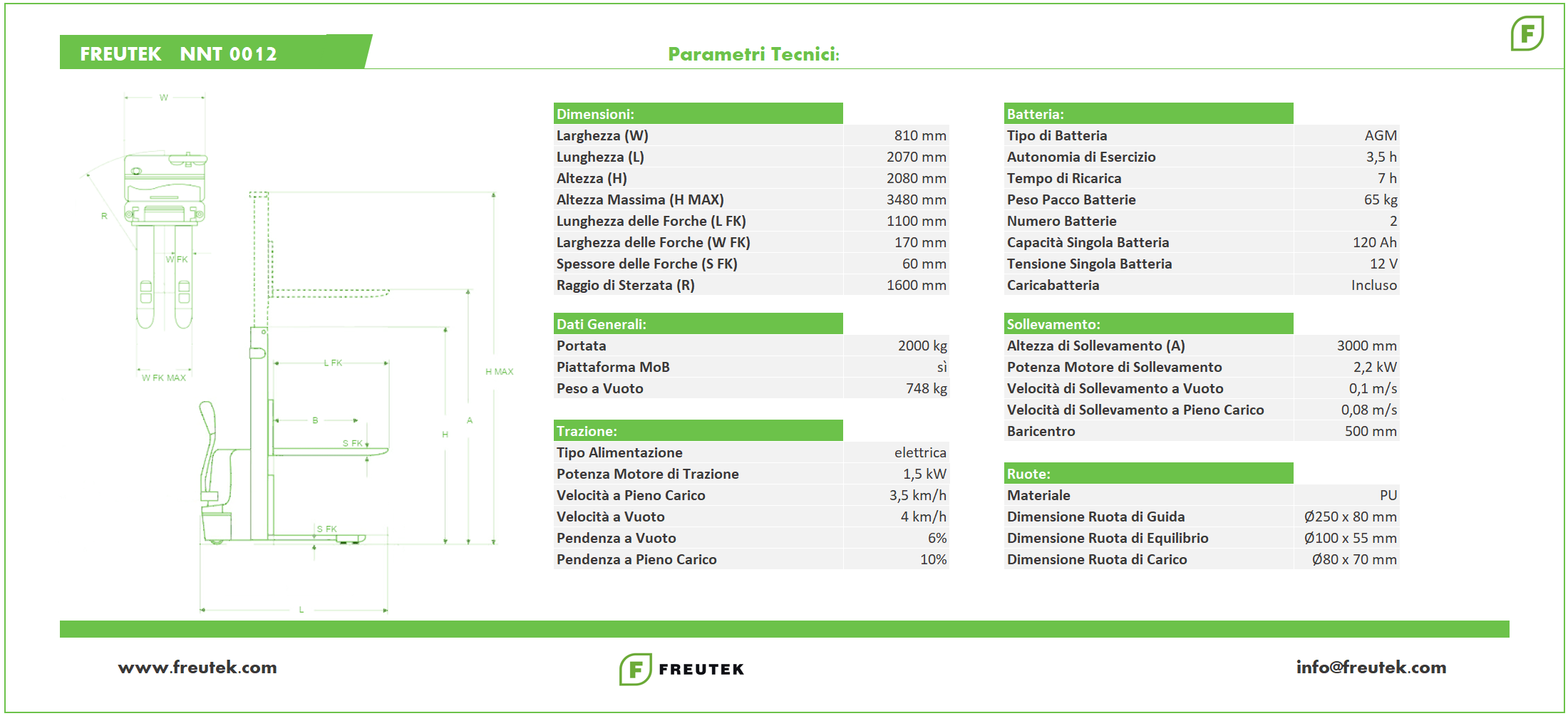

Technical specifications
Rated load 2000 kg
Distance from the center of the load 500 mm
Lifting height 3000 mm
Total height (lowered) 2080 mm
Maximum height (raised) 3480 mm
Handle height from ground 1440 mm
Polyurethane (PU) wheels
Guide wheel dimensions Ø 250×80 mm
Balancing wheel dimensions Ø 100×55 mm
Load wheel dimensions Ø 80×70 mm
Overall length (closed platform) 2070 mm
Total width 810 mm
Fork dimensions 60x170x1100 mm
Turning radius 1600 mm
Lifting speed (empty/full load) 0.1/0.08 m/s
Descent speed (full load) 0.15/0.12 m/s
Travel speed (full load) (loaded/unloaded) 3.5/4 km/h
Climbing capacity (empty/full load) 10/6%
Lifting motor 2.2 kW
Traction motor 1.5 kW
12V/120Ah battery x2
