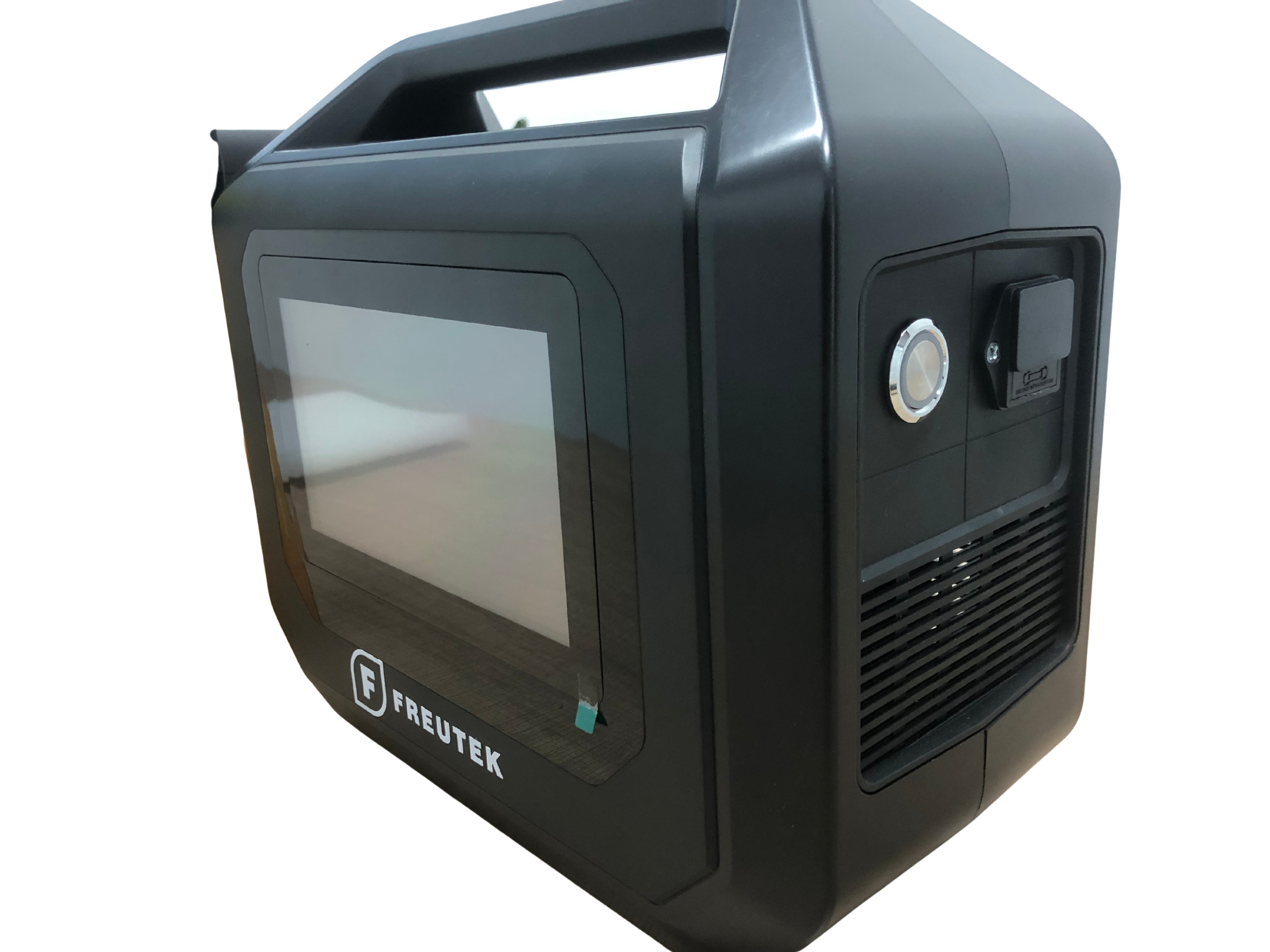

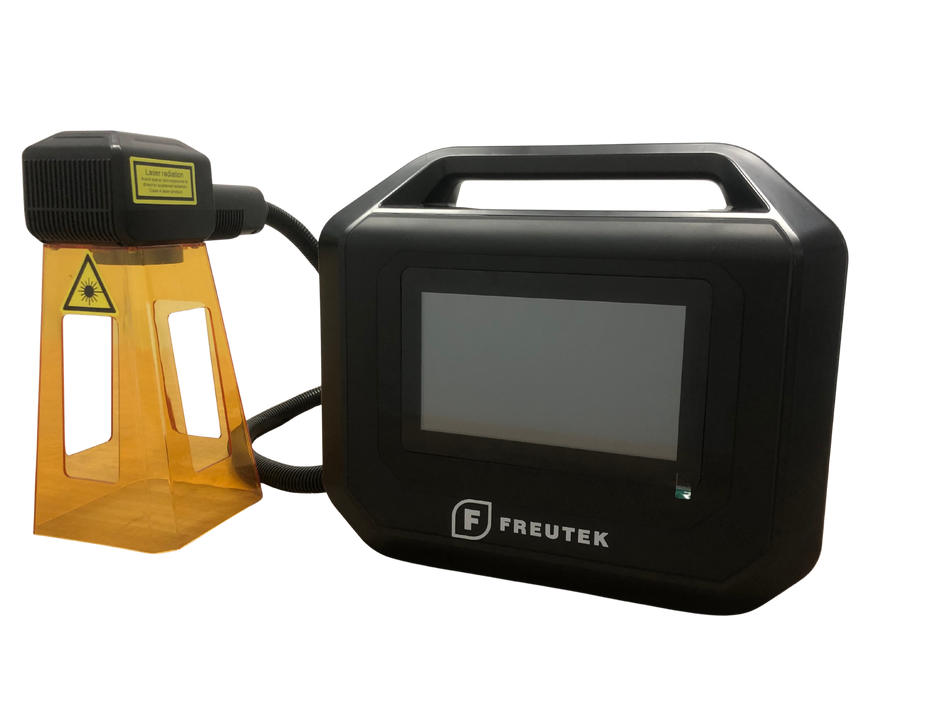

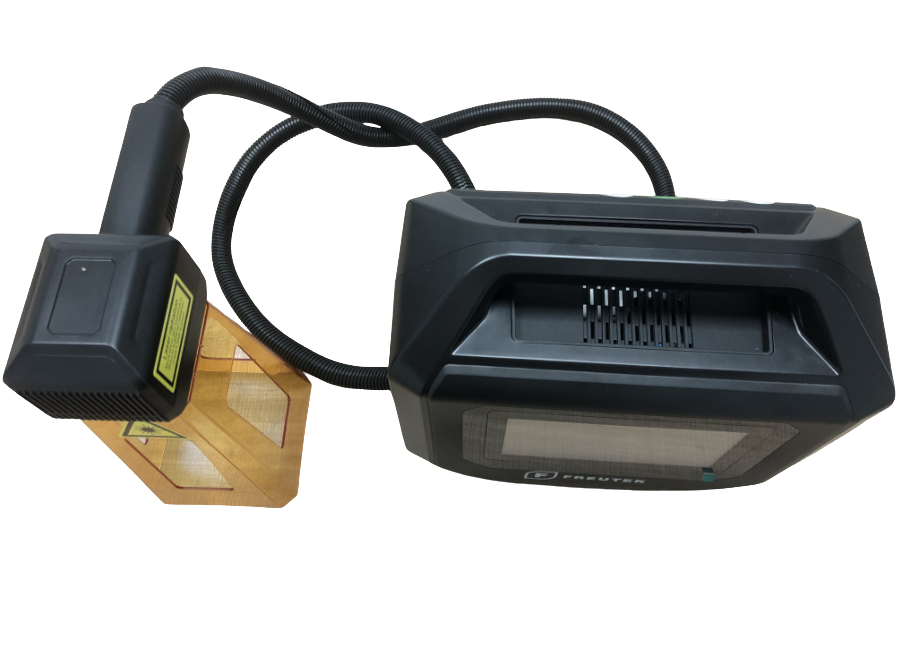

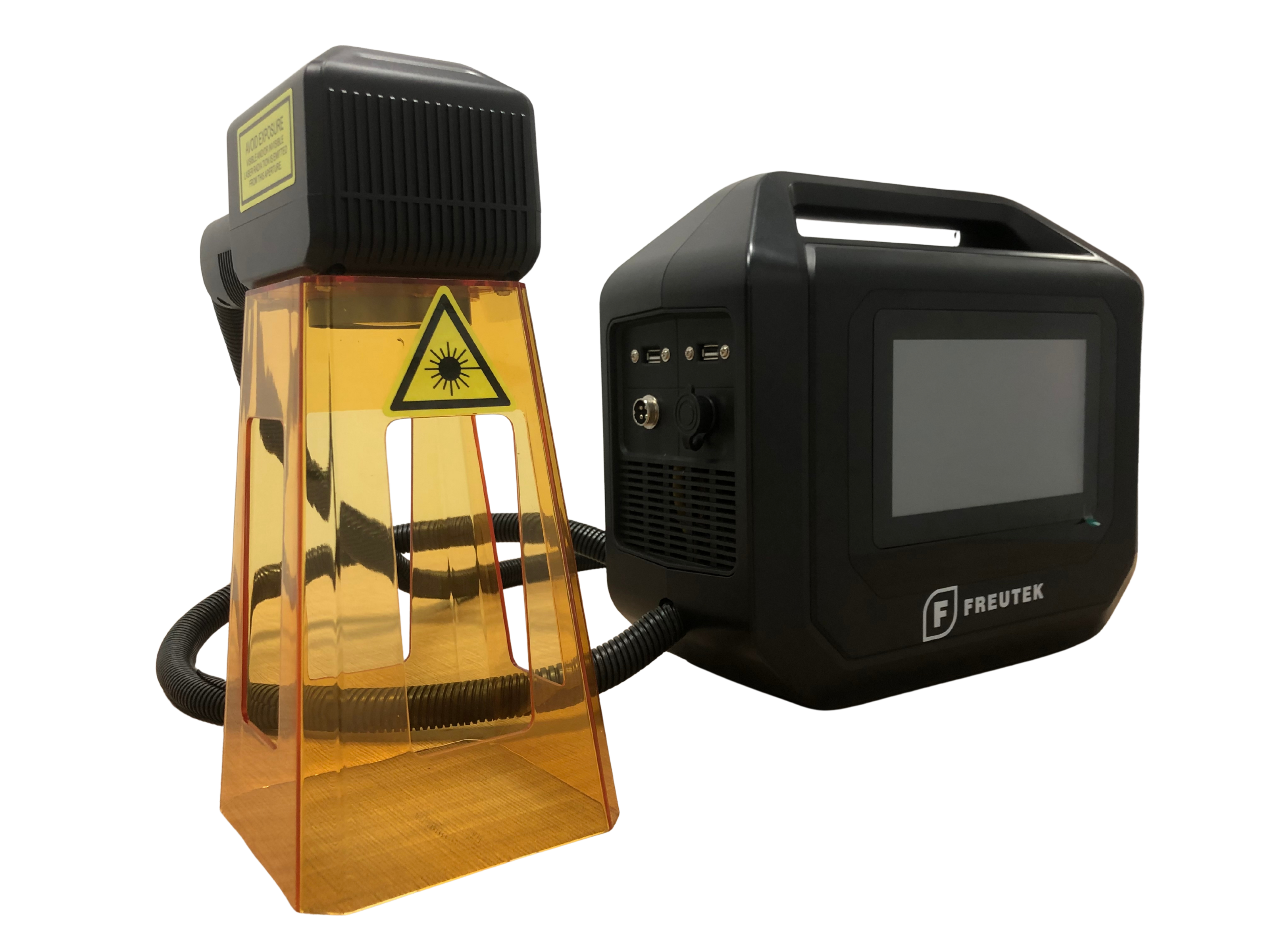

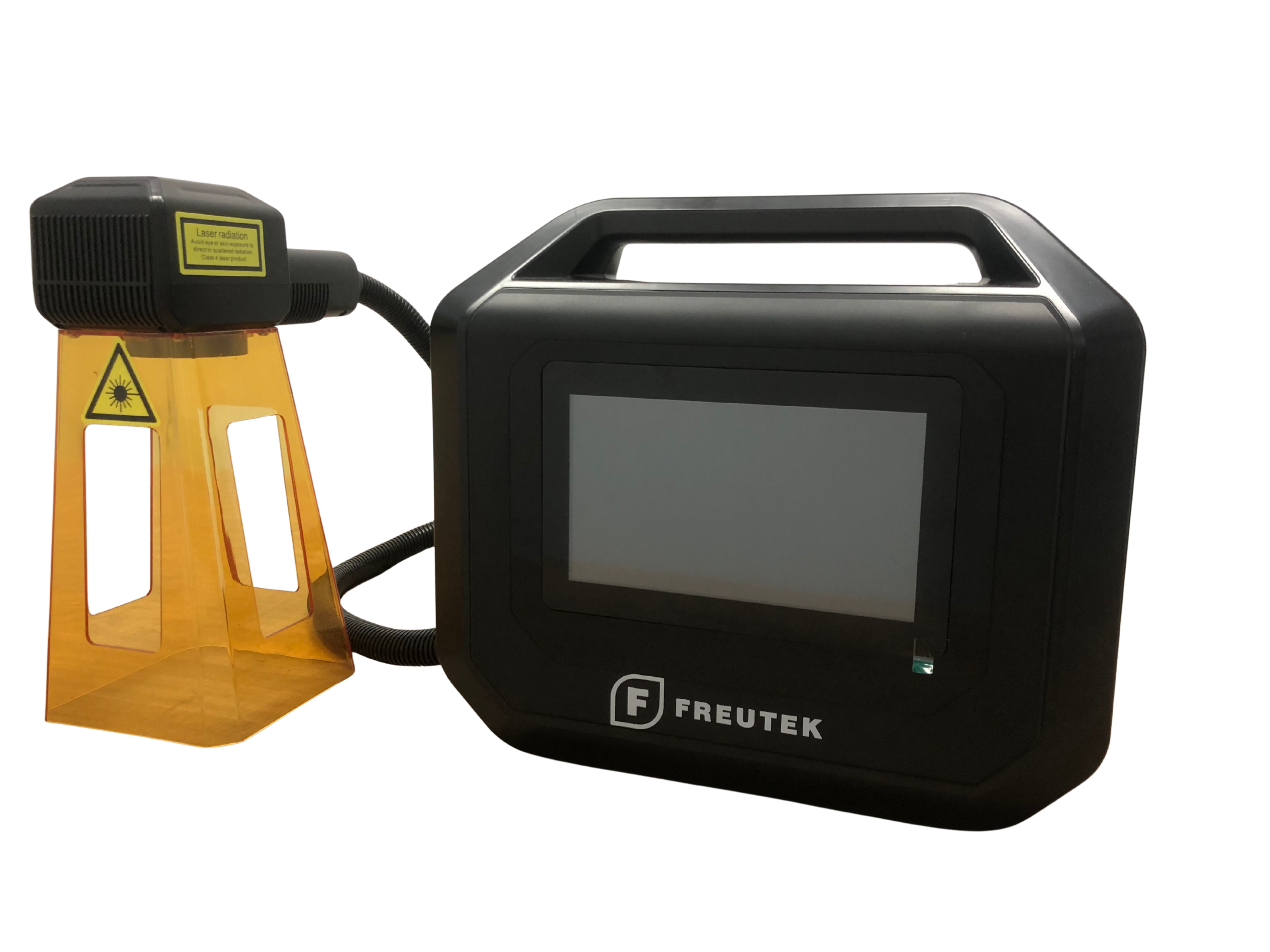

The 20W portable laser marker LMM0020 is an innovative tool for marking, engraving and personalizing metal and plastic materials, perfect for industrial and craft applications. Battery-powered, it offers up to 3 hours of autonomy, making it ideal for mobile use without the need for a fixed power supply.
Main Features
✅ Portable and cordless, ideal for use in workshops, construction sites and production environments.
✅ 20W power, suitable for precise marking and light engraving.
✅ Working field 110 x 110 mm, with the possibility of variation based on the installed lens.

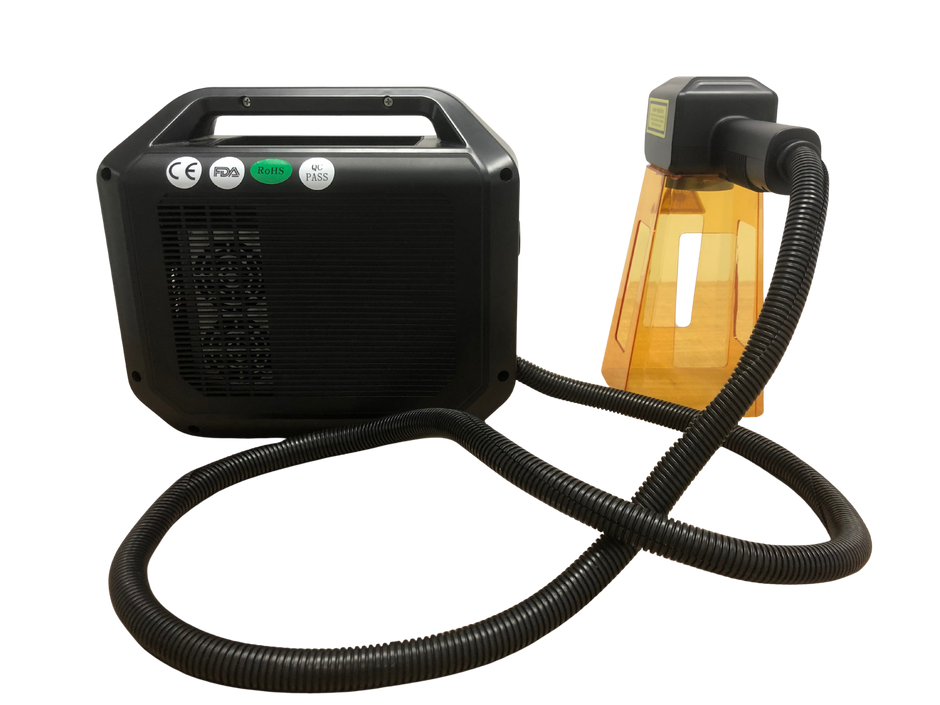

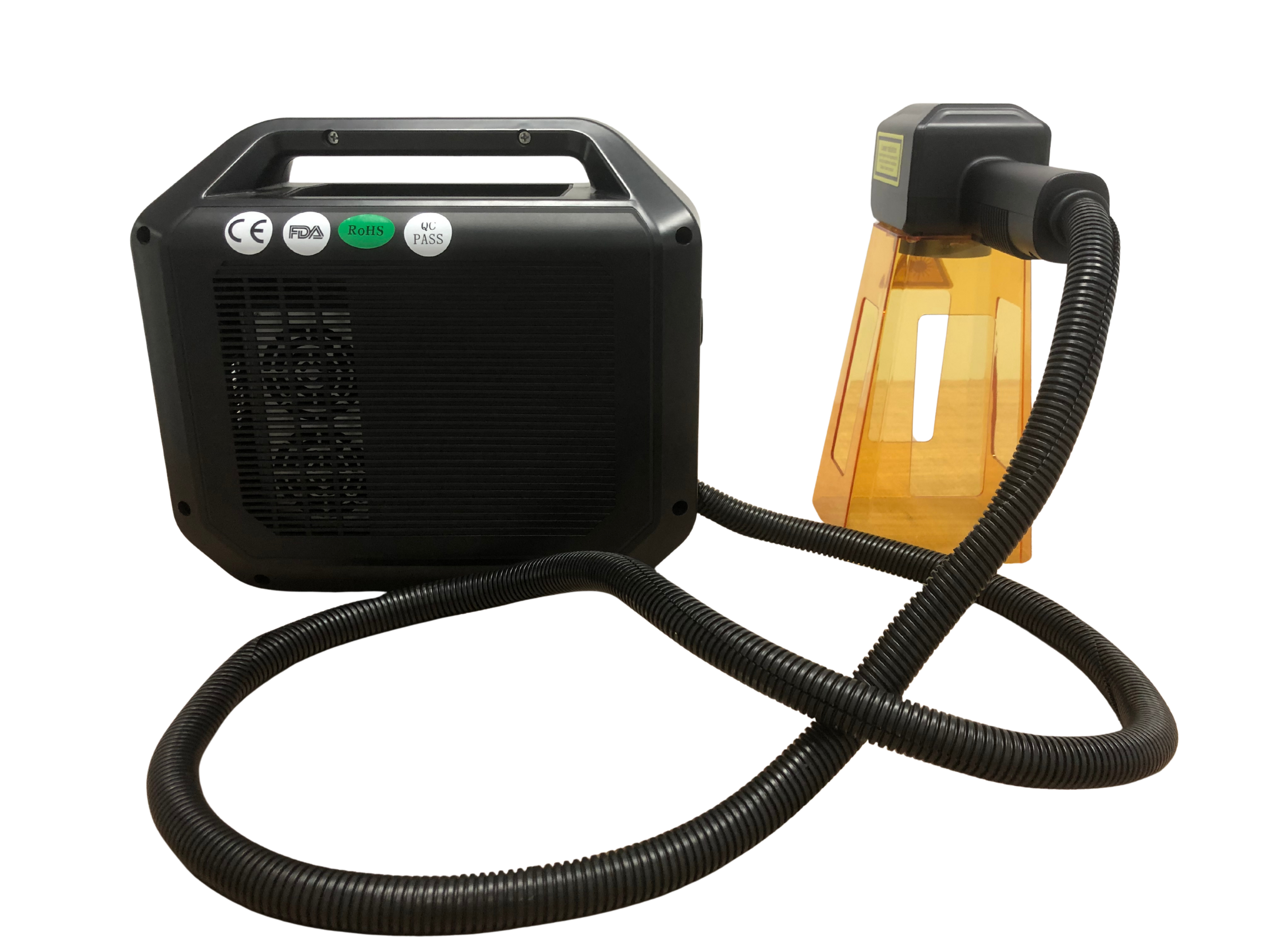

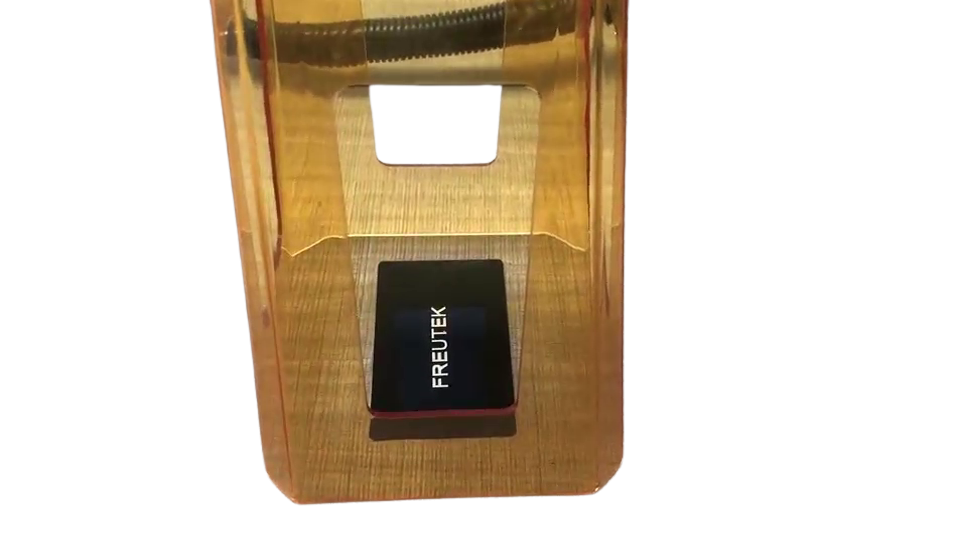

✅ Protective cone for the marking area, ensuring safety and precision.

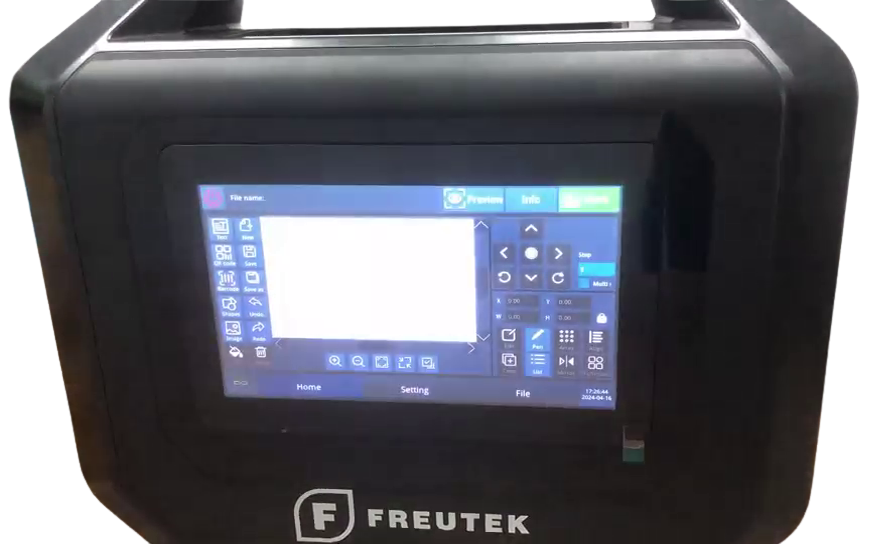

✅ Integrated computer with Linux system and 7” touch-screen for intuitive management.

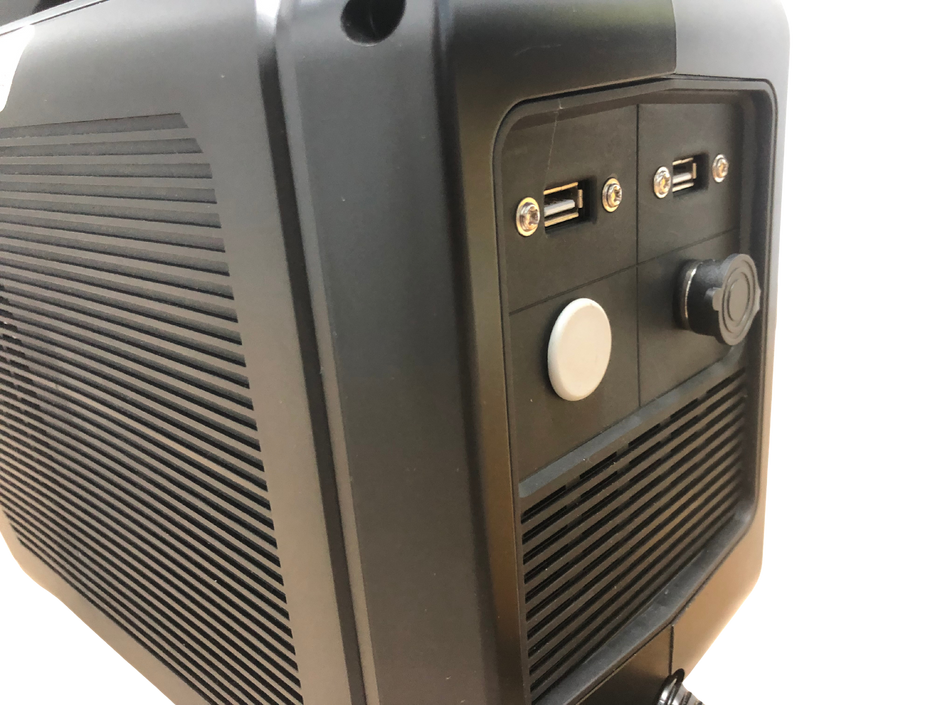

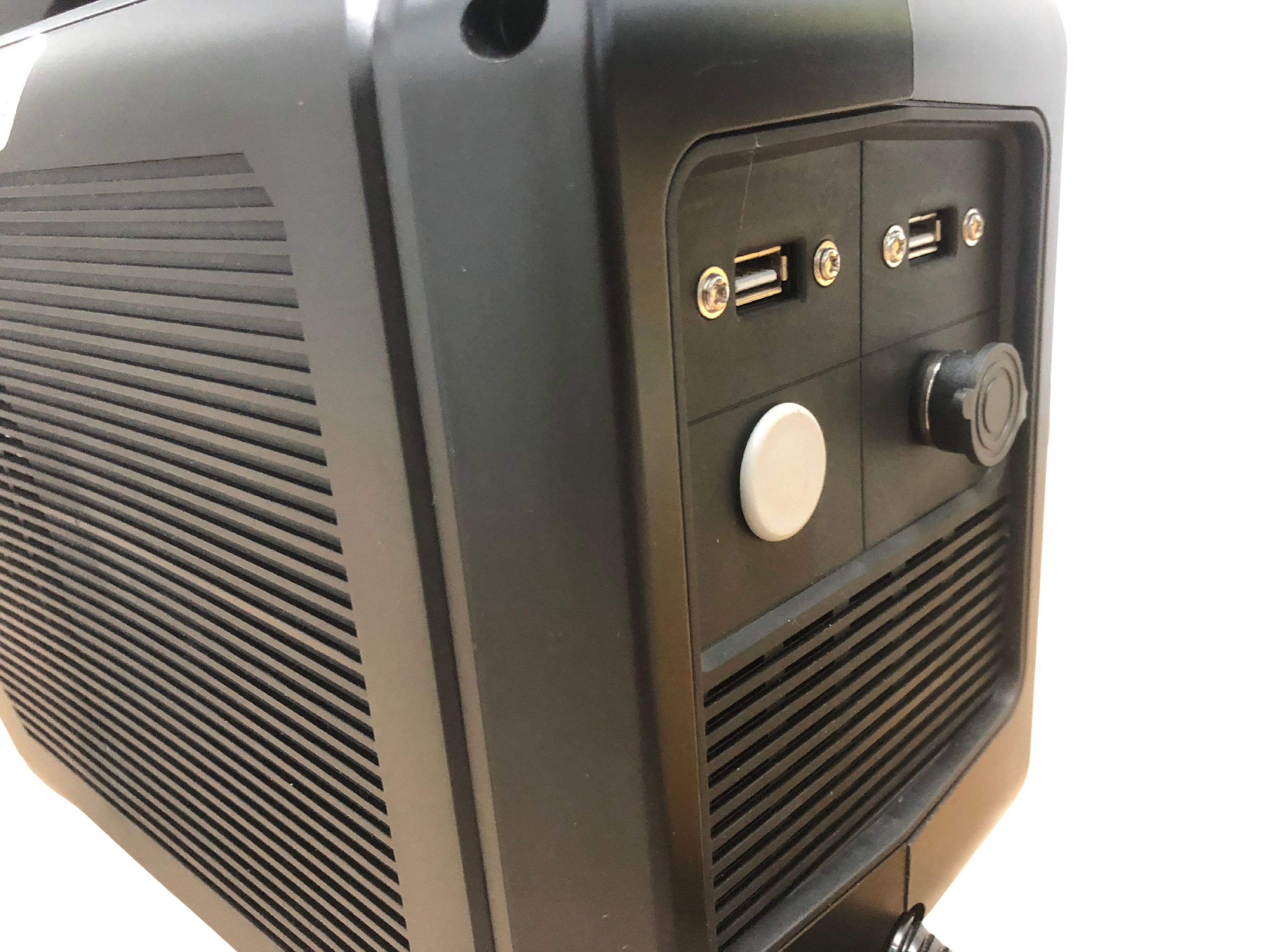

✅ USB 2.0 interface, for quick transfer of projects and files.
✅ Air-cooled, eliminating the need for complex maintenance.
✅ 220V power supply with 300W absorption, with the option of battery use for up to 3 hours.
Workable Materials
🔹 Metals: Stainless steel, carbon steel, aluminum, copper, brass, titanium, silver, gold.
🔹 Metal alloys: magnesium, zinc and other treated materials.
🔹 Industrial plastics*: ABS, PVC, PE, PP, HDPE, PC.
🔹 Anodized, painted and plated surfaces*.
Applications
✔ Direct marking on metal and plastic components
✔ Personalization of tools, plates and utensils
✔ Industrial marking of QR codes, serial numbers and logos
✔ Engraving on irregular surfaces thanks to the portable design
Advantages of Fiber Laser Technology
🔹 Indelible marking, resistant to solvents, abrasions and high temperatures.
🔹 Extreme precision with details down to 0.02 mm.
🔹 Use without the need for fixed connections, thanks to the integrated battery.
🔹 Low operating costs, without consumables or frequent maintenance.
🔹 Easy to transport, perfect for on-site work.
Technical Specifications
Laser Power: 20W
Laser Type: Fiber Optic
Wavelength: 1064nm
Working field: *110 x 110 mm (variable depending on the lens installed)
Focus: Marking area protection cone
Operating System: Embedded Linux
Display: 7” Touch-screen
Connectivity: USB 2.0 for data transfer
Cooling: Air
Power supply: 220V, absorption 300W
Battery life: Up to 3 hours
*a preliminary test on a minimum area is recommended for each new material to be put into use
