LMM0008 - All-in-One Fiber Laser Marker 50W, 110 x 110 mm
Increments of 1
Minimum of 1
Maximum of
Sale price
€6.974,00 EUR
-100%
Regular price
€0,00 EUR
Regular price
€6.974,00 EUR
Unit price
per
Couldn't load pickup availability

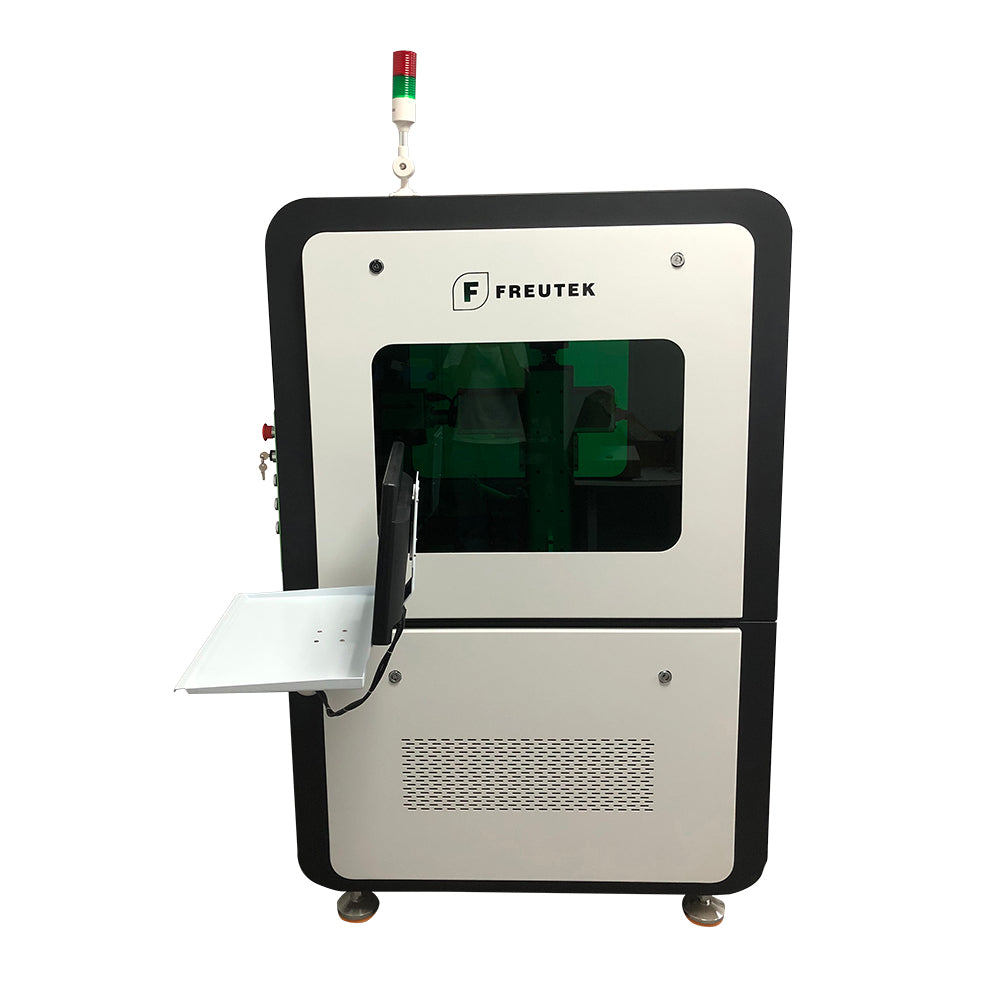

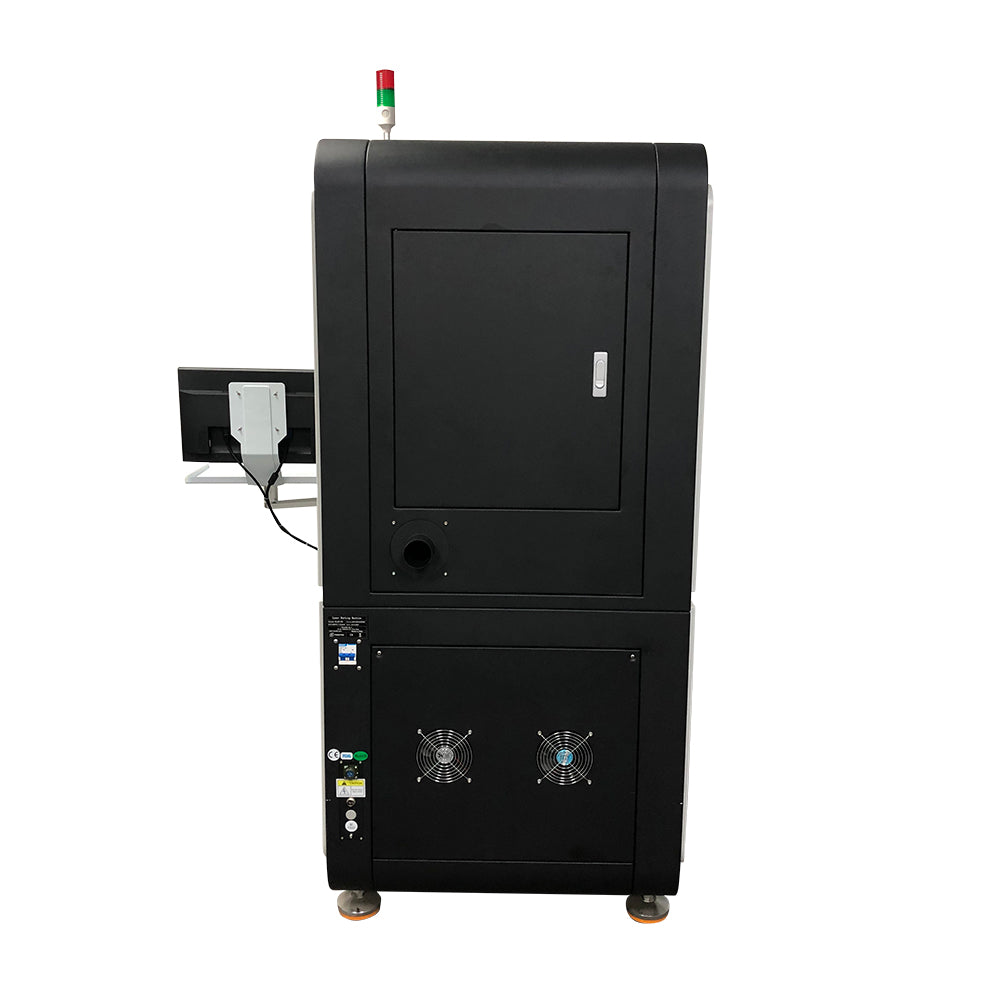

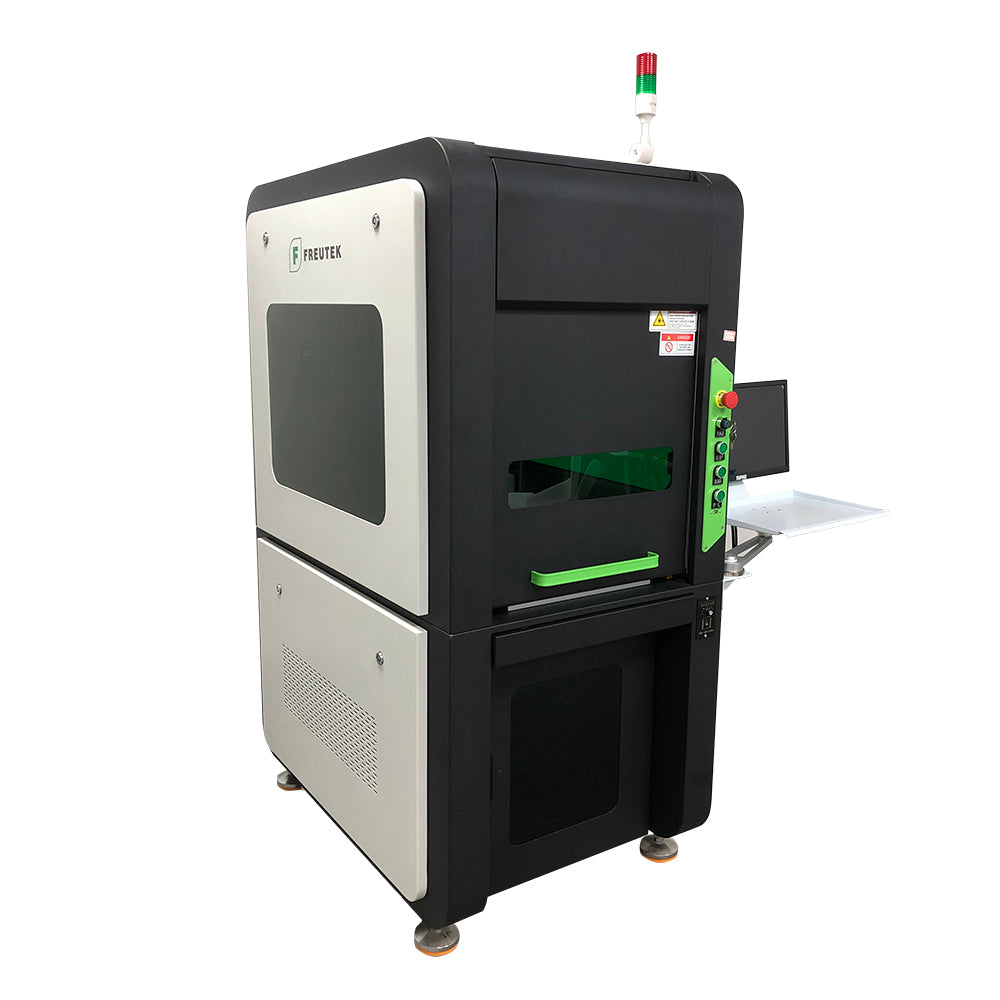

The 50W LMM0008 fiber laser marking system is designed for high-precision marking, engraving, and cutting on metals and plastics. Its high power output allows for deep engraving and cutting up to 1.2 mm, making it ideal for advanced industrial applications.
Main Features
✅ Wide Compatibility: Works on stainless steel, aluminum, copper, titanium, gold, silver, special alloys, as well as some technical plastics such as ABS, PVC, PE, PC, HDPE and rubber.
✅ Detailed marking: Thanks to the extreme precision of 0.02 mm, it is perfect for engraving logos, barcodes, QR codes and serial numbers.
✅ Expandable marking field option: Standard area 110 x 110 mm, with option up to 300 x 300 mm.
✅ Cutting materials up to 1.2 mm: ideal for deep customization and processing on metal sheets.
✅ Safety enclosure and dust extraction: The fully enclosed system traps fumes and dust, ensuring a clean working environment.
✅ PC and software included: dedicated software for managing and programming markings.
Technical Specifications
Laser Power: 50W
Wavelength: 1064 nm
Marking field: 110 x 110 mm (optional up to 300 x 300 mm)
Minimum line thickness: 0.02 mm
Engraving/Cutting Depth: Up to 1.2mm
Workable materials: Ferrous and non-ferrous metals, technical plastics
Power supply: 220V
Included: PC and dedicated software
Perfect for machine shops, industrial companies and specialized laboratories, this system guarantees efficiency, precision and versatility, offering high quality processing on a wide range of materials.
Available on request
✔ D69 rotary axis for cylinders up to 69 mm

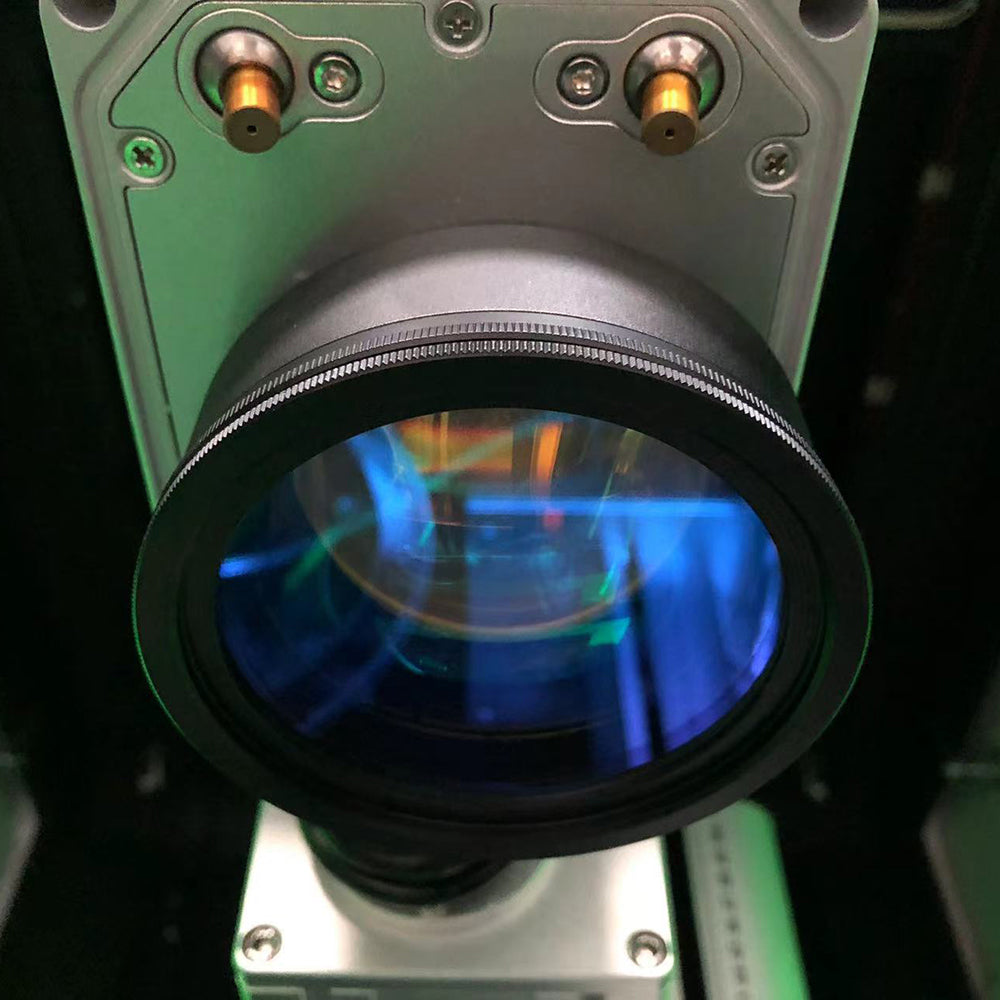

✔ F160 lens for an increased working field of 150 x 150 mm
✔ Smoke extraction system (always present)
✔ Precision clamp for marking irregularly shaped objects
*a preliminary test on a minimum area is recommended for each new material to be put into use
| Weight | 370 kg |
| Length | 1260 mm |
| Length | 940 mm |
| Height | 2000 mm |
