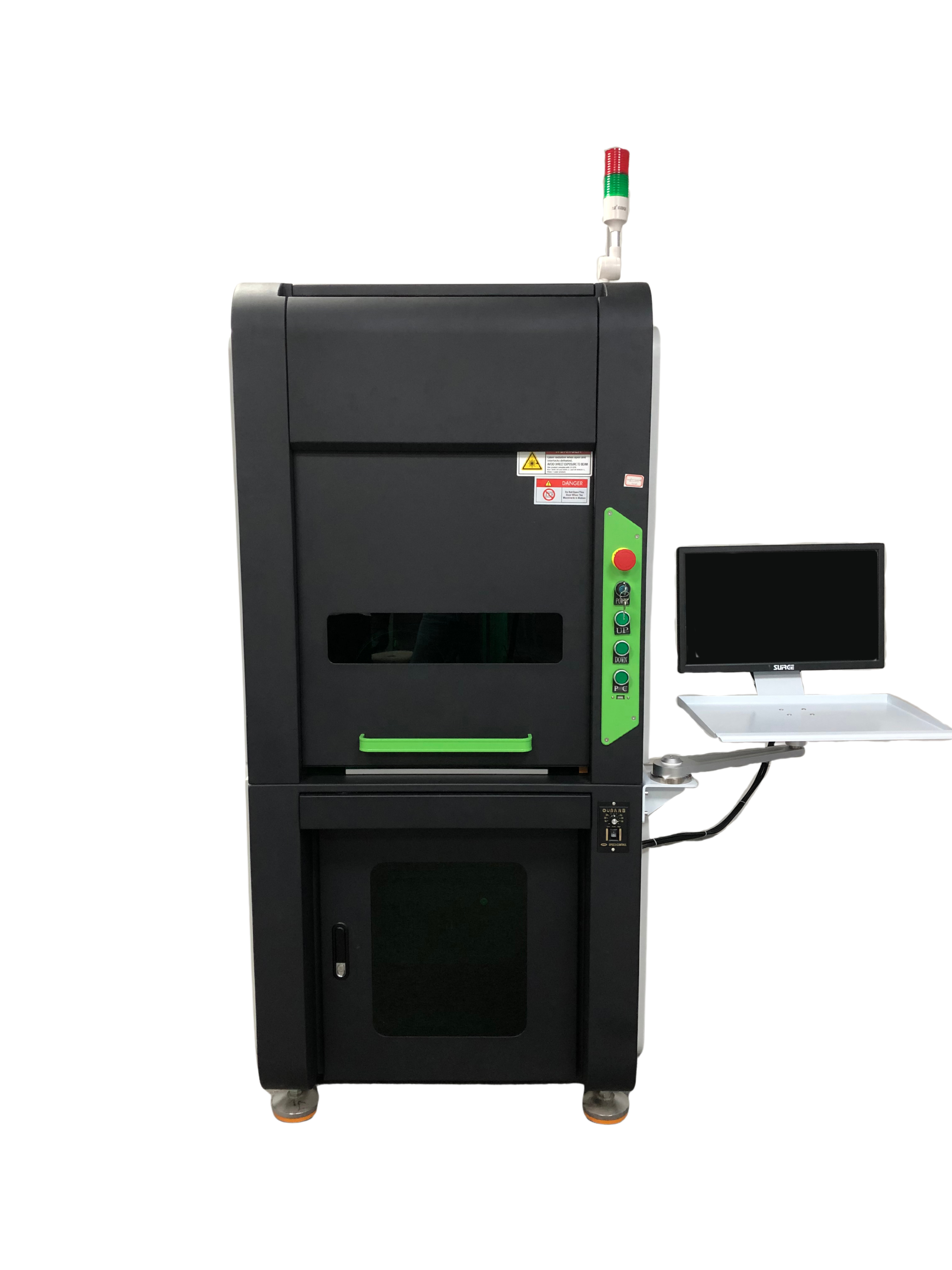

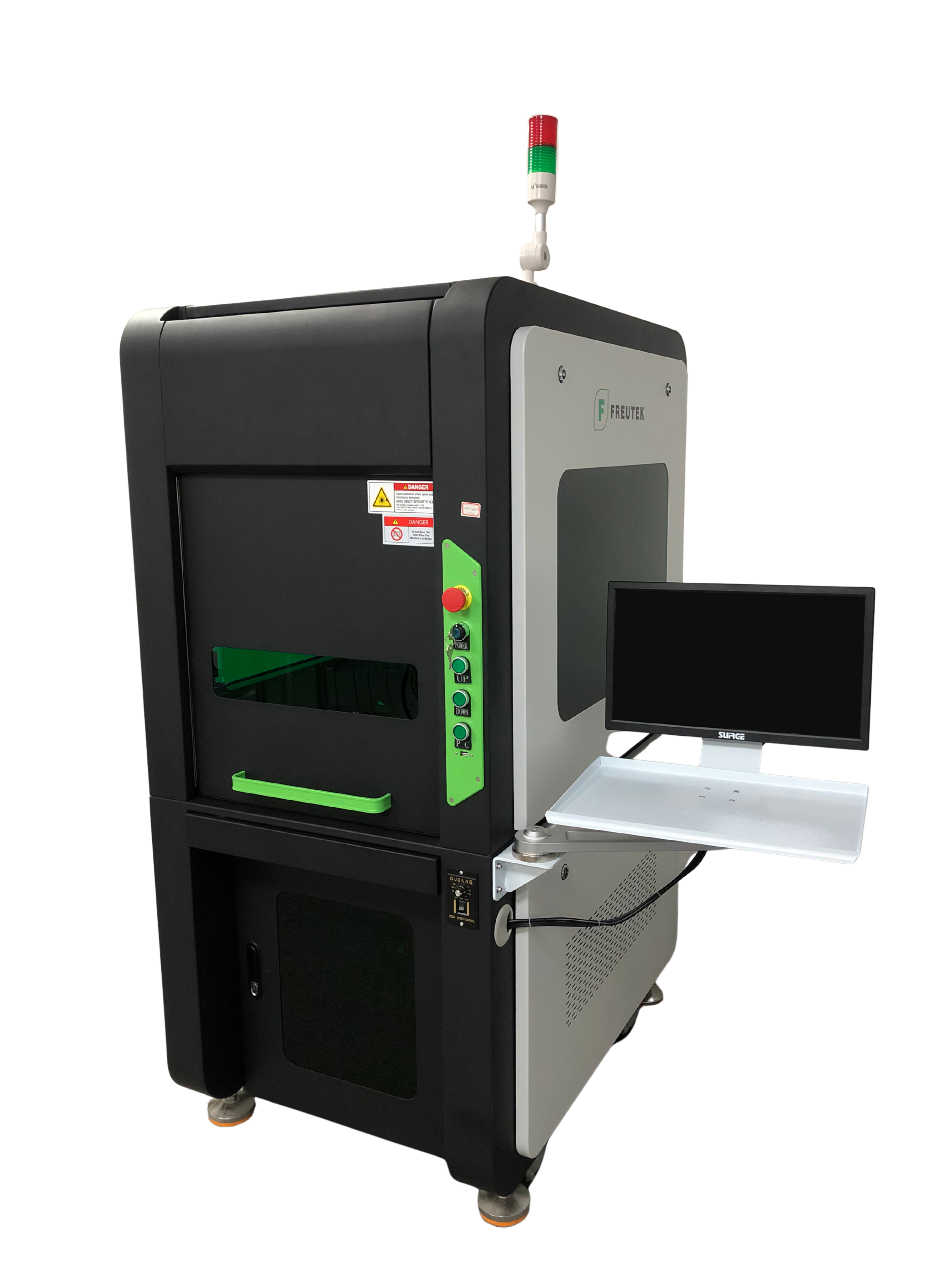

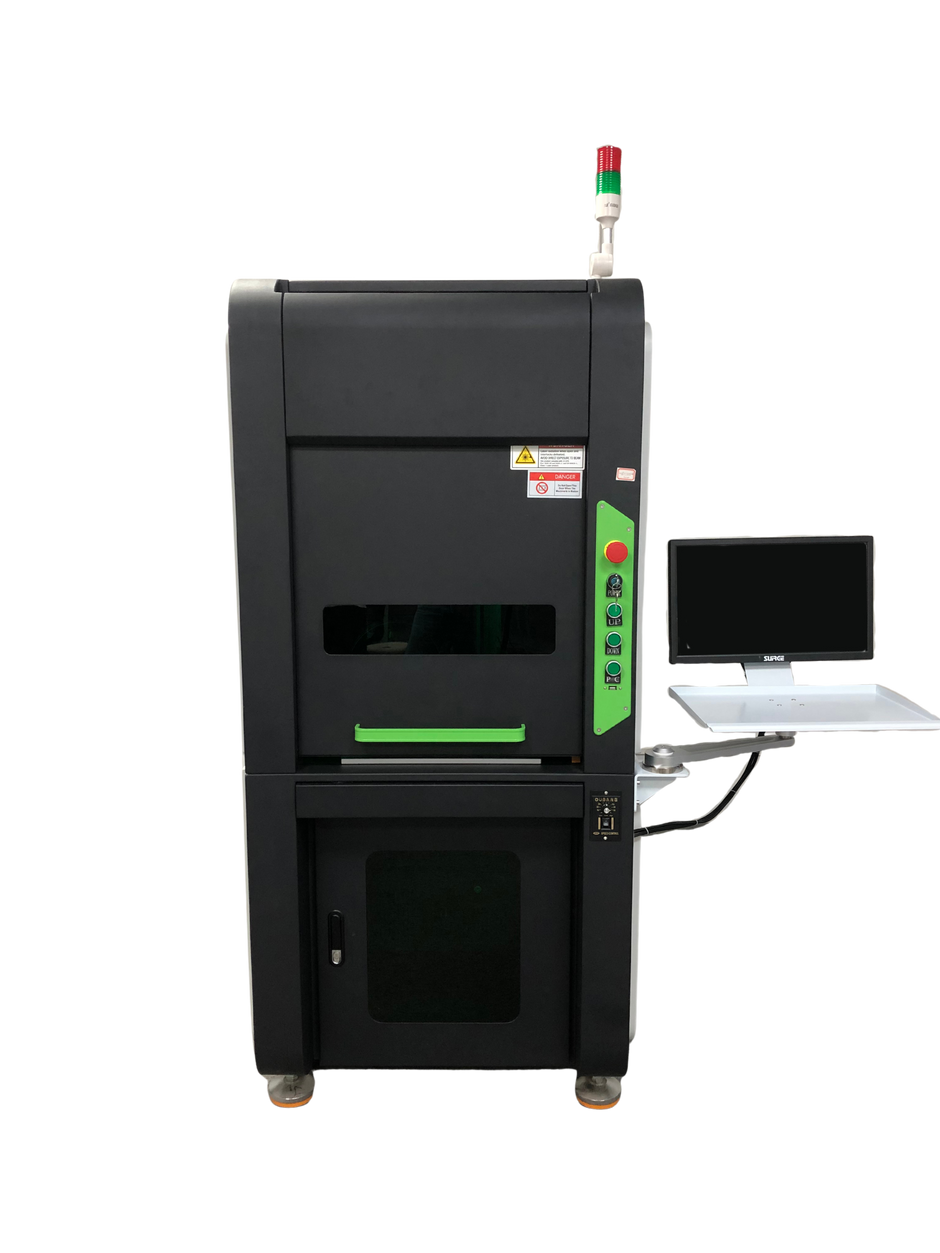

The 30W LMM0007 fiber laser marking system is the ideal solution for high-precision marking, engraving, and cutting on metals and plastics. Equipped with a safety enclosure, it ensures a clean and safe work environment by controlling fumes and dust produced during the machining process.
Main Features
✅ Material versatility: Engraves and marks stainless steel, aluminum, copper, titanium, gold, silver and alloys, as well as some plastics* such as ABS, PVC, PE, PC and rubber.
✅ Extreme precision: minimum line thickness of 0.02 mm, ideal for details and micro engravings.
✅ Cutting function: Thanks to the power of 30W, it is capable of engraving and cutting metal surfaces up to 0.5 mm thick.
✅ Software and PC included: Intuitive interface for managing logos, QR codes, barcodes and serial numbers.

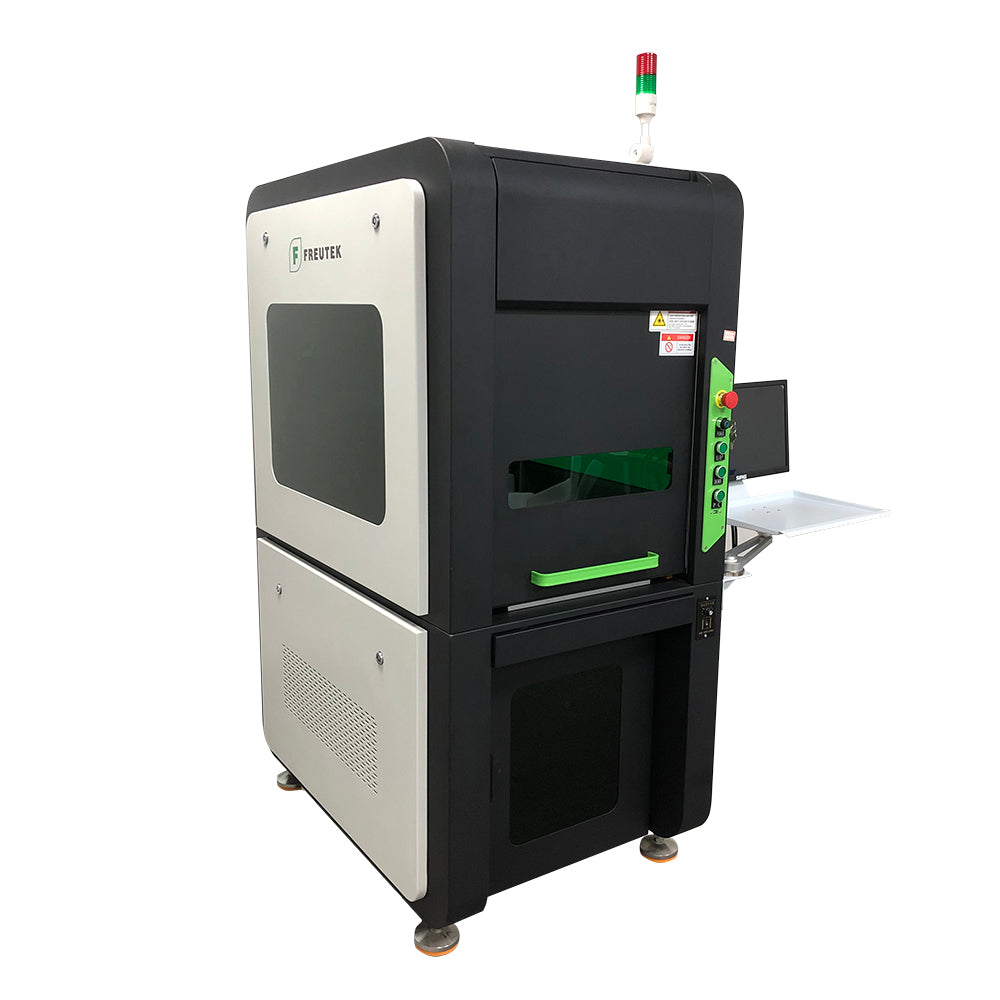

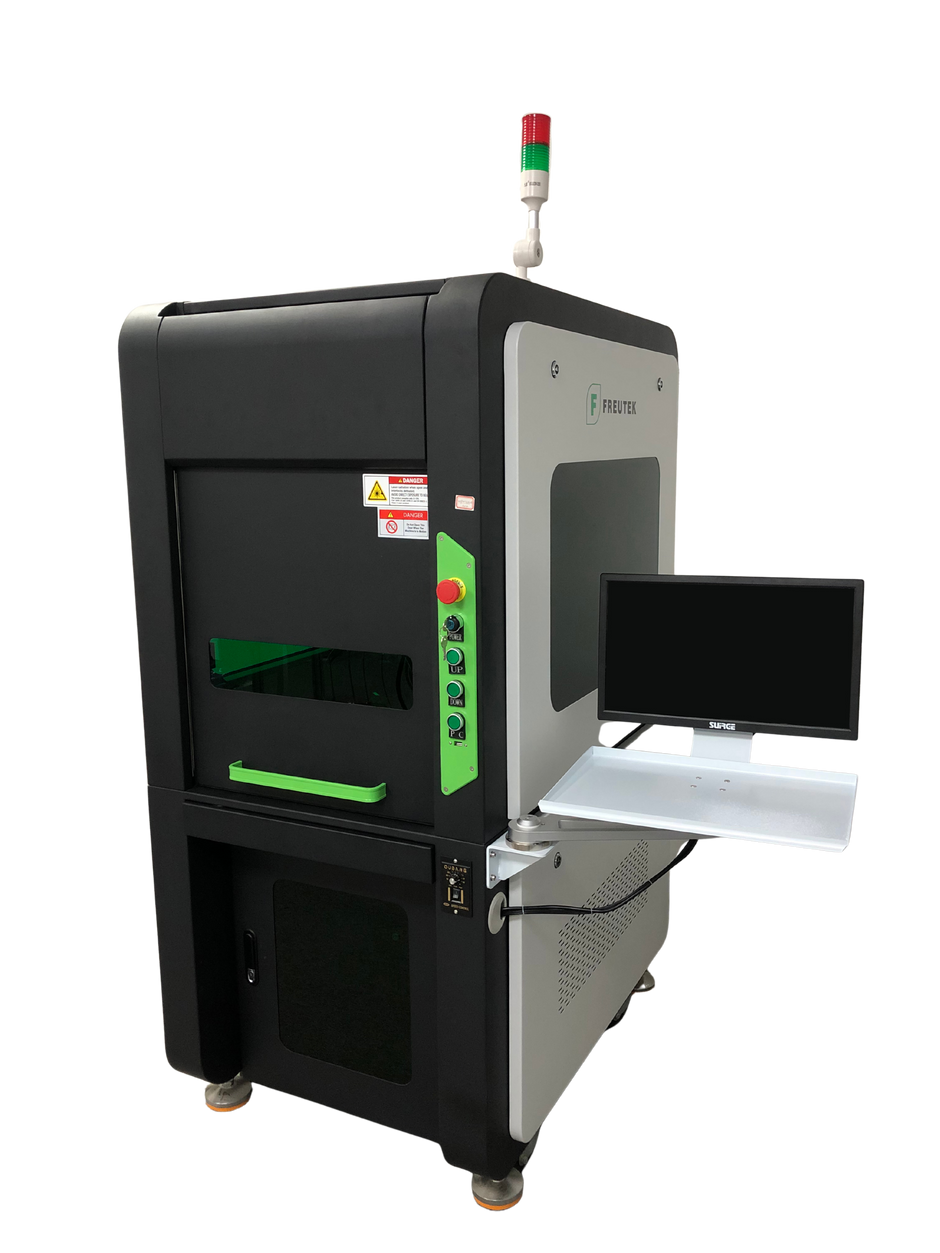

✅ Compact and safe design: closed case with motorized vertical axis for convenient and precise operation.

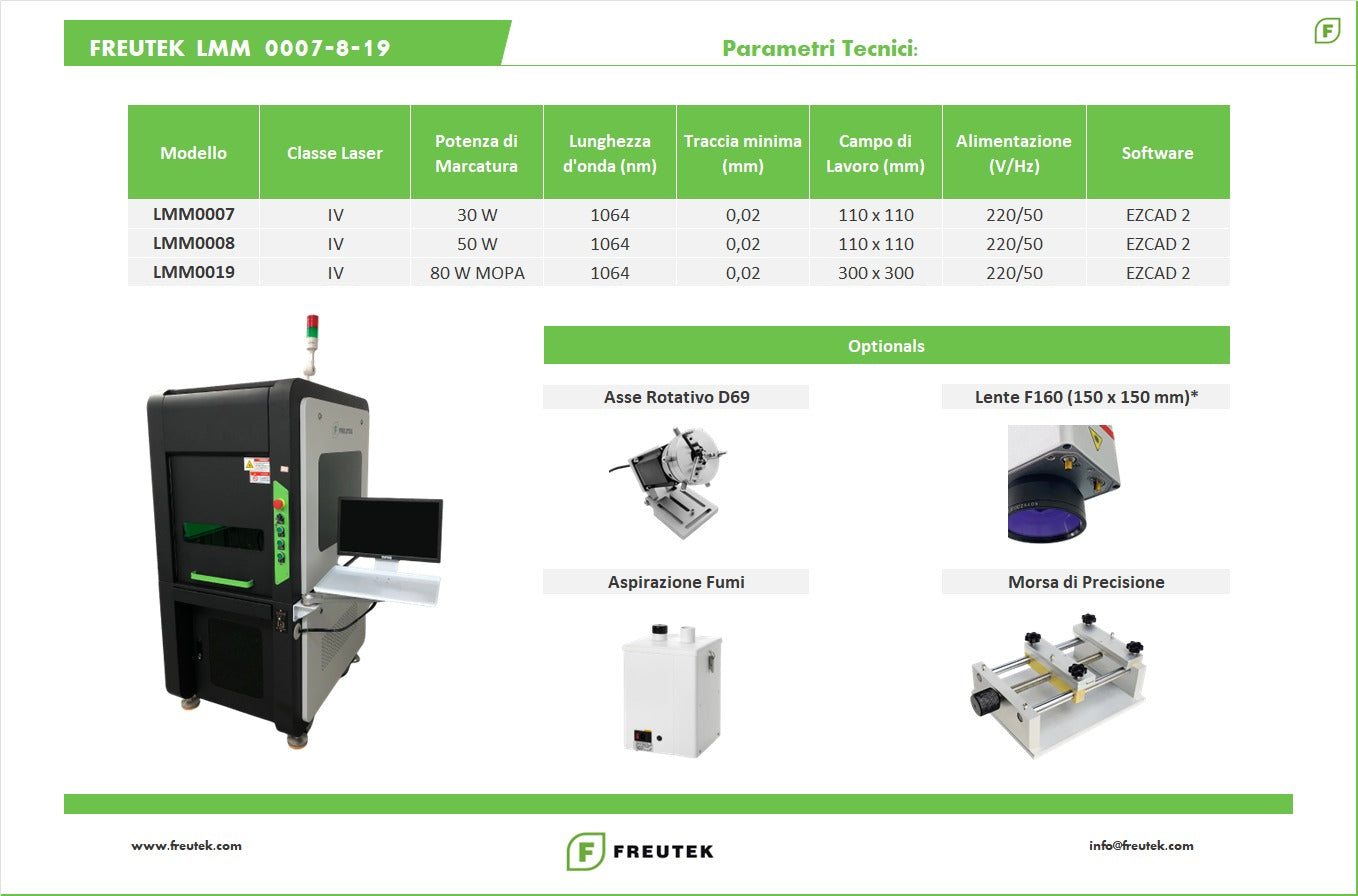

Technical Specifications
Laser Power: 30W
Wavelength: 1064 nm
Marking field: 110 x 110 mm
Minimum line thickness: 0.02 mm
Engraving/Cutting Depth: Up to 0.5mm
Workable materials: ferrous and non-ferrous metals, technical plastics
Power supply: 220V
Included: PC and dedicated software
Ideal for industrial companies, mechanical workshops and laboratories, this system offers efficiency, precision and reliability, allowing for high-quality permanent markings on any type of surface.
Available on request
✔ D69 rotary axis for cylinders up to 69 mm
✔ F160 lens for an increased working field of 150 x 150 mm
✔ Smoke extraction system (always present)
✔ Precision clamp for marking irregularly shaped objects
*a preliminary test on a minimum area is recommended for each new material to be put into use
