LMM0006 - Fiber Laser Marker Class IV 30W, 110x110mm

The LMM0006 30W fiber laser marking system is an advanced solution for high-precision marking, engraving, and cutting on metals and some plastics. Its fully enclosed design ensures a safe and clean working environment, blocking fumes and dust generated during processing.

Main features
✔ Material Versatility: Marks on carbon steel, stainless steel, aluminum, copper, titanium, gold, silver, and alloys; also compatible with some plastics* such as ABS, PVC, PE, PC, and rubber.
✔ High Precision: Minimum line thickness of 0.02mm for detailed engraving.
✔ Cutting function: Ability to engrave and cut metals up to 0.5mm thick.
✔ Software Included: Intuitive interface for managing logos, QR codes, barcodes and serial numbers.
✔ Compact and safe design: The machine is equipped with a safety case and a motorized vertical axis, ensuring ease of use and protection during work.

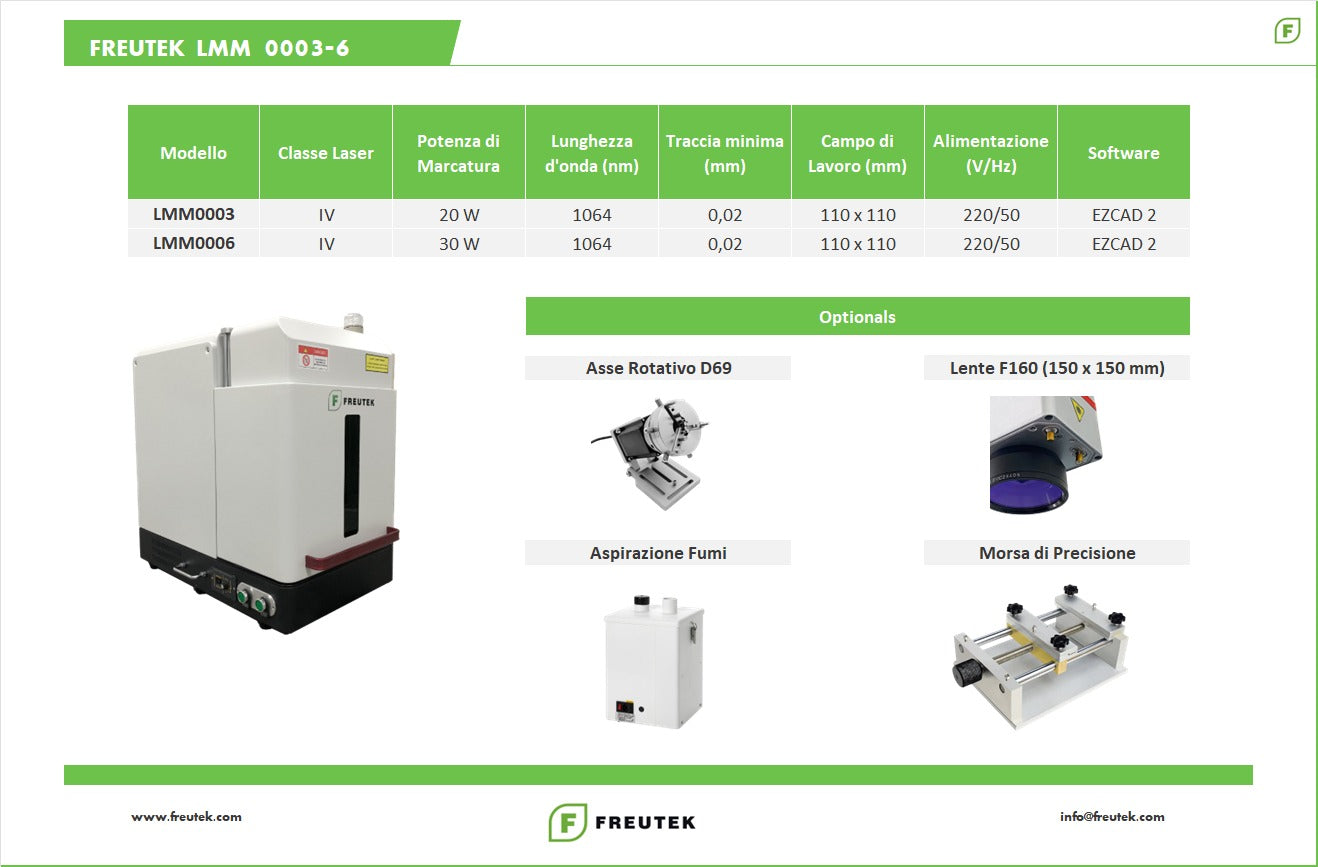

Technical specifications
Laser power: 30W
Wavelength: 1064 nm
Marking field: 110 x 110 mm
Minimum line thickness: 0.02 mm
Engraving/Cutting Depth: Up to 0.5mm
Power supply: 220 V
Structure: closed to contain fumes and dust
Included: Marking Management Software
Perfect for mechanical workshops, industrial laboratories and manufacturing companies, this machine offers high performance, reliability and maximum precision.

Available upon request

✔ D69 rotary axis for cylinders up to 69 mm

✔ F160 lens for an expanded working field of 150 x 150 mm

✔ Smoke extraction system (always present)

✔ Precision clamp for marking irregularly shaped objects

*a preliminary test on a minimum area is recommended for each new material to be used
