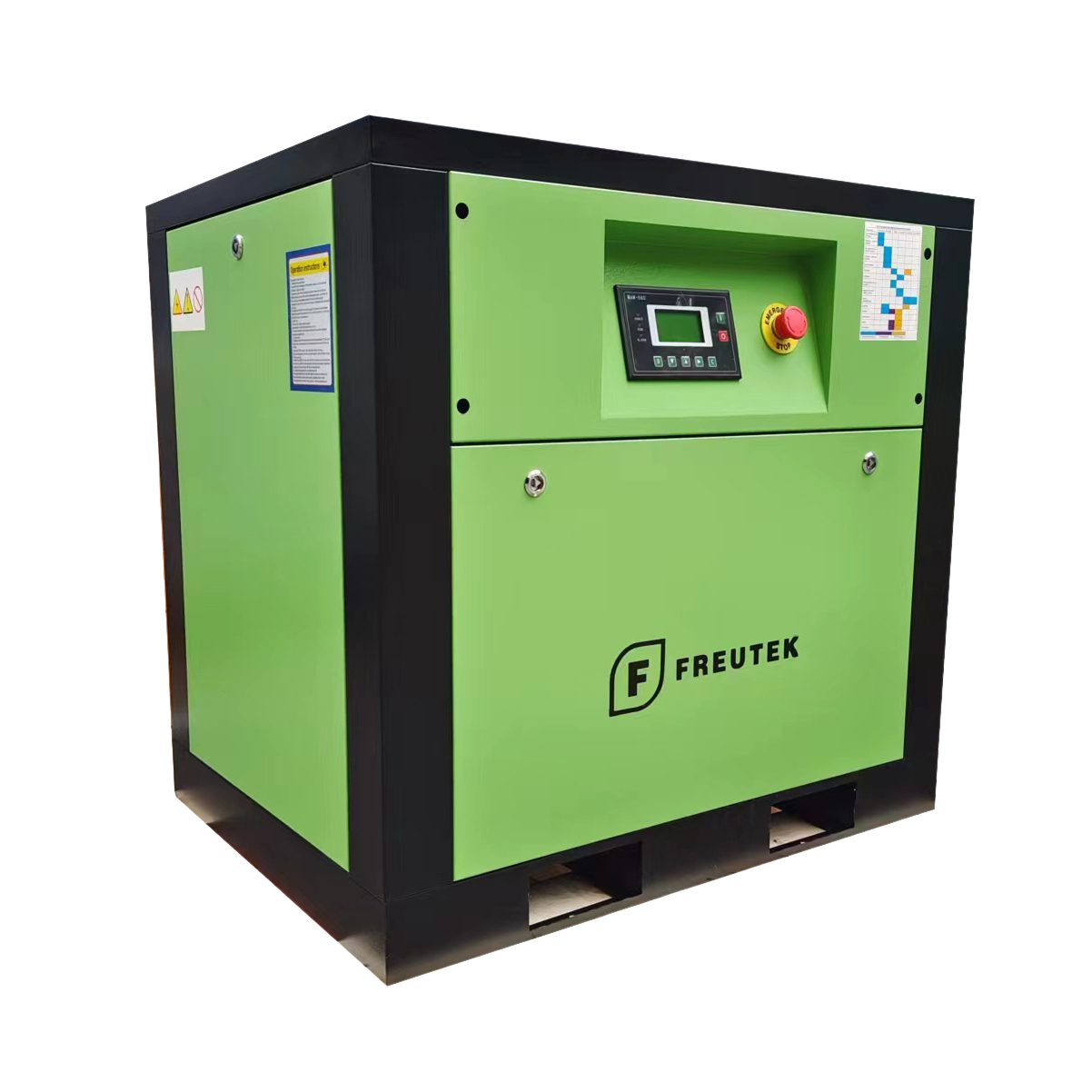

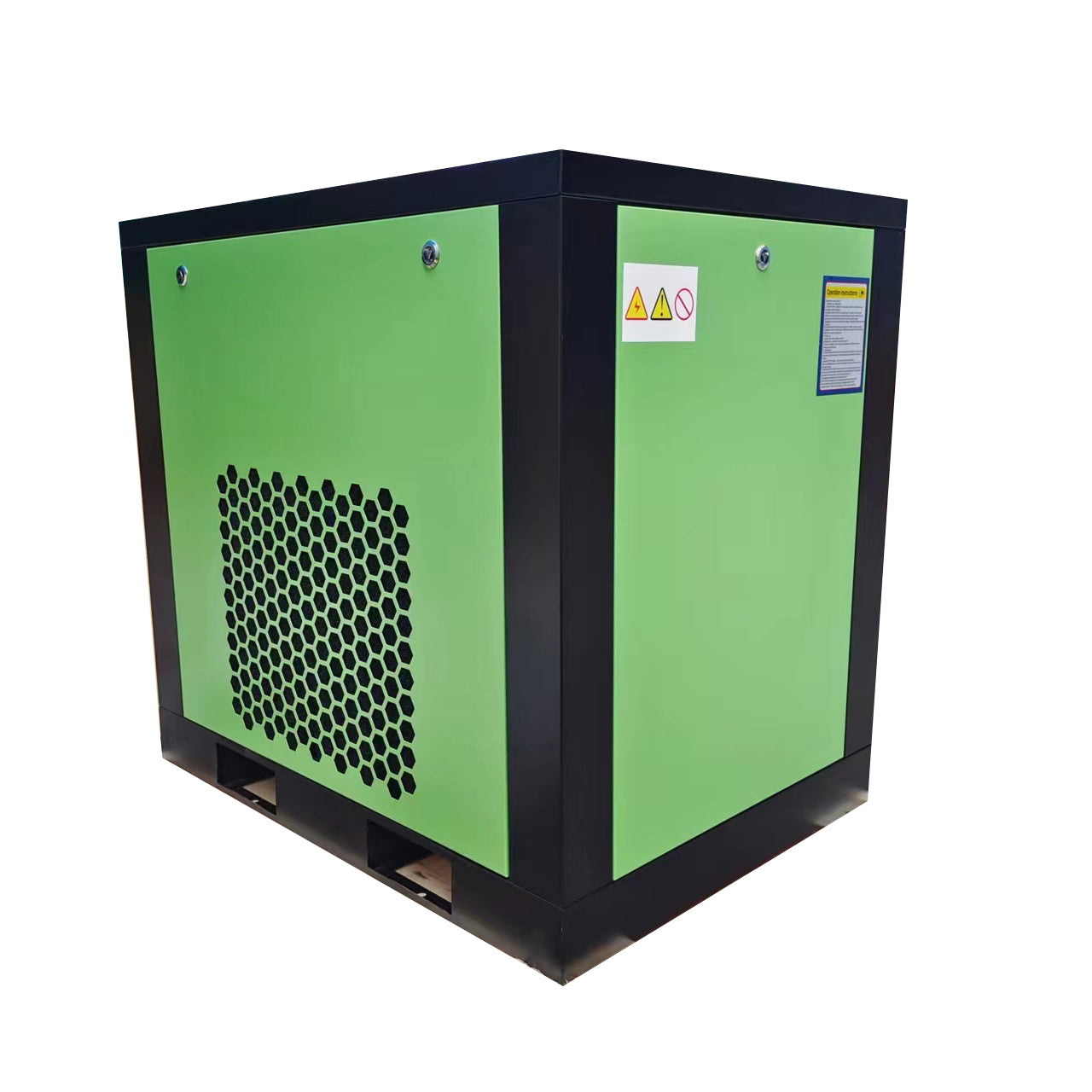

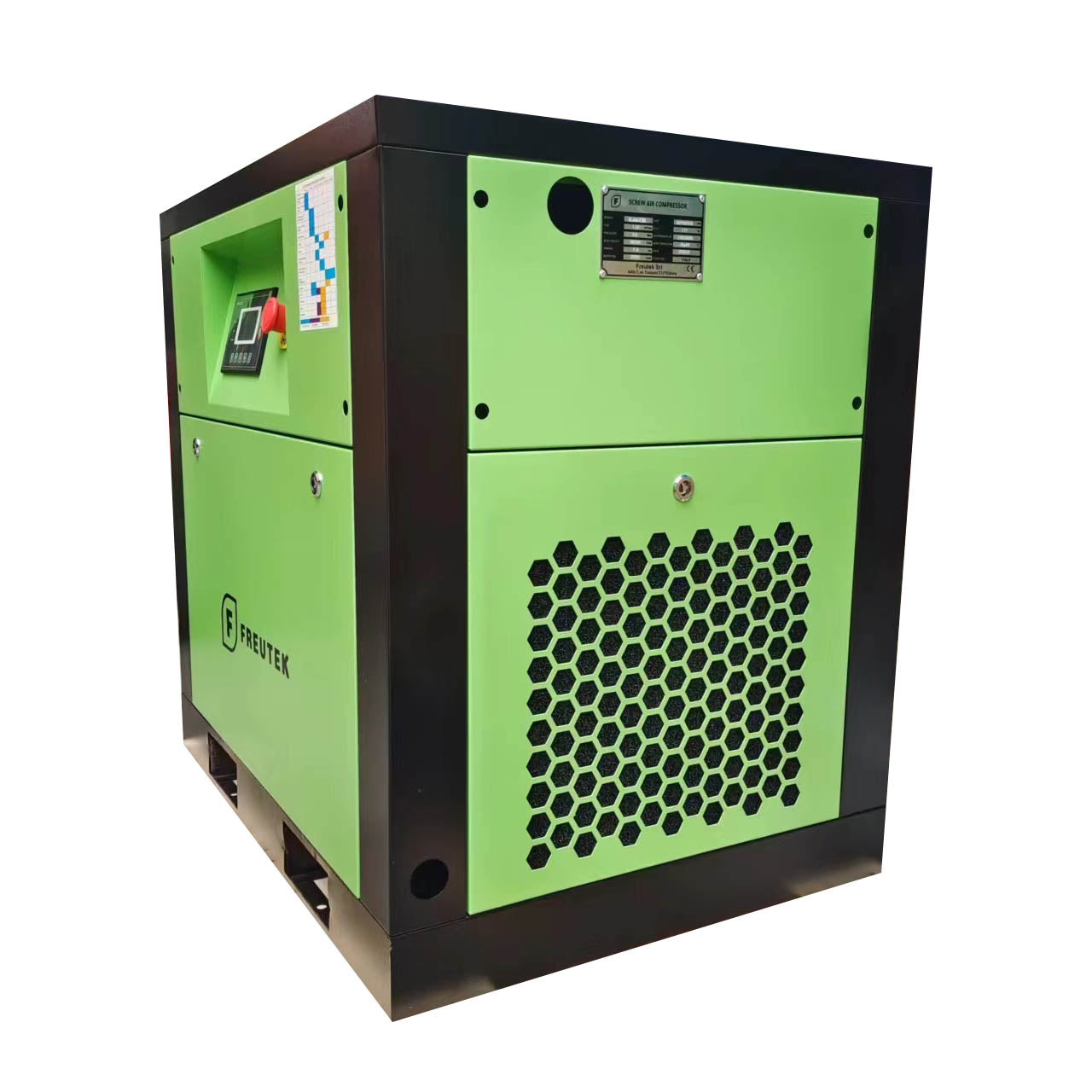

The JUB0001 7.5 kW screw compressor is the ideal solution for industrial applications requiring a constant and reliable air flow. Equipped with a 7.5 kW (10 HP) three-phase motor, it ensures high operating efficiency with an air flow rate of up to 1.1 m³/min (38 CFM) and an outlet pressure of 8 bar.
Main features
✔ Power 7.5 kW (10 HP) for high industrial performance
✔ Constant flow of 1.1 m³/min (38 CFM) for reliable compressed air
✔ 8 bar (116 psi) operating pressure suitable for multiple applications
✔ Quiet operation (about 65 dB) for a more comfortable working environment
✔ Compact and space-saving design, ideal for installations in small spaces

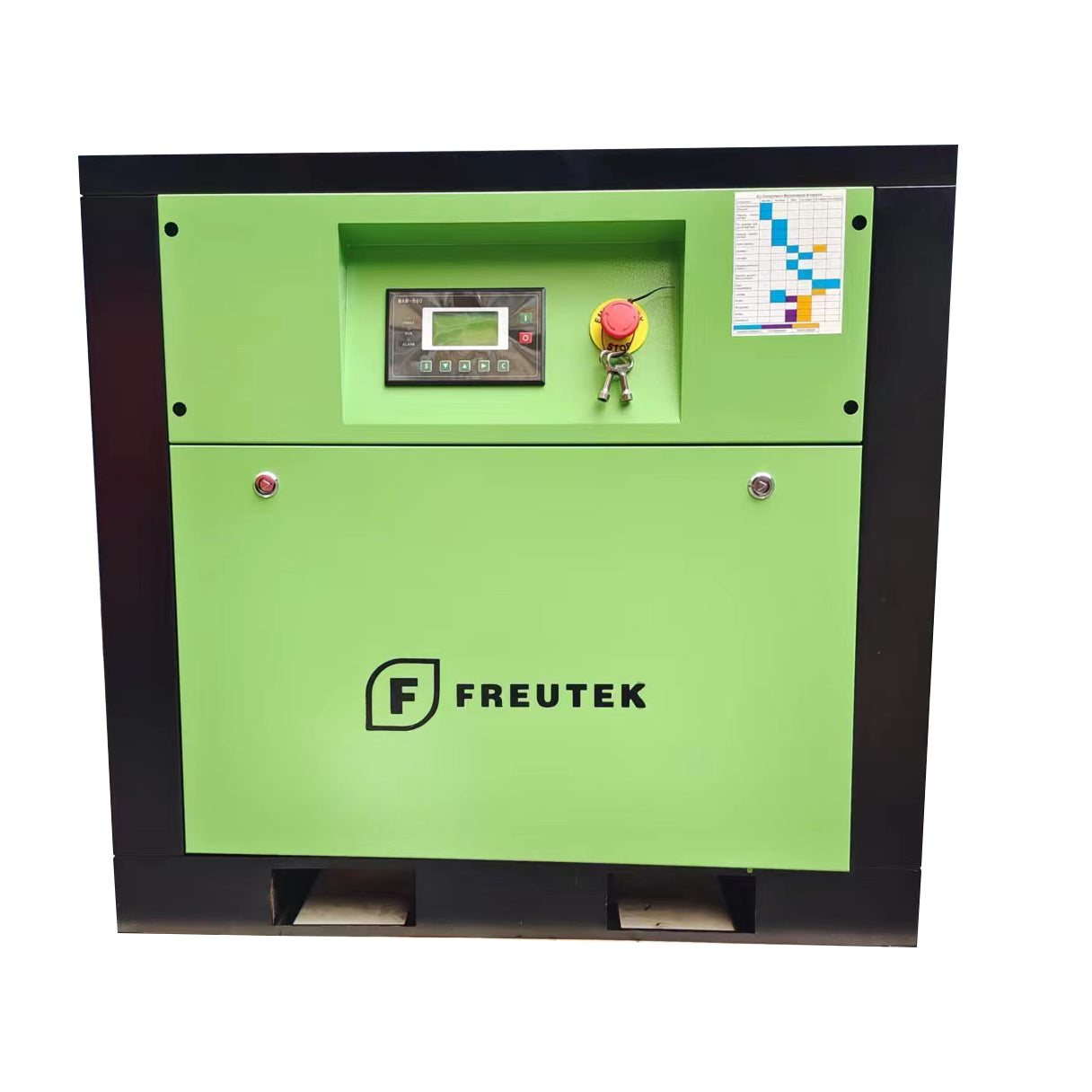

✔ MAM 800 series digital control panel for intuitive management
✔ Simplified maintenance, with pressure, temperature monitoring and alerts
Technical Specifications
Power 7.5 kW (10 HP)
Operating pressure 8 bar (116 psi)
Air flow 1.1 m³/min (38 CFM)
Outlet connection G 1/2
Noise level ~65 dB
MAM 800 Series Control Panel
Dimensions Compact, suitable for small spaces
