HYD0007 - Electric Forklift 3m - 1 Ton
Couldn't load pickup availability

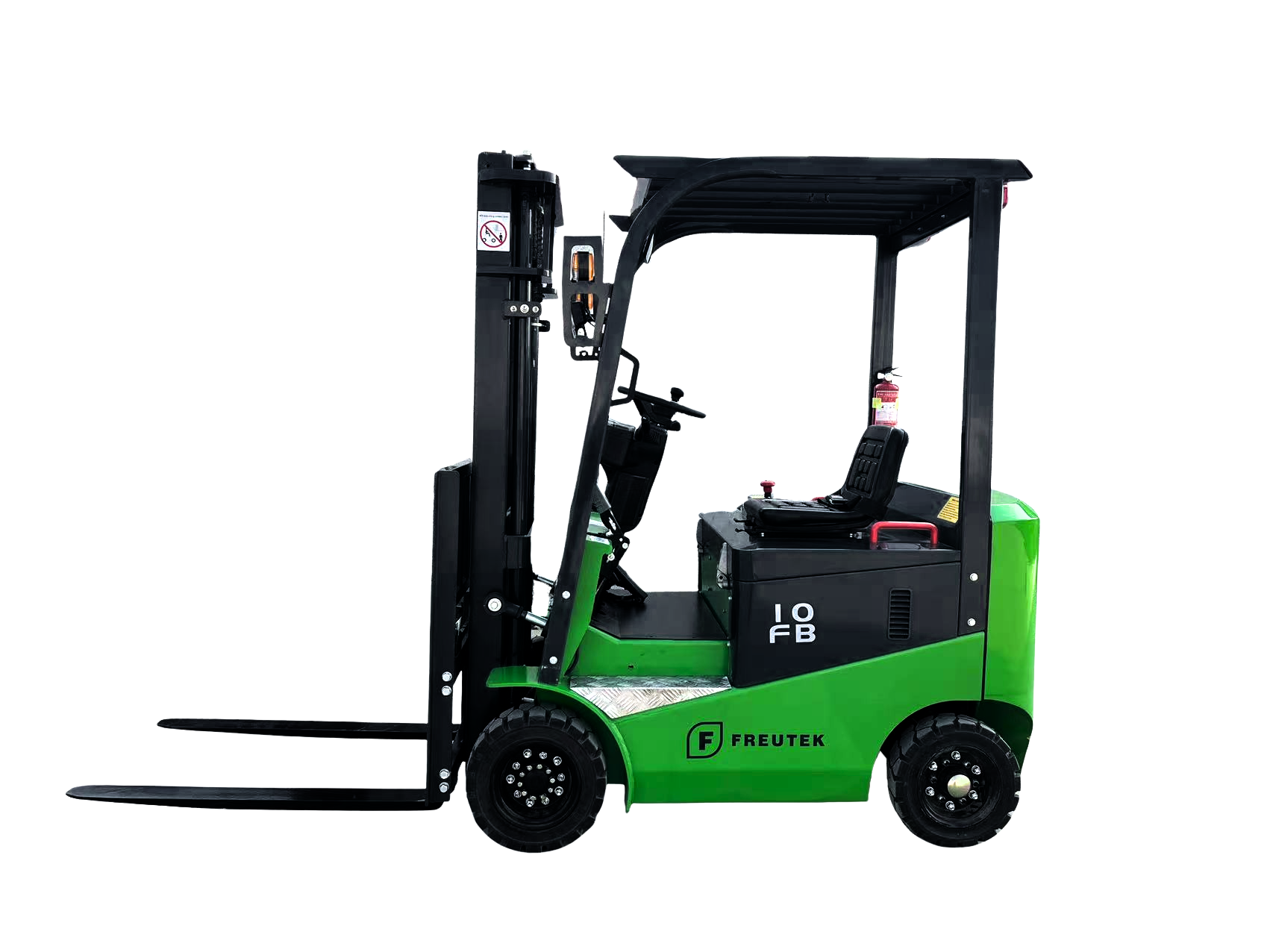

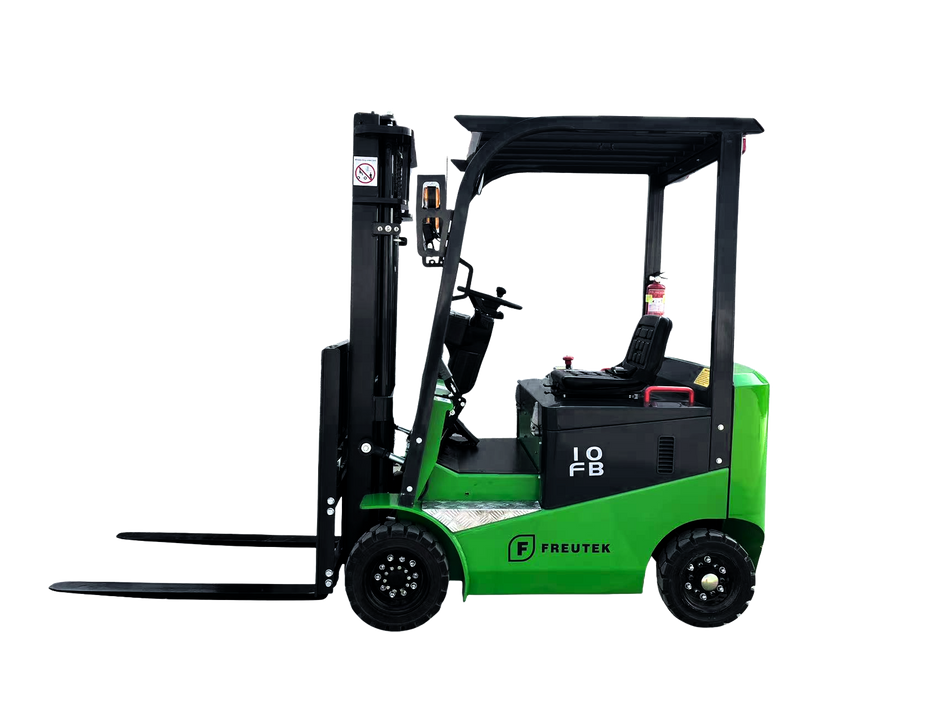

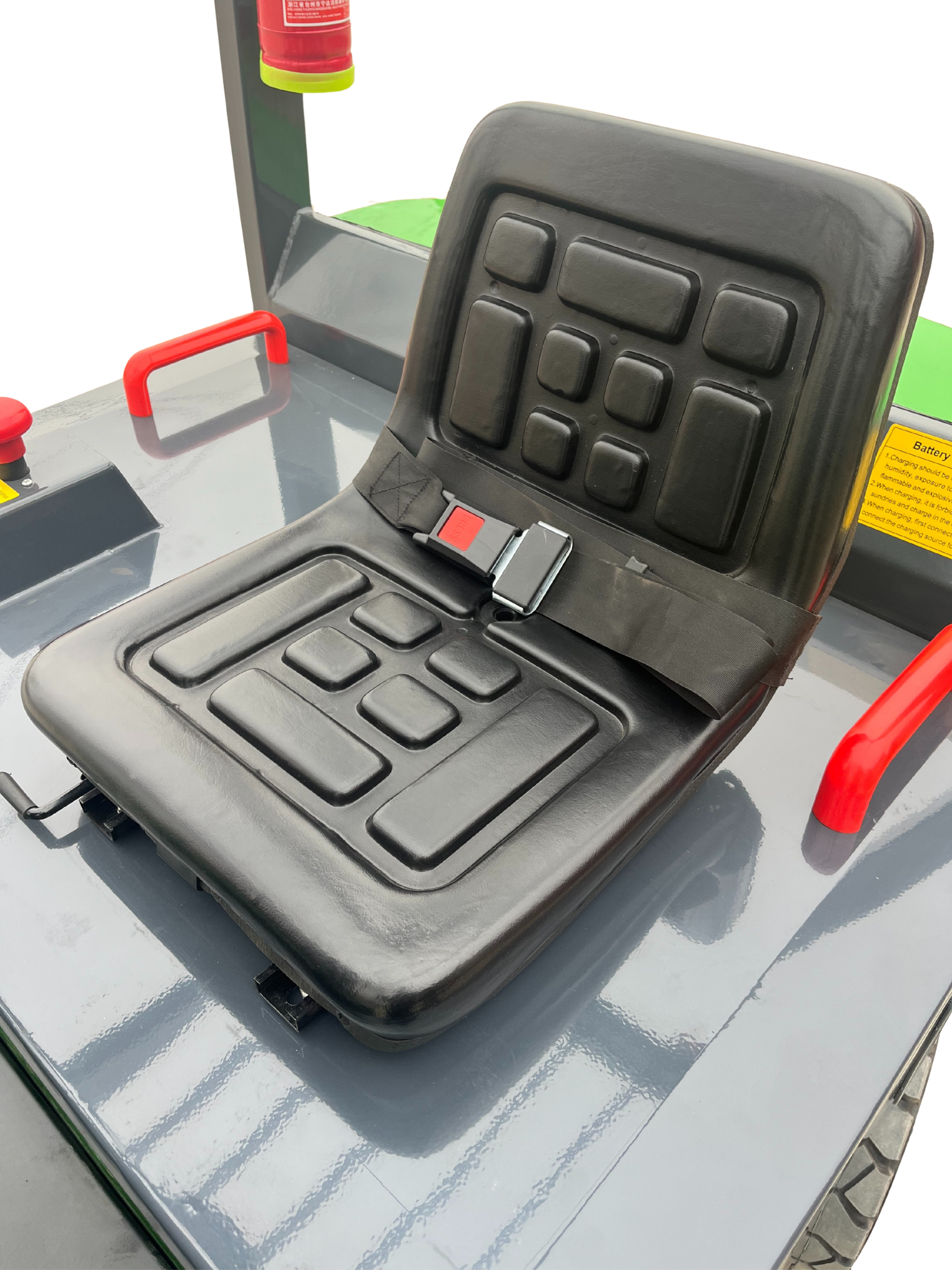

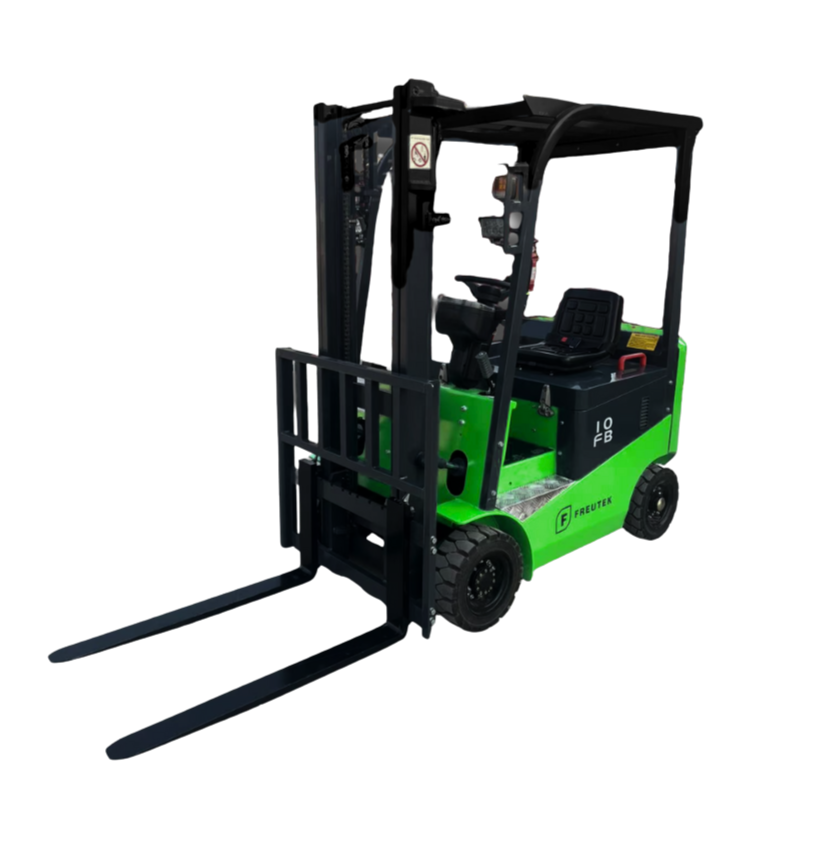

The FREUTEK HYD0007 electric forklift is the ideal solution for industrial and logistics environments where maneuverability, safety and respect for the environment are required. With a maximum capacity of 1000 kg and a lifting height of up to 3 meters, this compact and balanced model guarantees maximum efficiency even in tight spaces. Equipped with a 60V/150Ah battery and AC motor, it ensures long autonomy and reduced maintenance costs. The solid wheels and ergonomic design with a suspension seat improve operator comfort throughout the working day.

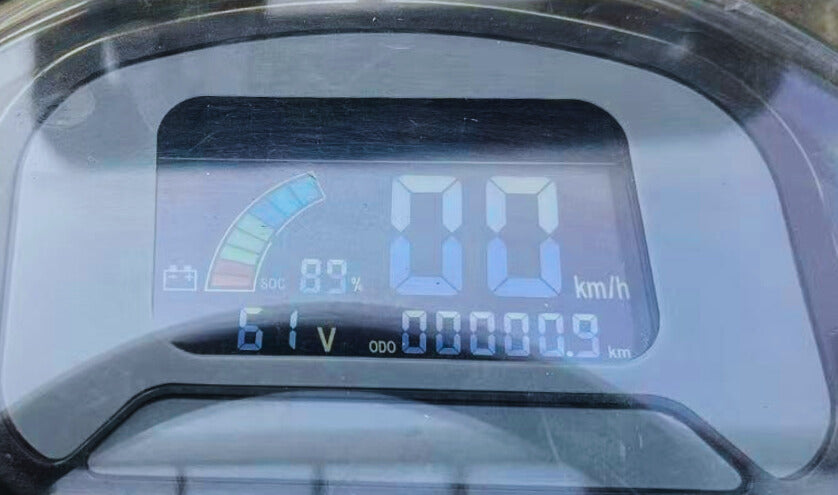

Ideal for warehouses, production plants and pallet loads, the FREUTEK HYD0007 truck complies with CE regulations and EN ISO 3691-1 and EN 60204-1 safety standards. The multifunction LED instrumentation allows intuitive and immediate control over speed, battery and operating status.
Technical Specifications
Characteristic | Value |
---|---|
Model | FB10 |
Maximum capacity | 1000 kg |
Maximum lifting height | 3000 mm |

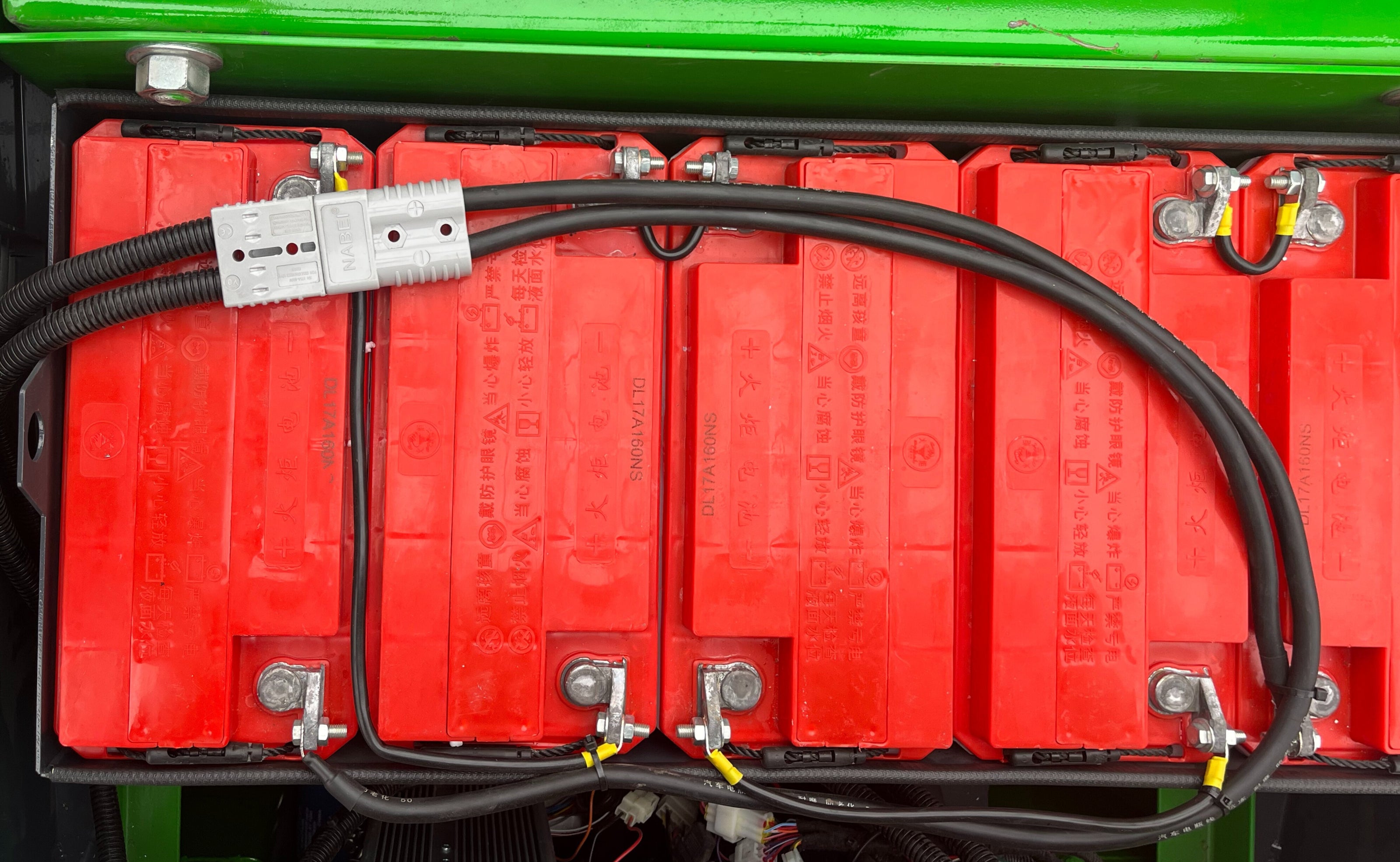

Battery Voltage/Capacity | 60V / 150Ah |
Traction motor | AC 3kW |
Hydraulic motor | DC 2.5kW |
Max speed (loading / unloading) | 10 / 12 km/h |
Tree height lowered | 1970 mm |
Lifting height with backrest | 4010 mm |
Total weight | 1900 kg |
Length without forks | 1800 mm |
Outside turning radius | 1850 mm |
Forks (LxWxH) | 1070 x 100 x 30 mm |
Upright tilt (fwd/rev) | 8th / 8th |
Tire type | Solids |
Weight | 2500 Kg |
Length | 2200 mm |
Length | 1150 mm |
Height | 2050 mm |
