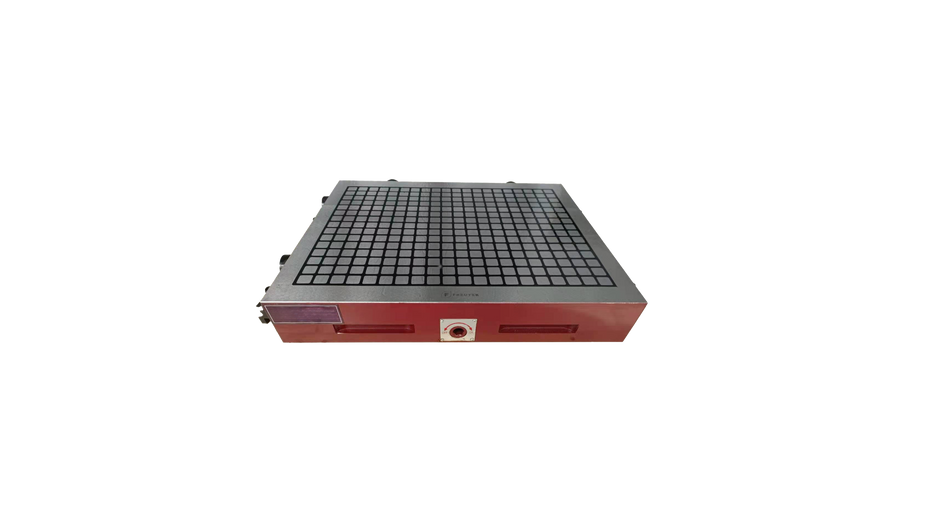

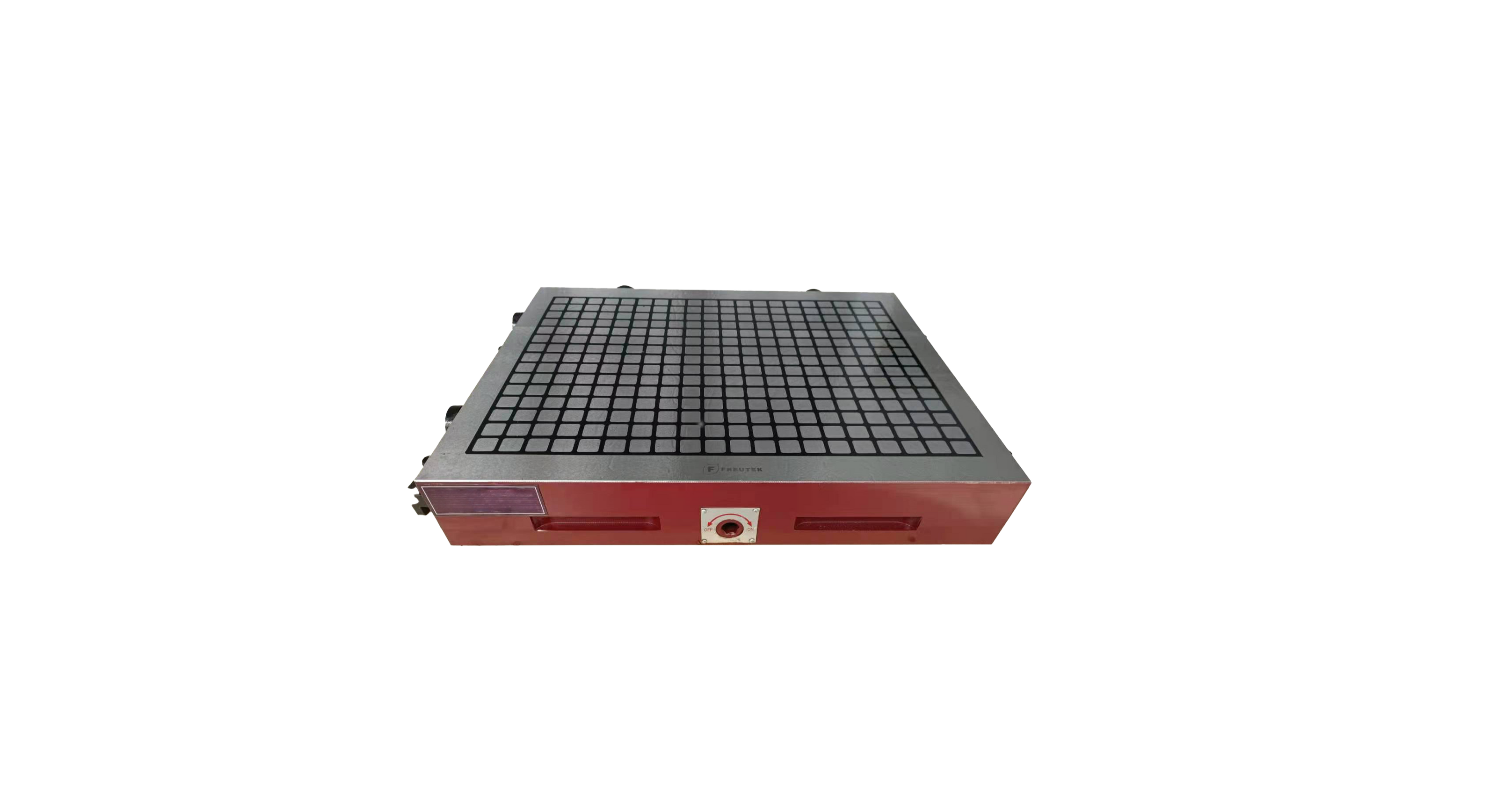

ATT0037 - Permanent Magnet Magnetic Chuck 300 x 400 mm

The ATT0037 magnetic chuck is a permanent magnet clamping system with a minimum holding force of 40 kgF, designed for milling, grinding, and precision machining applications. With a useful surface area of ​​300 x 400 mm, it allows for the secure clamping of workpieces of various sizes without the need for power, ensuring stability and precision.

Main features
✔ Permanent magnetic system with mechanical lever activation

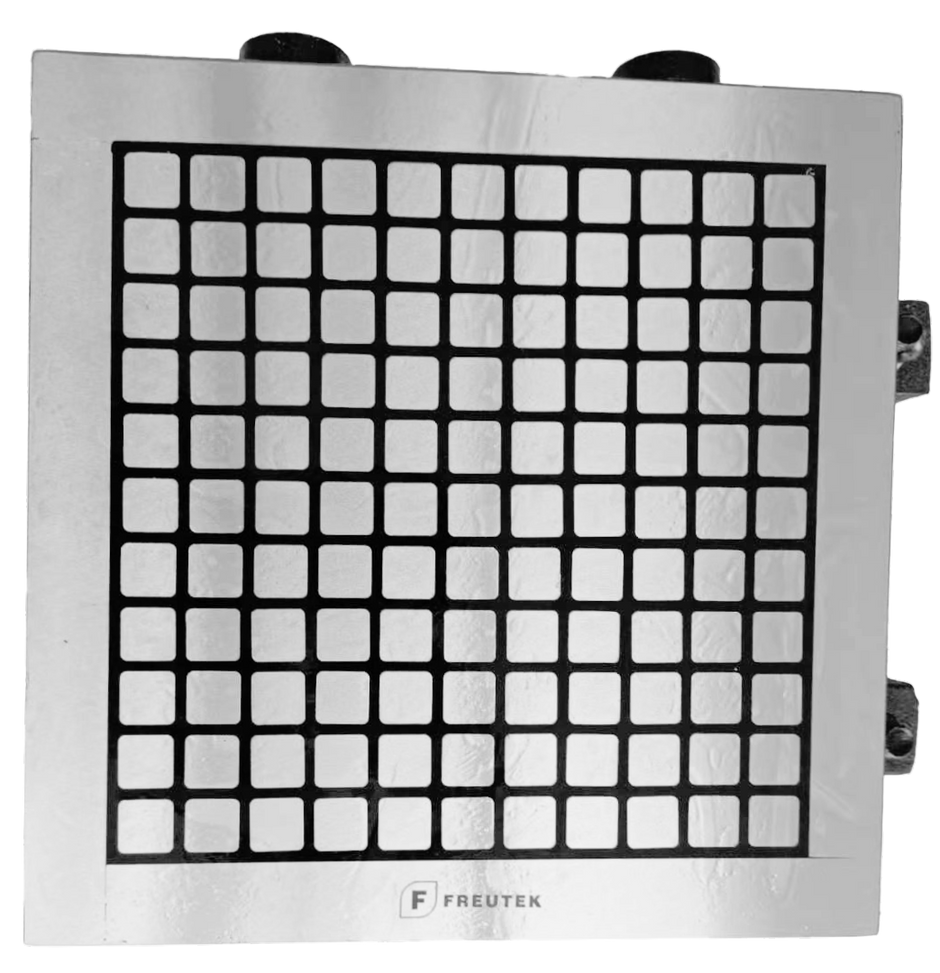

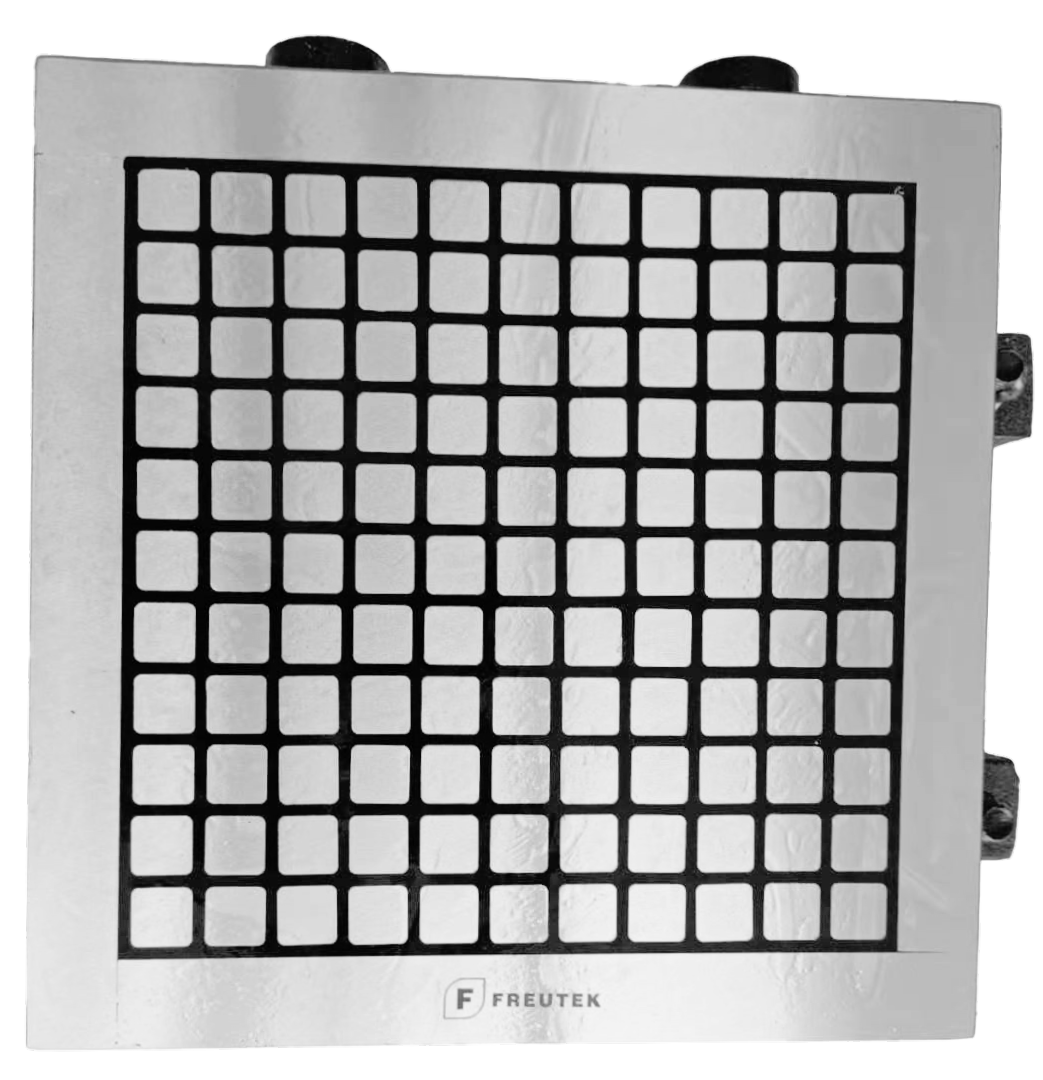

✔ Usable surface of 300x400 mm for versatile processing
✔ Magnetic force proportional to the contact surface
✔ Does not require power supply, eliminating electrical risks and energy consumption
✔ Residual magnetic counterfield in OFF, to facilitate the removal of the piece
✔ 4 fixing clamps included for optimal stability

Technical specifications

Model ATT0039
Type Permanent magnet magnetic chuck
Minimum magnetic force 40 kgF
Usable surface 300x400 mm
Thickness 80 mm
Activation system Mechanical lever
Power Required No
Thermal or mechanical effect None
Residual magnetic counterfield present, facilitates the removal of the piece
Accessories included 4 fixing clamps
