ATT0021 - Precision vice (150x200 mm)
Increments of 1
Minimum of 1
Maximum of
Sale price
€265,00 EUR
-100%
Regular price
€0,00 EUR
Regular price
€265,00 EUR
Unit price
per
Couldn't load pickup availability

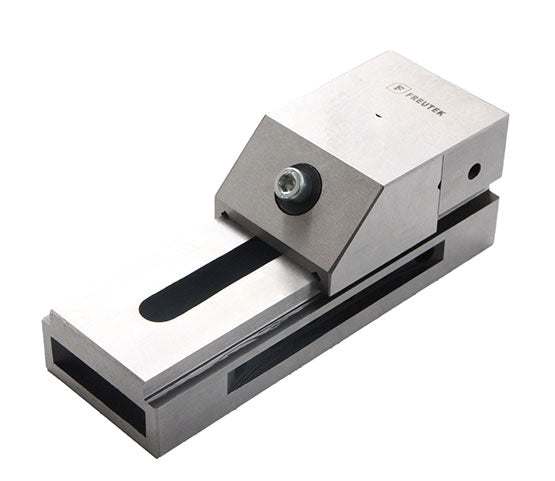

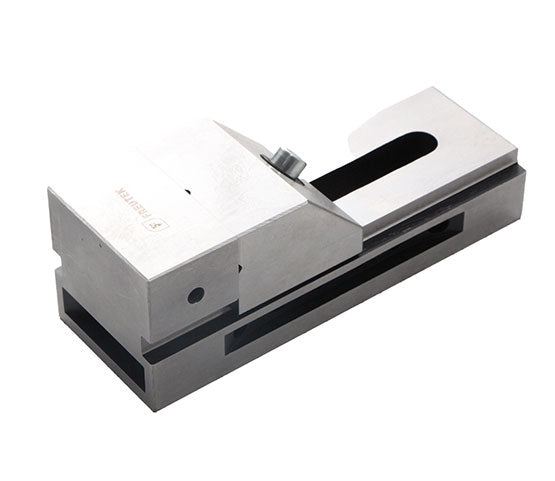

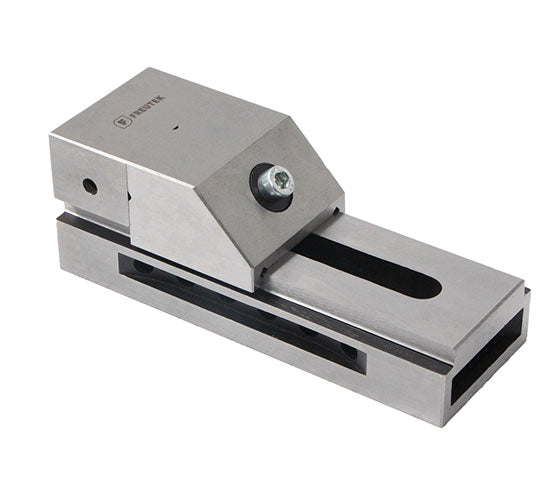

The ATT0021 precision vise is designed to ensure maximum stability and precision in grinding, milling, measuring and electrical discharge machining (EDM). Constructed from 20CrMnTi steel, it ensures a hardness of HRC58-62, offering high wear resistance and long life.
With a useful clamping surface of 150 x 50 mm and a maximum opening of 200 mm, this vise is ideal for clamping workpieces of various sizes. The parallelism and squareness error of ±0.005 mm every 100 mm ensures reliable performance for high-precision machining.
The orthogonal and transverse V-grooves on the movable jaw allow cylindrical or irregular workpieces to be clamped with extreme safety. In addition, the 45° inclined clamping screw allows for optimal fastening even in confined spaces, making the vise perfect for applications in environments with limited access.
✔ High precision for CNC, EDM and measurement machining
✔ 20CrMnTi steel construction for strength and longevity
✔ V-grooves for secure grip of cylindrical workpieces
✔ 45° angled screw for use in confined spaces
Technical Specifications
Model ATT0021
Type Precision vice
Material Steel 20CrMnTi
Hardness HRC58-62
Clamping surface 150 x 50 mm
Maximum opening 200 mm
Total length 330 mm
Parallelism error ±0.005 mm every 100 mm
Orthogonality error ±0.005 mm
V-grooves Yes, orthogonal and transverse
Clamping screw angle 45° | Weight | 22 Kg |
| Length | 140mm |
| Length | 180mm |
| Height | 280mm |
