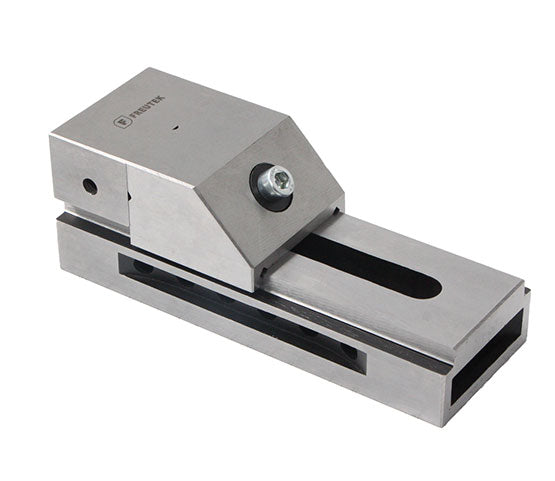

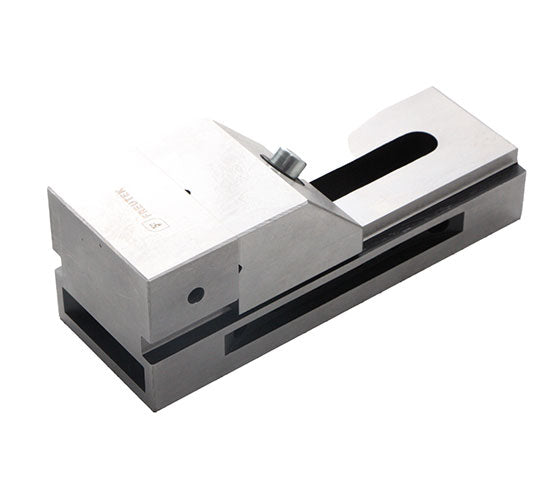

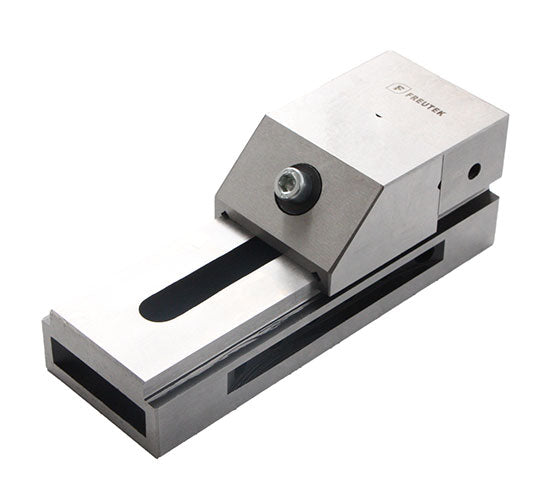

ATT0020 - Precision vice (100x125 mm)

The ATT0020 precision vise is designed to ensure maximum precision in grinding, milling, measuring, and electrical discharge machining (EDM) operations. Made of 20CrMnTi steel, it guarantees strength and longevity, with a hardness of HRC58-62, ideal for high-precision machining.
With a useful clamping surface of 100 x 45 mm and a maximum opening of 125 mm, this vise is perfect for clamping medium to large workpieces. The parallelism and squareness error of ±0.005 mm per 100 mm ensures high precision, essential for CNC and EDM operations.
The orthogonal and transverse V-grooves on the movable jaw allow for secure clamping of cylindrical or irregular workpieces. The 45° angled clamping screw ensures stable clamping even in tight spaces, making this vise particularly versatile in areas with limited access.

✔ High precision for CNC, EDM and measuring machining
✔ Robust construction for long-lasting professional use
✔ V-grooves for secure grip of cylindrical workpieces
✔ 45° angled screw for use in tight spaces

Technical specifications

Model ATT0020
Precision vise type
Material: 20CrMnTi steel
Hardness HRC58-62
Clamping surface 100 x 45 mm
Maximum opening 125 mm
Total length 245 mm
Parallelism error ±0.005 mm per 100 mm
Orthogonality error ±0.005 mm
V-grooves Yes, orthogonal and transverse
Clamping screw angle 45°
