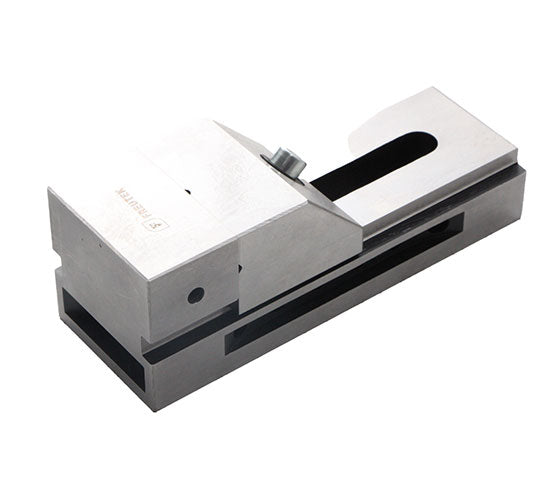

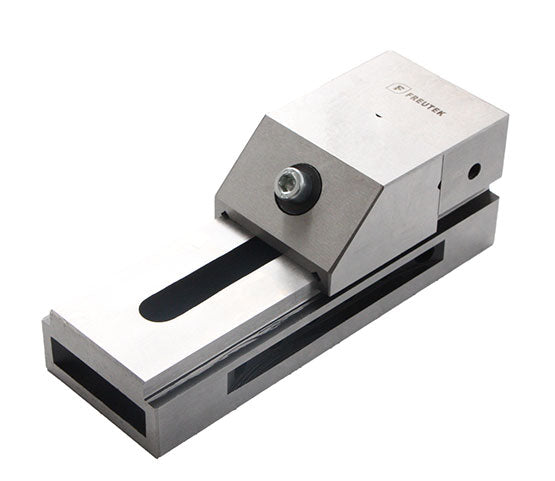

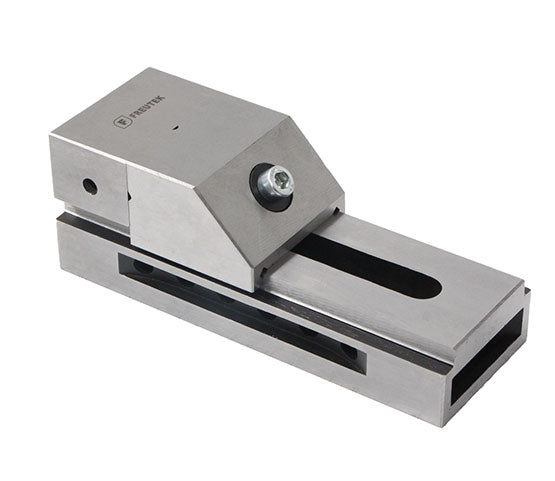

The ATT0019 precision vise is designed to ensure maximum accuracy in grinding, milling, measuring, and electrical discharge machining (EDM) operations. Made of 20CrMnTi steel, it ensures high strength and durability, with a hardness of HRC58-62, ideal for precision machining on CNC machines and measuring instruments.
Thanks to its 80 x 40 mm clamping surface and a maximum opening of 100 mm, this vise is perfect for holding medium-sized workpieces. The parallelism and squareness error of just ±0.005 mm per 100 mm ensures precise and repeatable machining.
The orthogonal and transverse V-grooves on the movable jaw allow for clamping cylindrical or irregular workpieces, improving clamping stability. Furthermore, the 45° angled clamping screw allows for efficient fastening even in tight spaces, making it a versatile solution for environments with limited access.
✔ High precision for CNC and EDM machining
✔ Compact and robust structure for long life
✔ V-grooves for secure grip of cylindrical workpieces
✔ 45° angled screw for use in confined spaces
Technical Specifications
Model ATT0019
Precision vice type
Material: 20CrMnTi Steel
Hardness HRC58-62
Clamping surface 80 x 40 mm
Maximum opening 100 mm
Total length 200 mm
Parallelism error ±0.005 mm per 100 mm
Orthogonality error ±0.005 mm
V-grooves Yes, orthogonal and transverse
Clamping screw angle 45°
