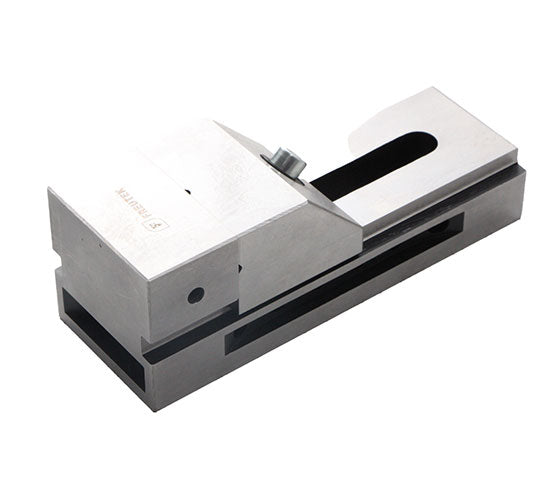

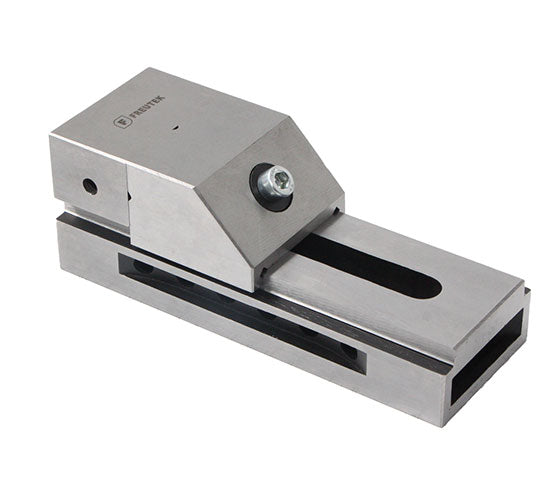

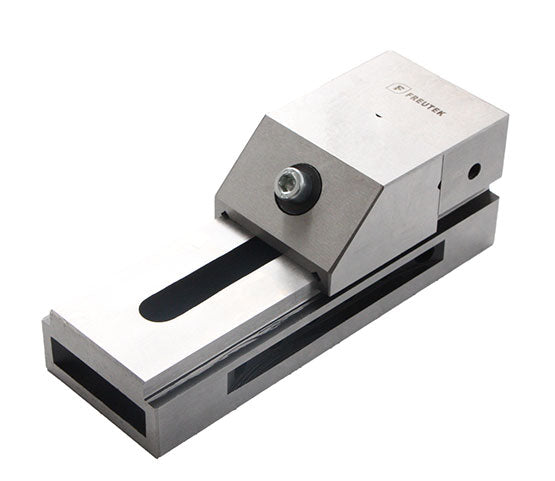

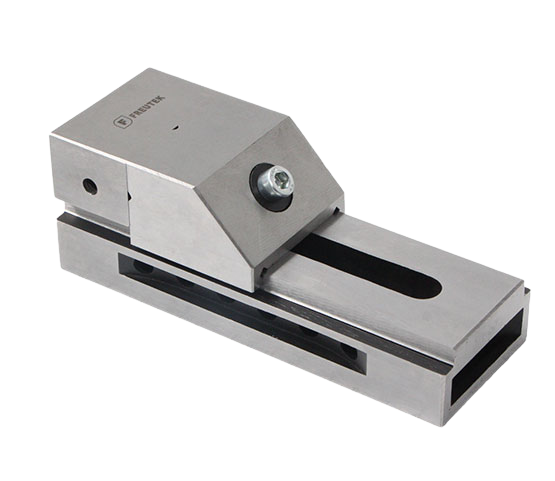

ATT0018 - Precision vice (50x65 mm)

The ATT0018 precision vise is the ideal solution for high-precision operations such as grinding, milling, measuring, and electrical discharge machining (EDM). Made of 20CrMnTi steel, it guarantees high wear resistance with a hardness of HRC58-62, ensuring long life and stability during the most demanding machining operations.
With a useful clamping surface of 50 x 25 mm and a maximum opening of 65 mm, this vise is perfect for holding small workpieces with extraordinary precision. Its parallelism and squareness error of just ±0.005 mm per 100 mm ensures precise and repeatable machining.
Designed for limited spaces, the 45° clamping screw allows for efficient clamping even in tight spaces. Additionally, the orthogonal and transverse V-grooves on the movable jaw facilitate clamping of cylindrical or irregular workpieces, ensuring stability without the risk of slipping.

✔ High precision for grinding, EDM and milling
✔ Compact structure for use in confined spaces
✔ V-grooves for fixing cylindrical or irregular workpieces
✔ 45° angled screw for easy tightening in tight spaces

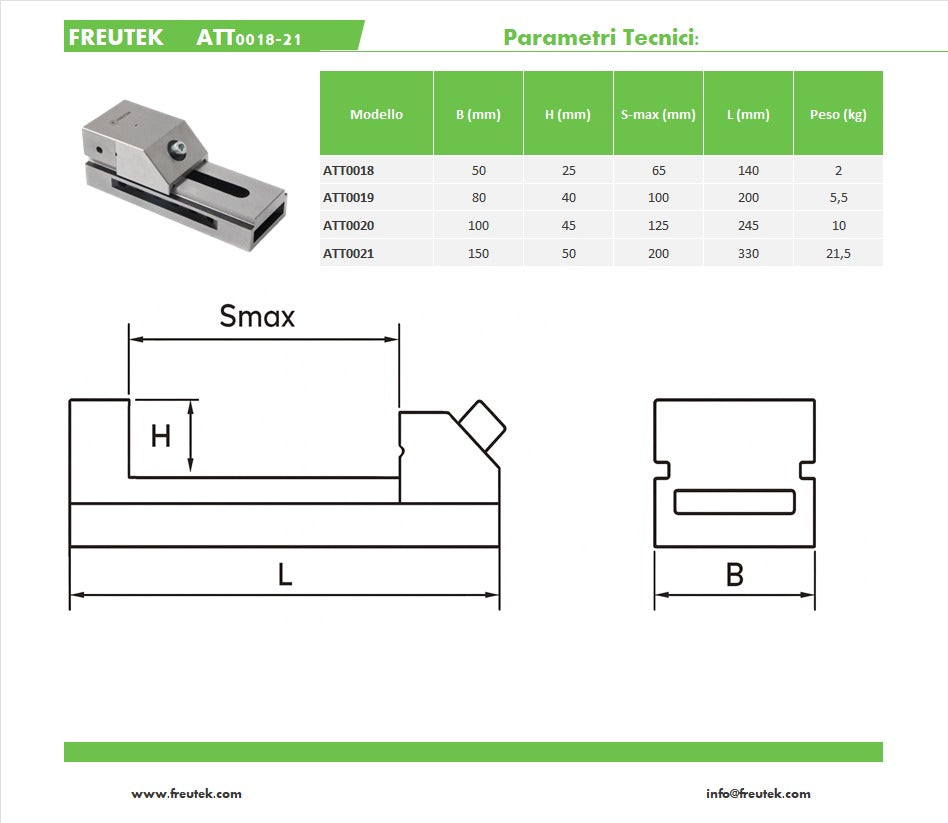

Technical specifications

Model ATT0018
Precision vise type
Material: 20CrMnTi steel
Hardness HRC58-62
Clamping surface 50 x 25 mm
Maximum aperture 65 mm
Total length 140 mm
Parallelism error ±0.005 mm per 100 mm
Orthogonality error ±0.005 mm
V-grooves Yes, orthogonal and transverse
Clamping screw angle 45°
