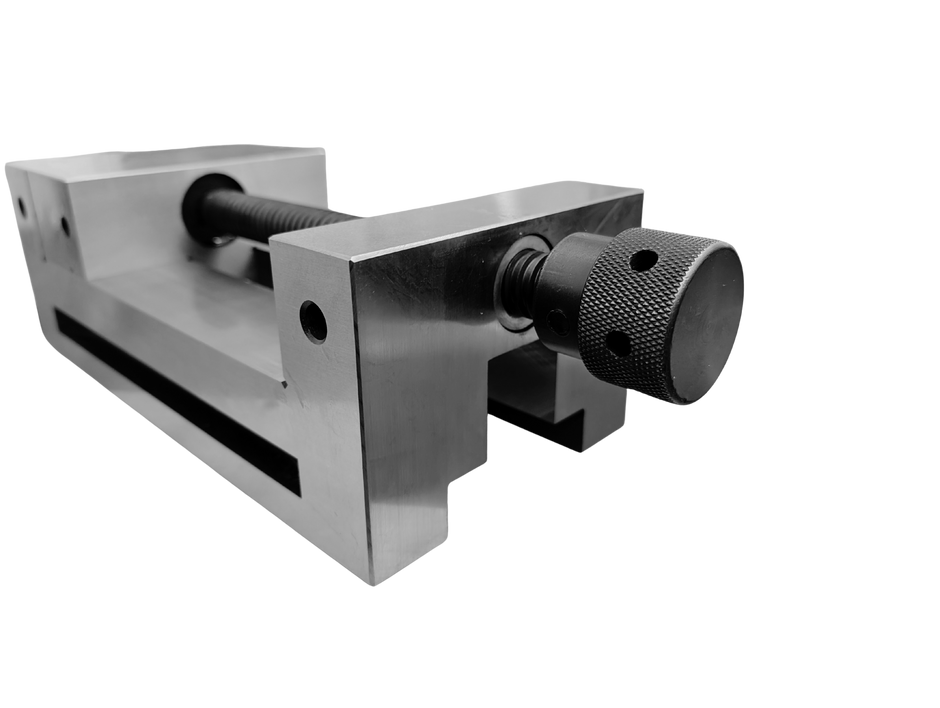

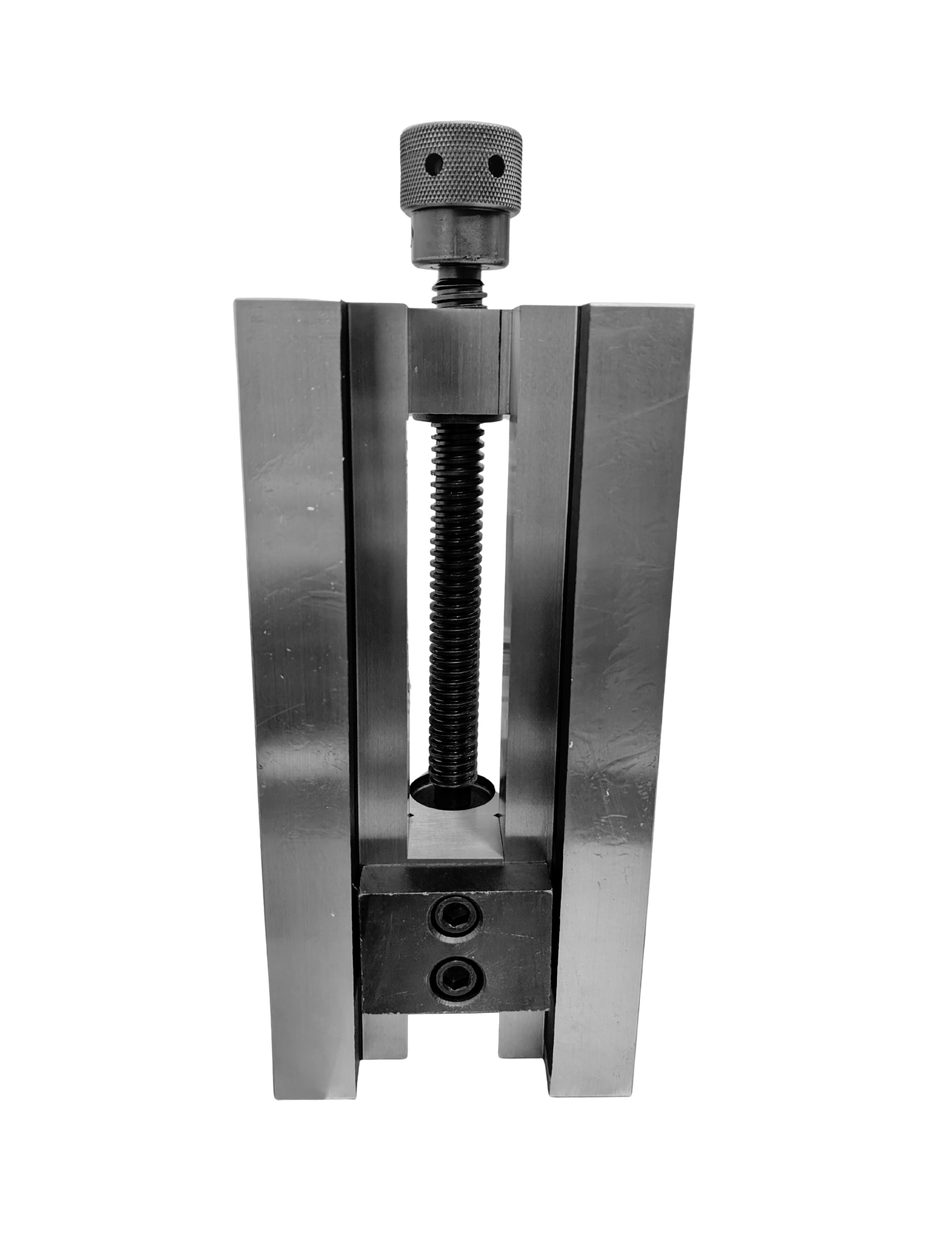

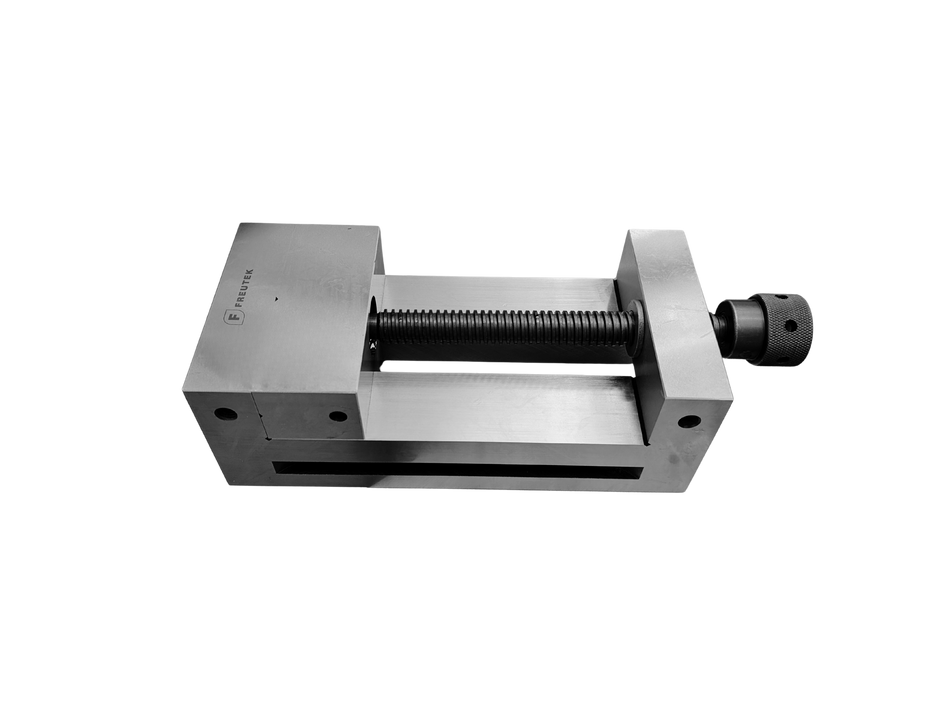

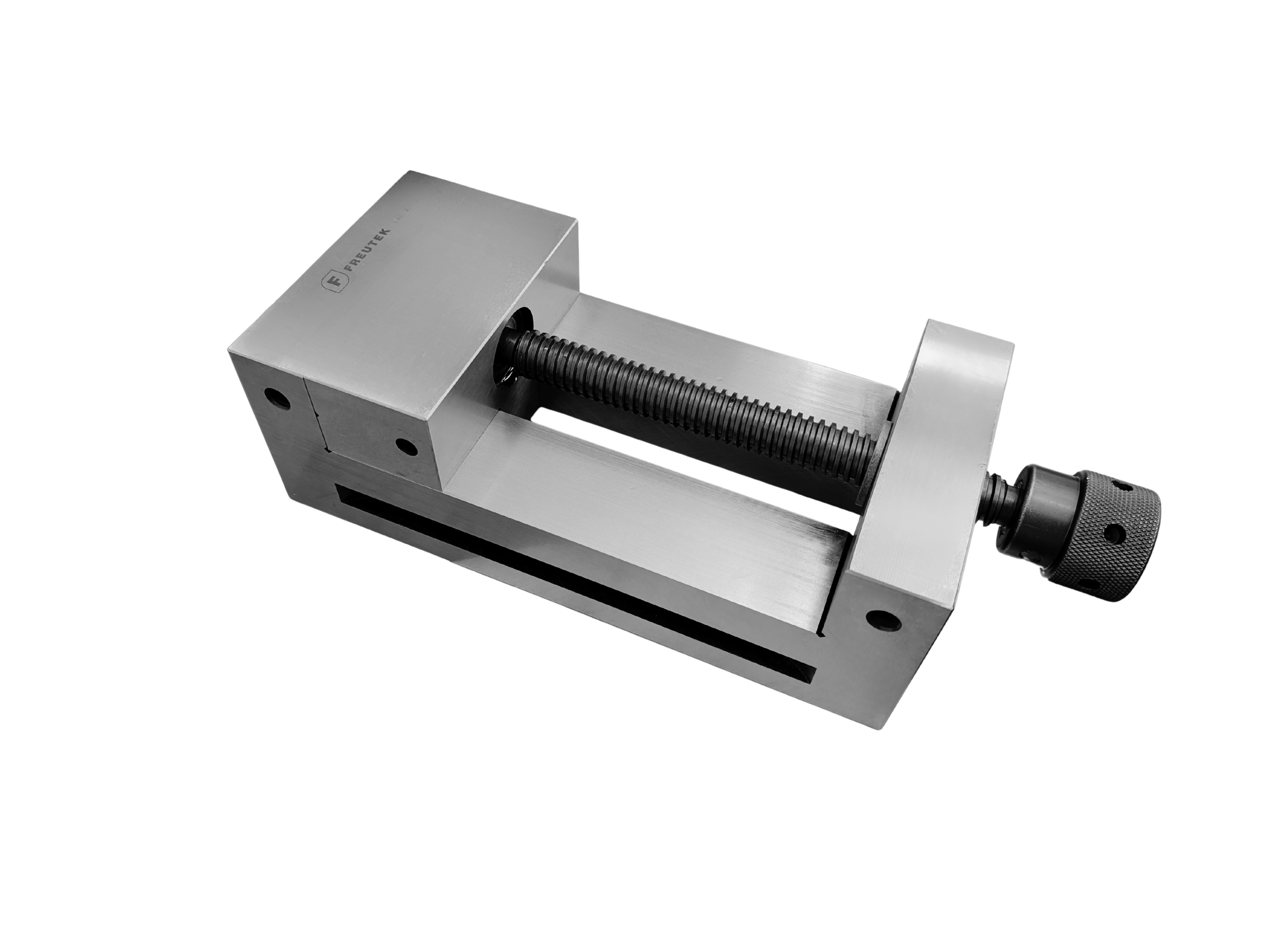

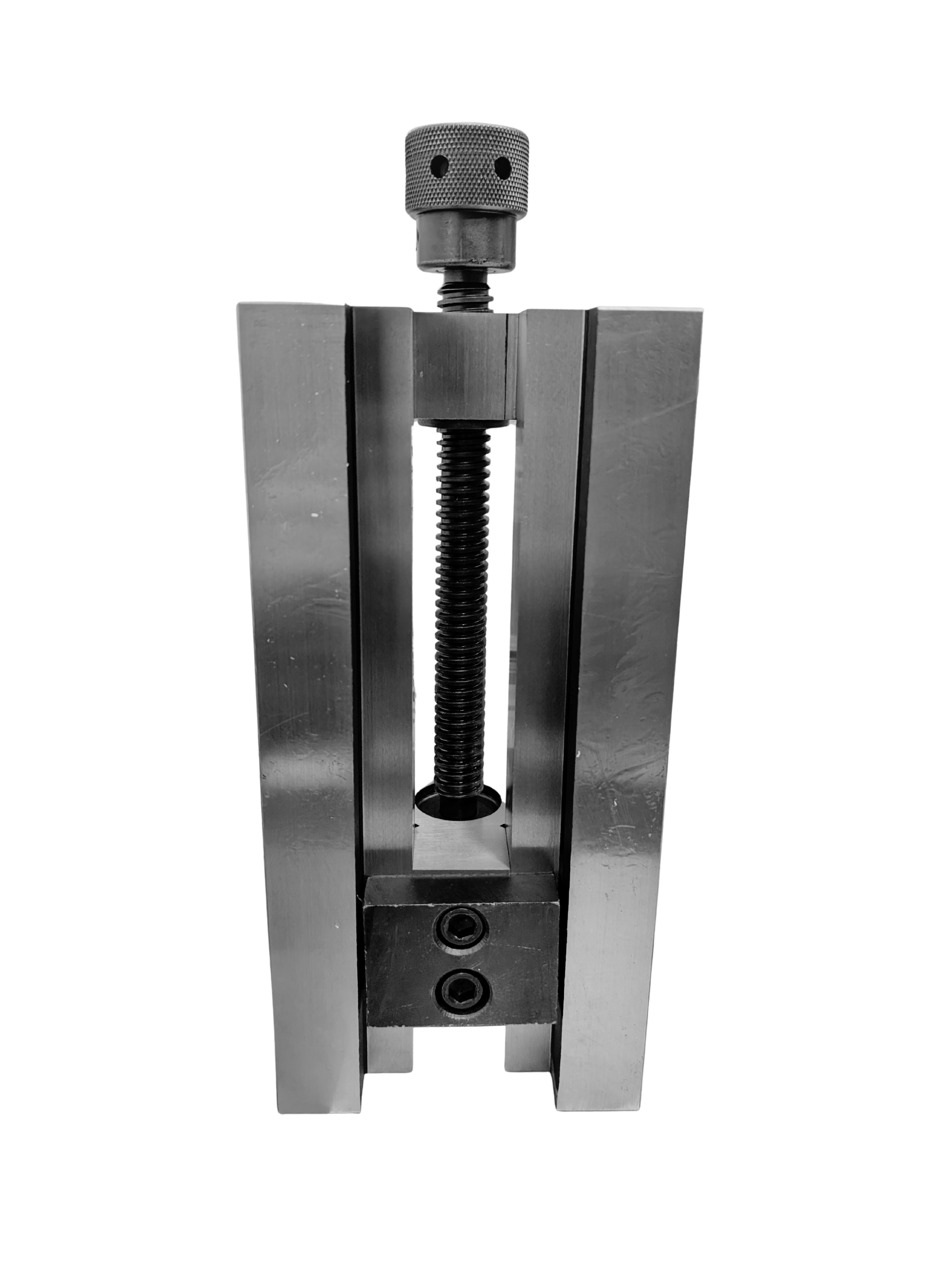

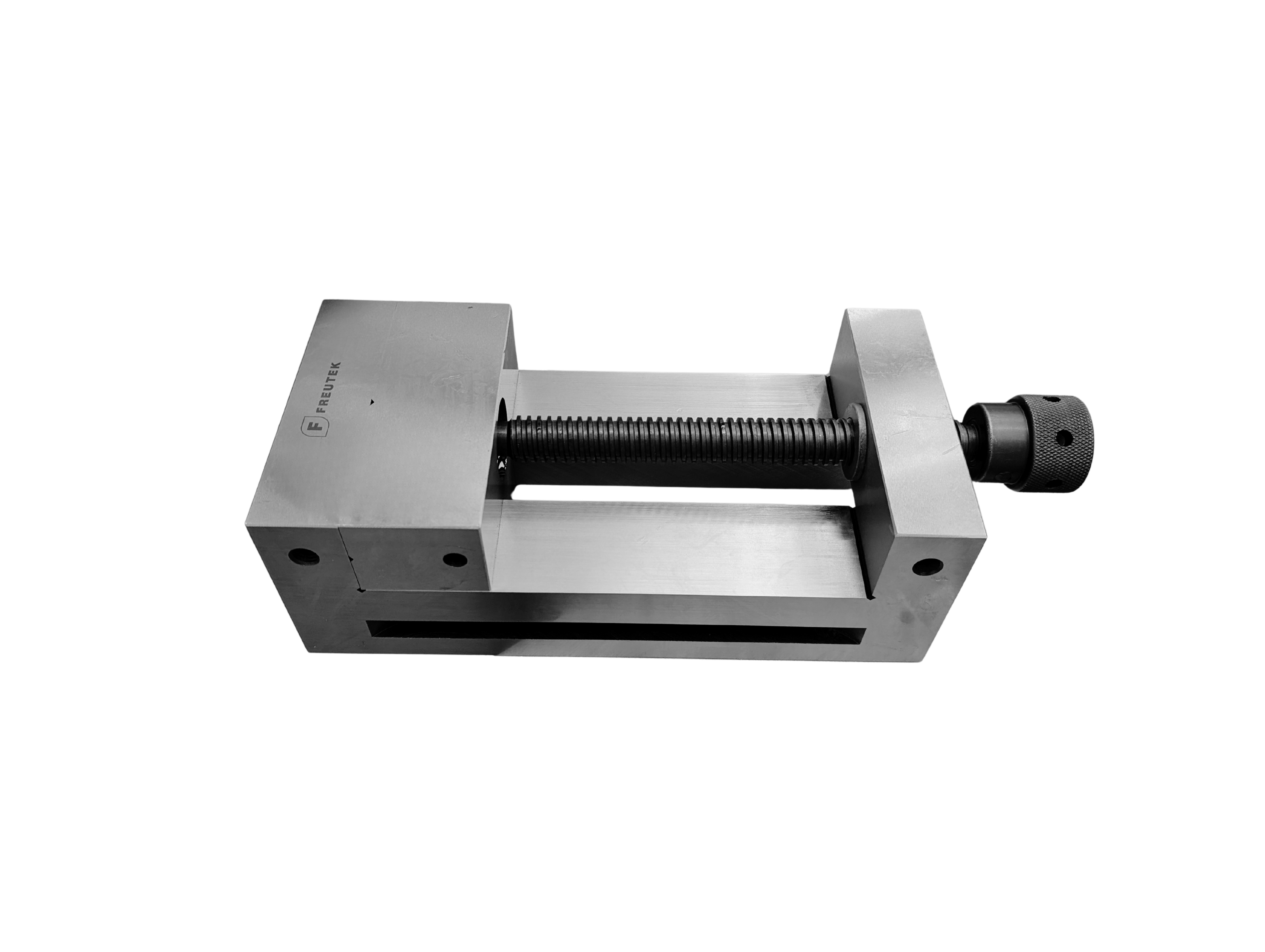

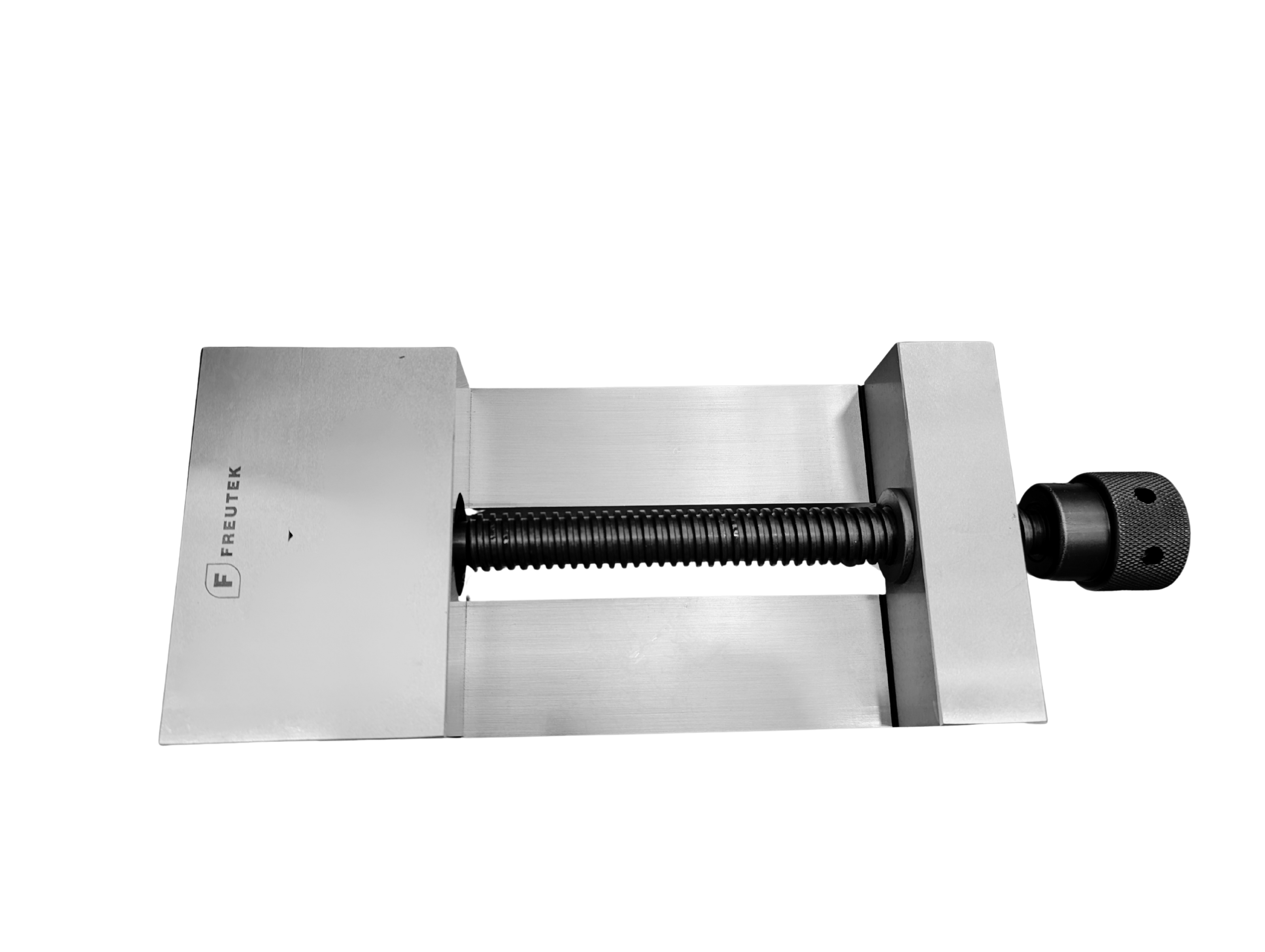

ATT0017 - Precision vice (150x175 mm)

The ATT0017 precision vise is designed to ensure high precision in grinding, milling, measuring, and electrical discharge machining (EDM) operations. Made of 20CrMnTi steel, it offers a hardness of HRC58-62, ensuring strength and durability even in the most demanding applications.
Thanks to its usable clamping surface of 150 x 50 mm and a maximum opening of 175 mm, this vise is ideal for clamping workpieces of various sizes with extreme precision. The parallelism and squareness error of just ±0.005 mm per 100 mm guarantees maximum tolerance control for high-precision machining.

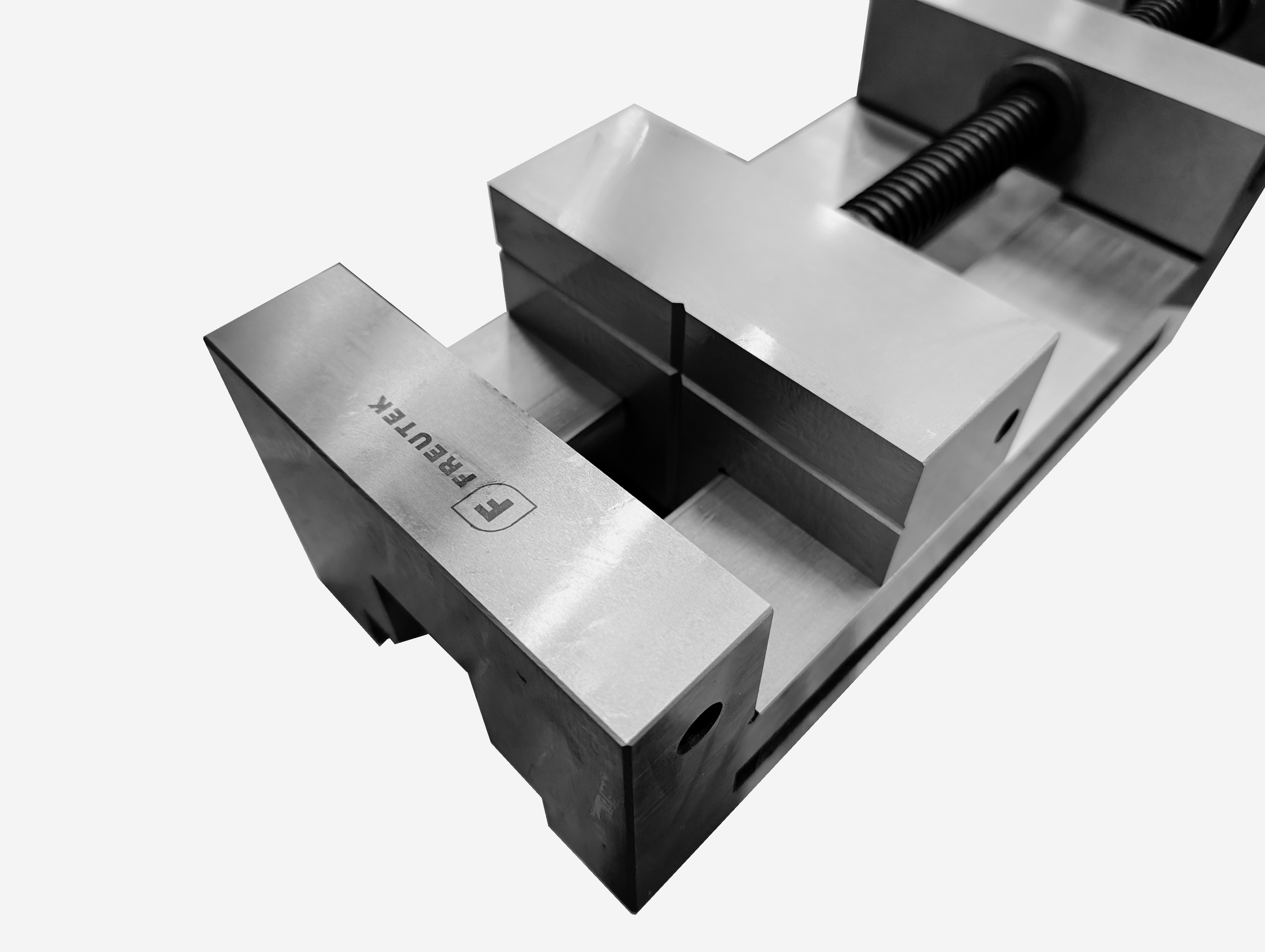

The innovative design includes orthogonal and transverse V-grooves on the movable jaw, allowing for the secure clamping of cylindrical or irregular workpieces without compromising the stability of the device. The overall length of the vise, excluding the screw, is 315 mm, making it compact and versatile for a variety of industrial applications.

✔ High precision for grinding, EDM and milling operations
✔ High strength material for long operating life
✔ Extremely low parallelism and squareness error (±0.005 mm)
✔ V-grooves for fixing cylindrical or irregular workpieces

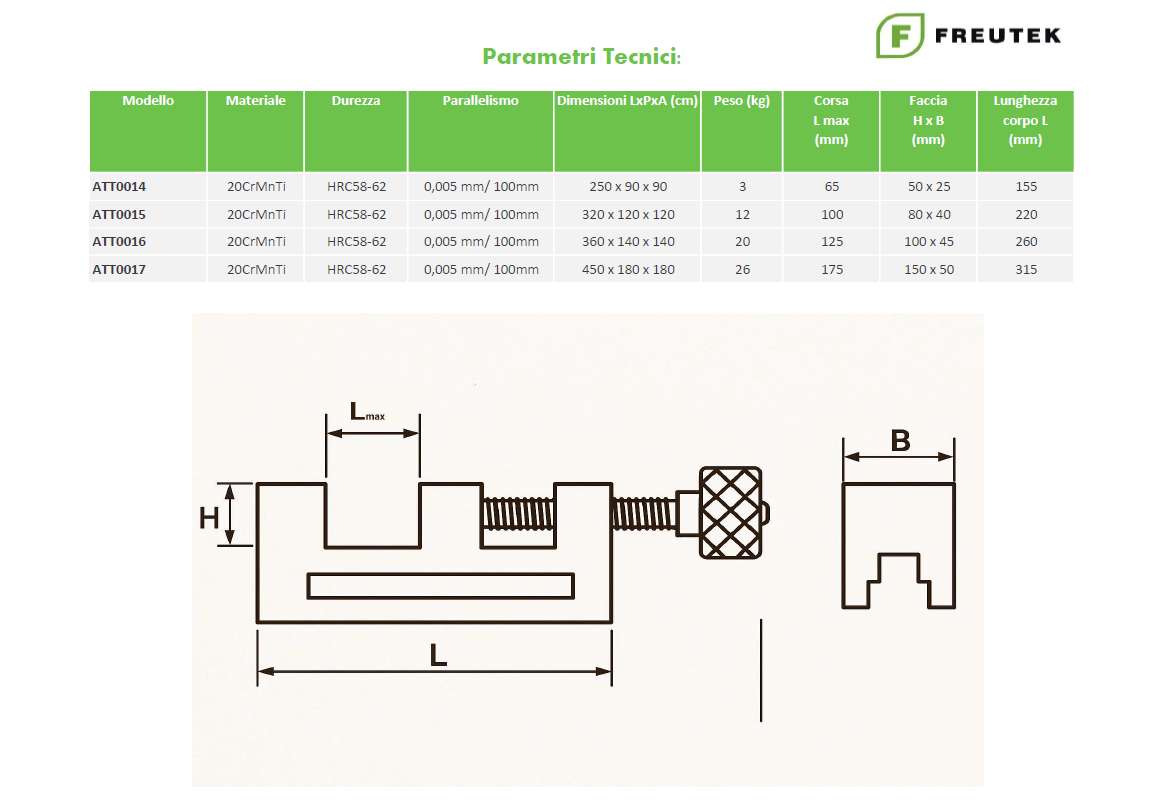

Technical specifications

Model ATT0017
Precision vice type
Material: 20CrMnTi Steel
Hardness HRC58-62
Clamping surface 150 x 50 mm
Maximum opening 175 mm
Total length (excluding screw) 315 mm
Parallelism error ±0.005 mm per 100 mm
Orthogonality error ±0.005 mm
V-grooves Yes, orthogonal and transverse
