ATT0015 - Precision vice (80x100 mm)
Increments of 1
Minimum of 1
Maximum of
Sale price
€139,00 EUR
-100%
Regular price
€0,00 EUR
Regular price
€139,00 EUR
Unit price
per
Couldn't load pickup availability

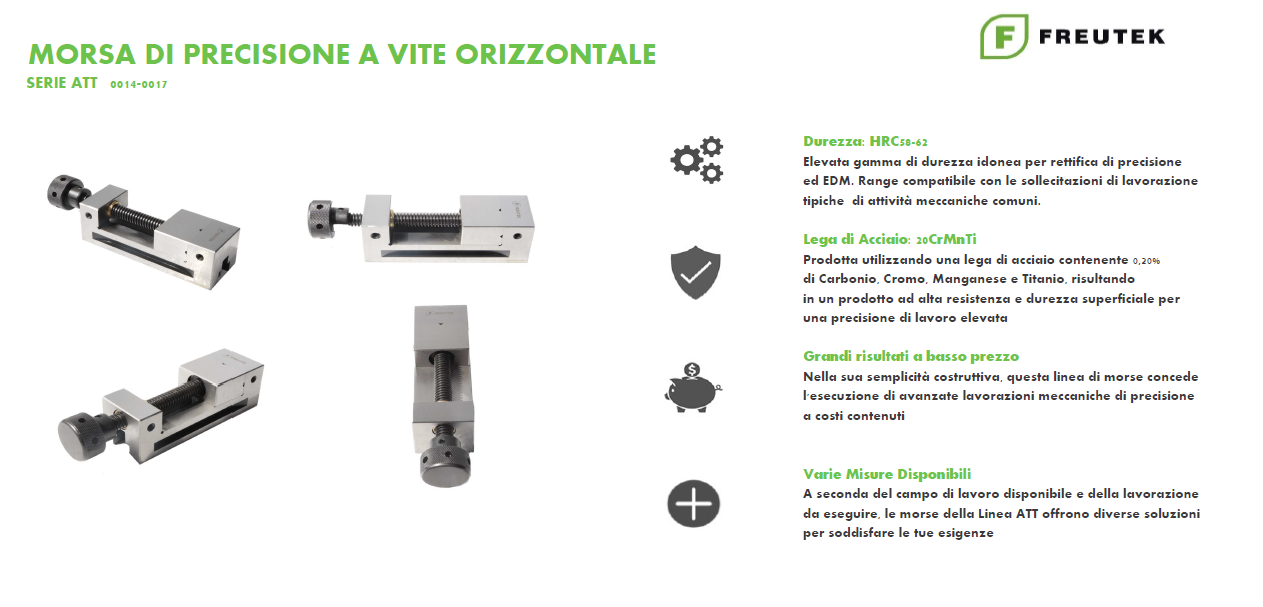

The ATT0015 precision vise is designed to ensure high accuracy in grinding, milling, measuring and electrical discharge machining (EDM). Constructed from 20CrMnTi steel, it offers a hardness of HRC58-62, ensuring strength and durability even in the most demanding applications.
With its useful clamping surface of 80 x 40 mm and a maximum opening of 100 mm, this vice is ideal for clamping medium-sized workpieces with extreme precision. Its parallelism and squareness error of only ±0.005 mm per 100 mm guarantees maximum control of tolerances.
The innovative design includes orthogonal and transverse V-shaped grooves on the movable jaw, allowing for the secure clamping of cylindrical or irregular workpieces without compromising the stability of the fixture. The overall length of the vise, excluding the screw, is 220 mm, making it compact and versatile for a variety of industrial applications.
✔ High precision for grinding, EDM and milling operations
✔ High strength material for long operating life
✔ Extremely low parallelism and squareness error (±0.005 mm)
✔ V-grooves for fixing cylindrical or irregular workpieces

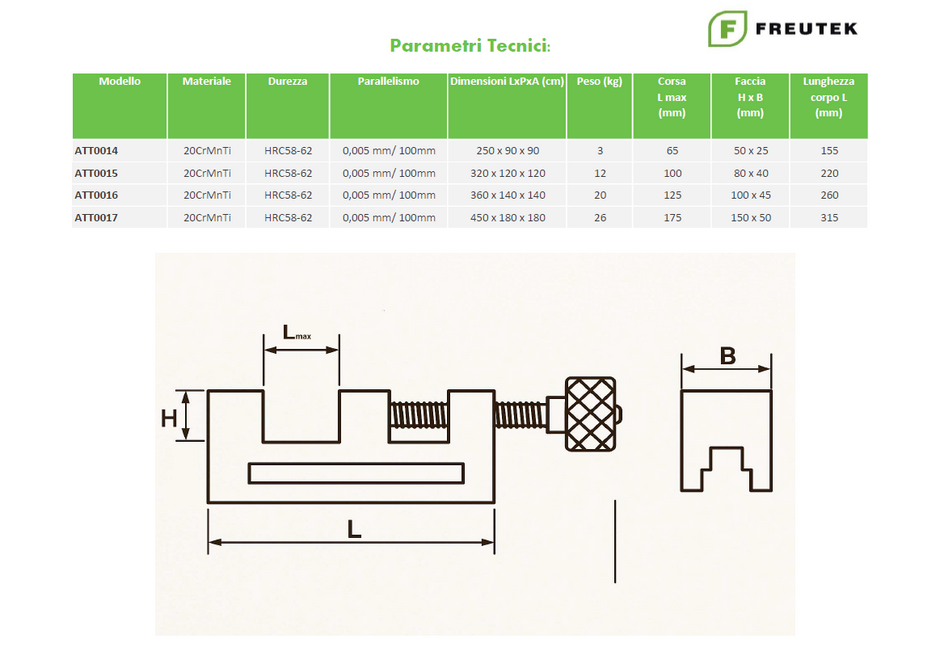

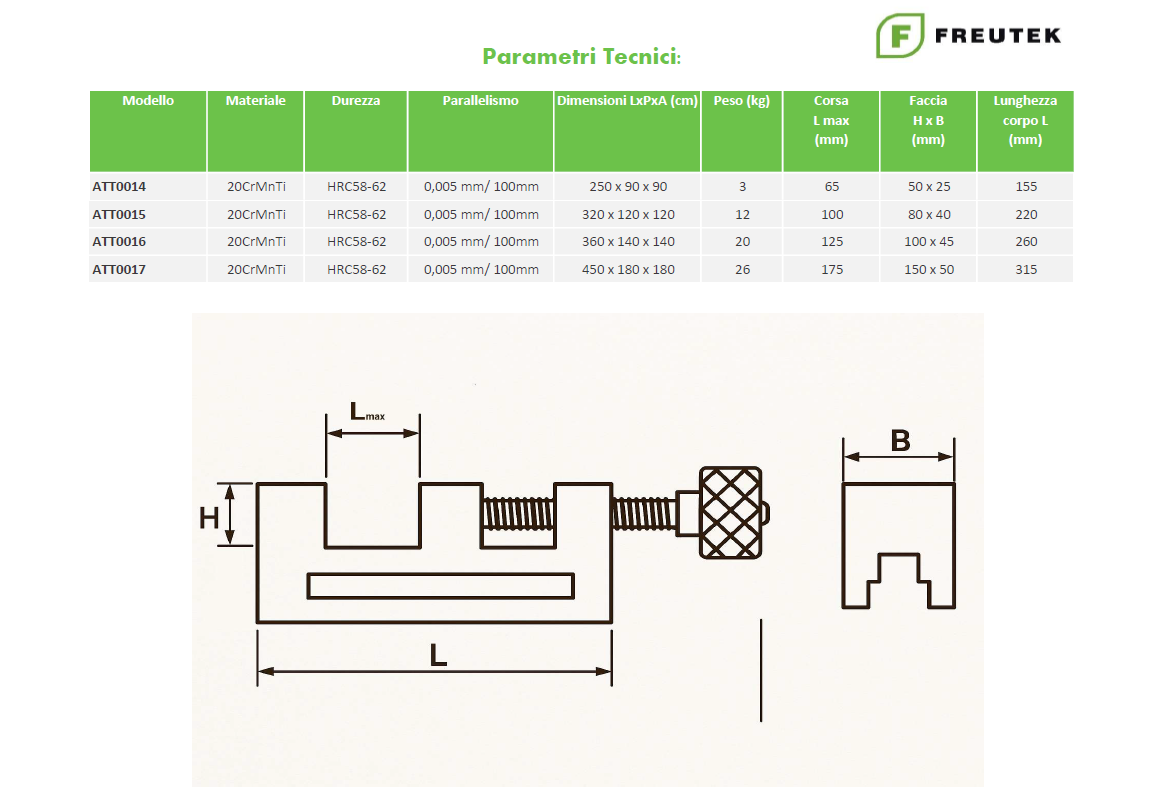

Technical Specifications
Model ATT0015
Type Precision vice
Material Steel 20CrMnTi
Hardness HRC58-62
Clamping surface 80 x 40 mm
Maximum opening 100 mm
Total length (excluding screw) 220 mm
Parallelism error ±0.005 mm every 100 mm
Orthogonality error ±0.005 mm
V-grooves Yes, orthogonal and transverse Item Attributes
| Weight | 12 Kg |
| Length | 120mm |
| Length | 120mm |
| Height | 320 mm |
