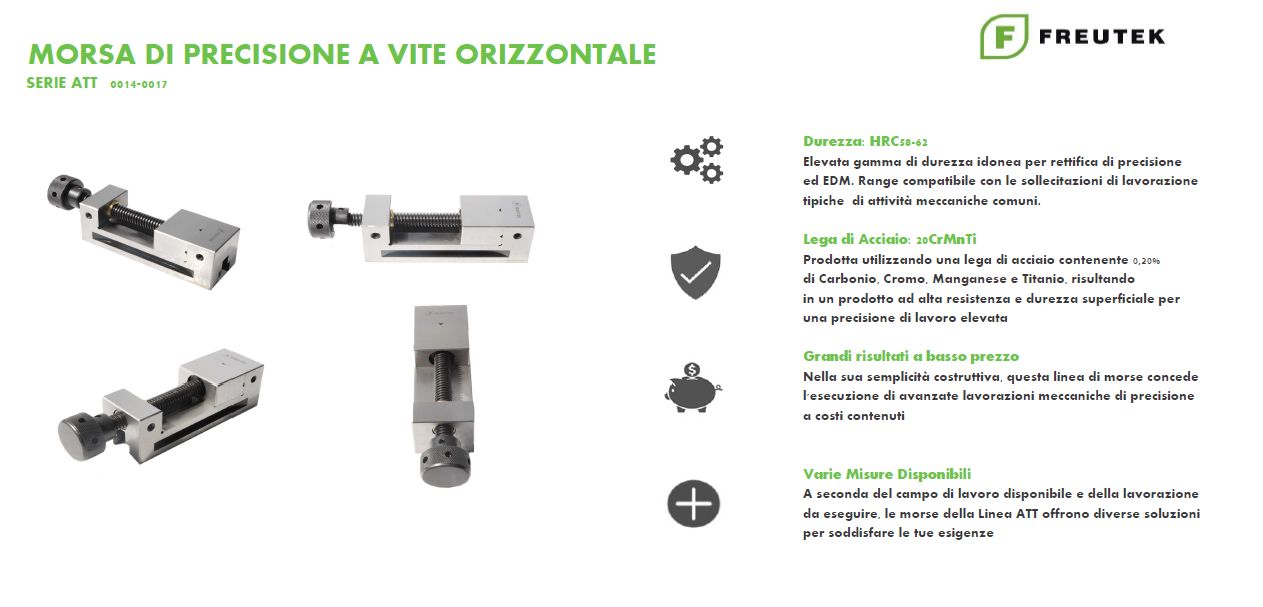

The ATT0014 precision vise is designed to ensure high accuracy in grinding, milling, measuring and electrical discharge machining (EDM). Constructed from 20CrMnTi steel, it offers a hardness of HRC58-62, ensuring strength and durability even in the most demanding applications.
With its useful clamping surface of 50 x 25 mm and a maximum opening of 65 mm, this vice is ideal for clamping small and medium-sized workpieces with extreme precision. Its parallelism and squareness error of only ±0.005 mm per 100 mm guarantees maximum control of tolerances.
The innovative design includes orthogonal and transverse V-shaped grooves on the movable jaw, allowing for the secure clamping of cylindrical or irregular workpieces without compromising the stability of the fixture. The overall length of the vise, excluding the screw, is 155 mm, making it compact and versatile for a variety of industrial applications.
✔ High precision for grinding, EDM and milling operations
✔ High strength material for long operating life
✔ Extremely low parallelism and squareness error (±0.005 mm)
✔ V-grooves for fixing cylindrical or irregular workpieces

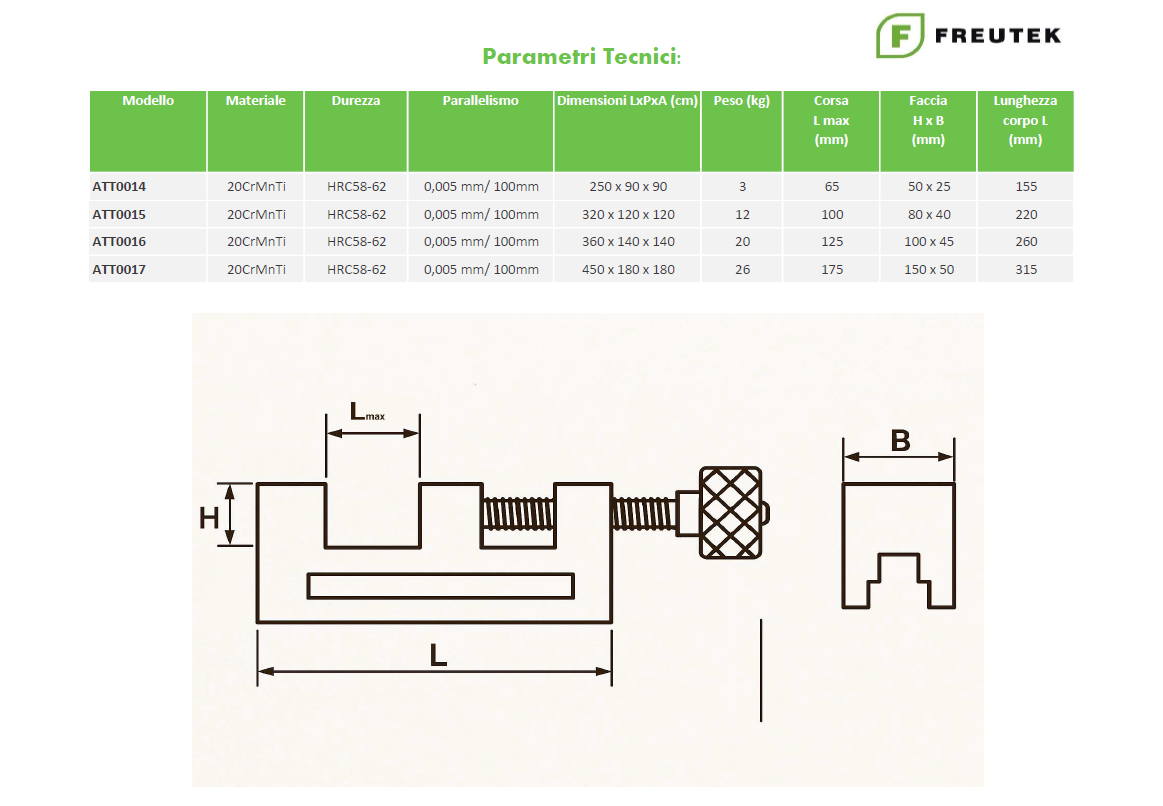

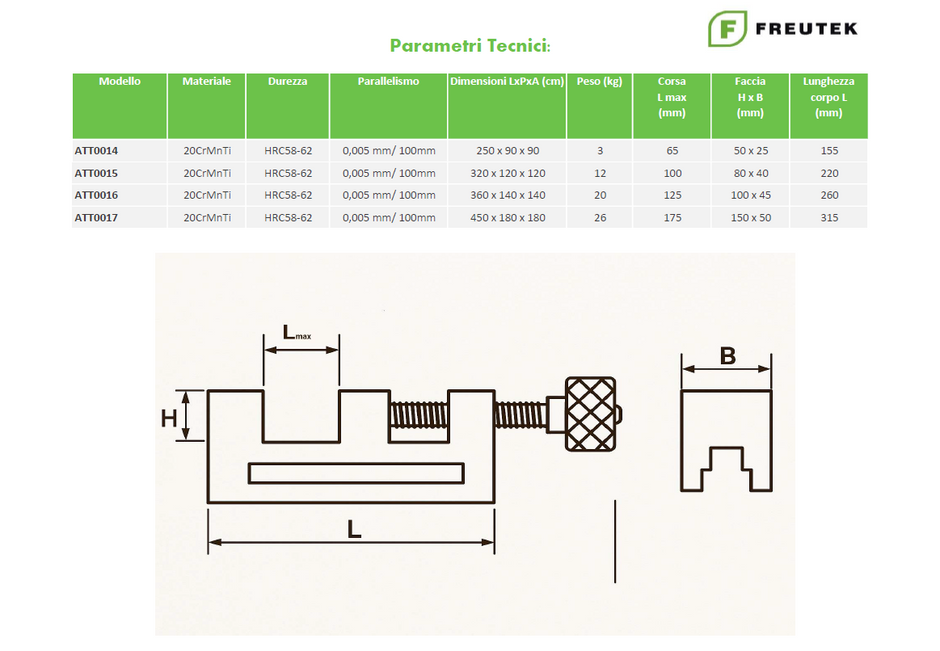

Technical Specifications
Model ATT0014
Type Precision vice
Material Steel 20CrMnTi
Hardness HRC58-62
Clamping surface 50 x 25 mm
Maximum aperture 65 mm
Total length (excluding screw) 155 mm
Parallelism error ±0.005 mm every 100 mm
Orthogonality error ±0.005 mm
V-grooves Yes, orthogonal and transverse
