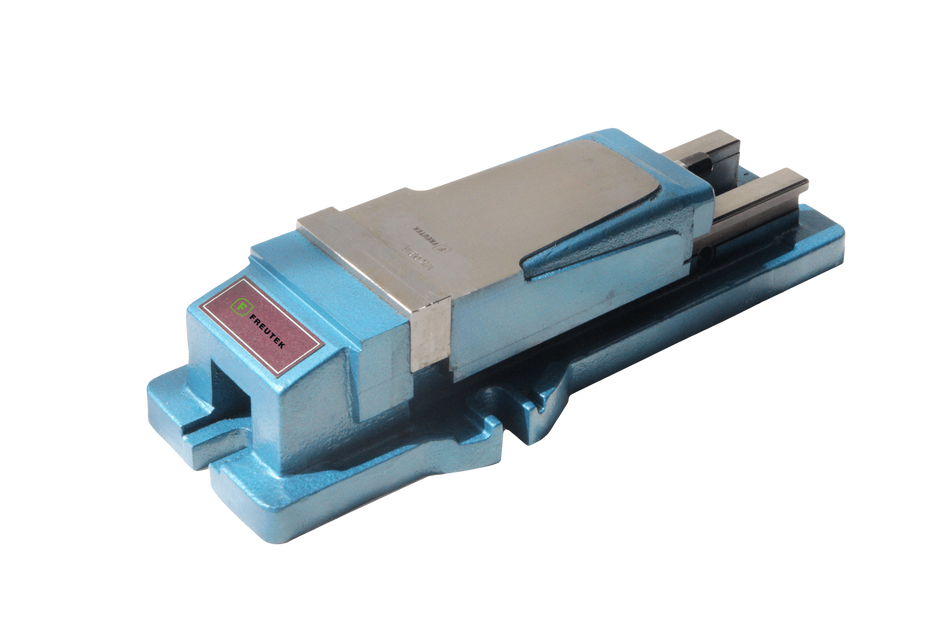

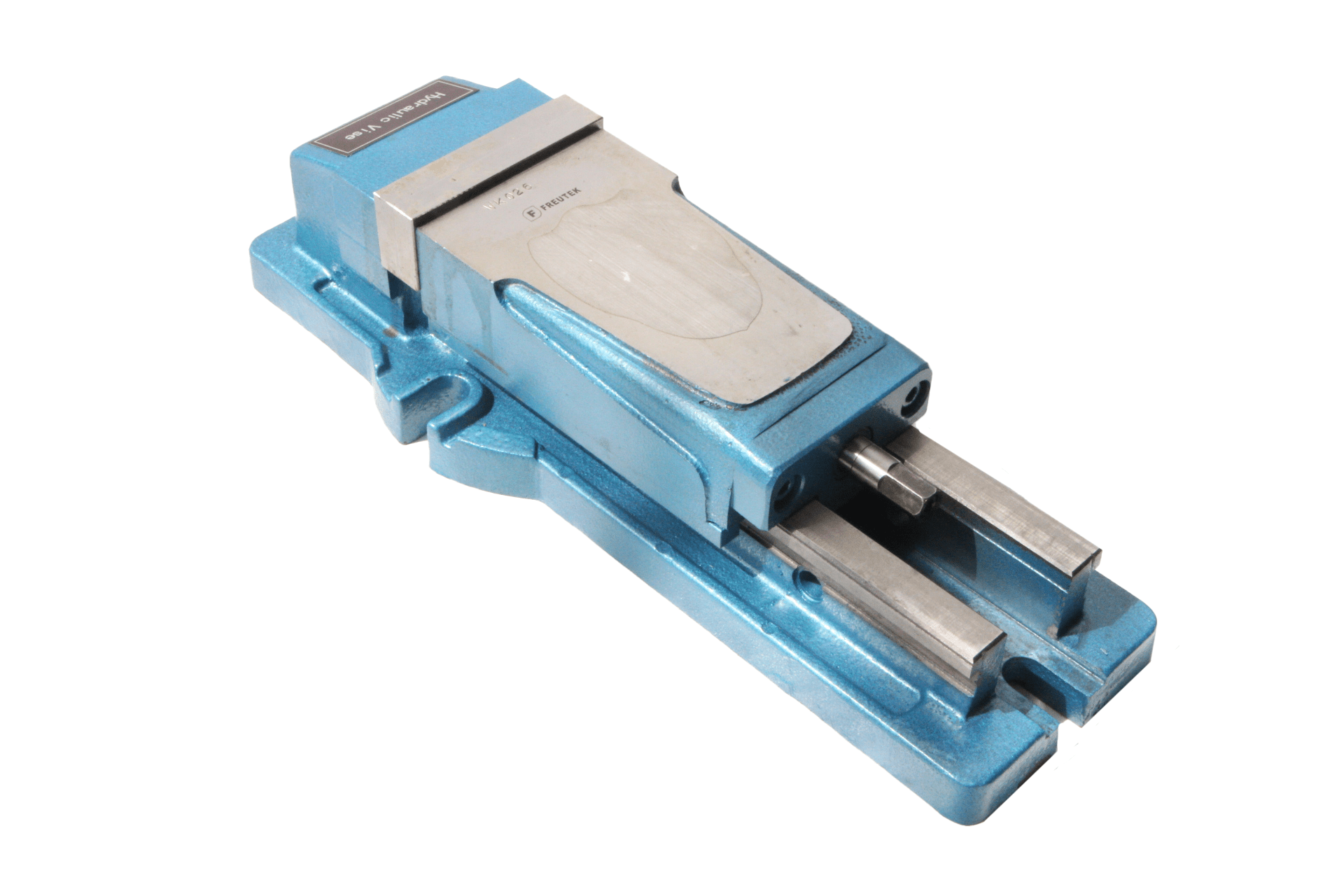

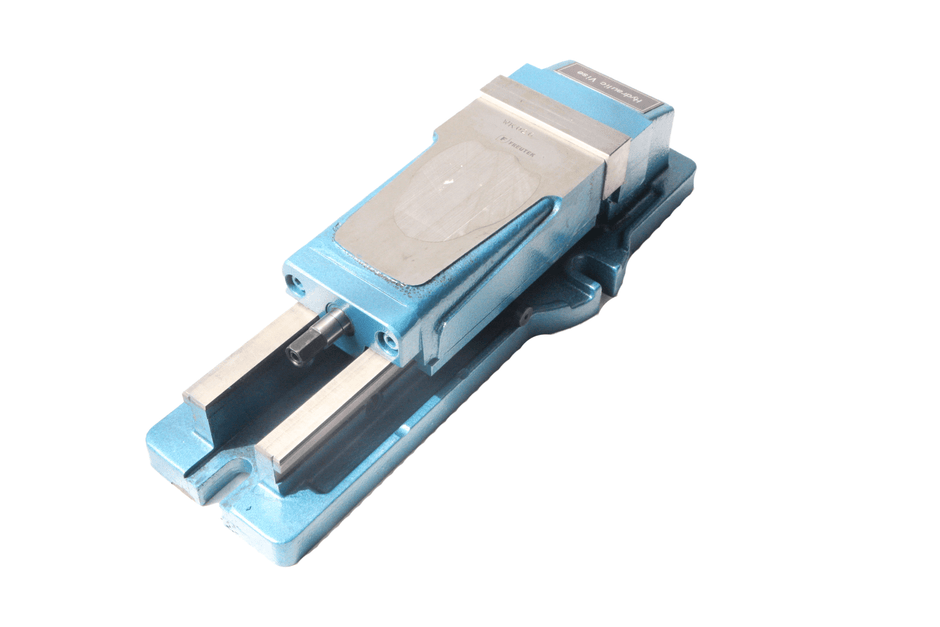

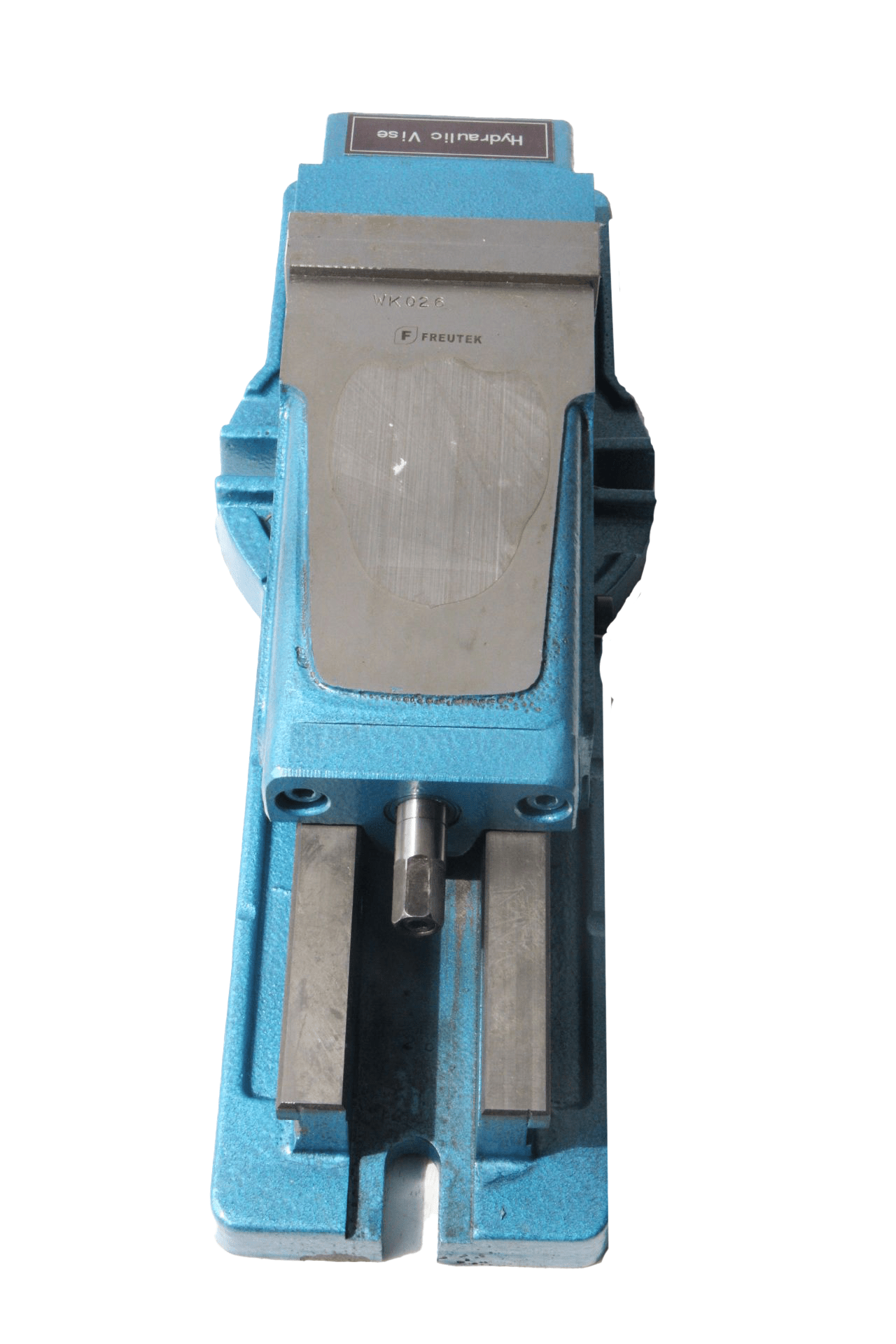

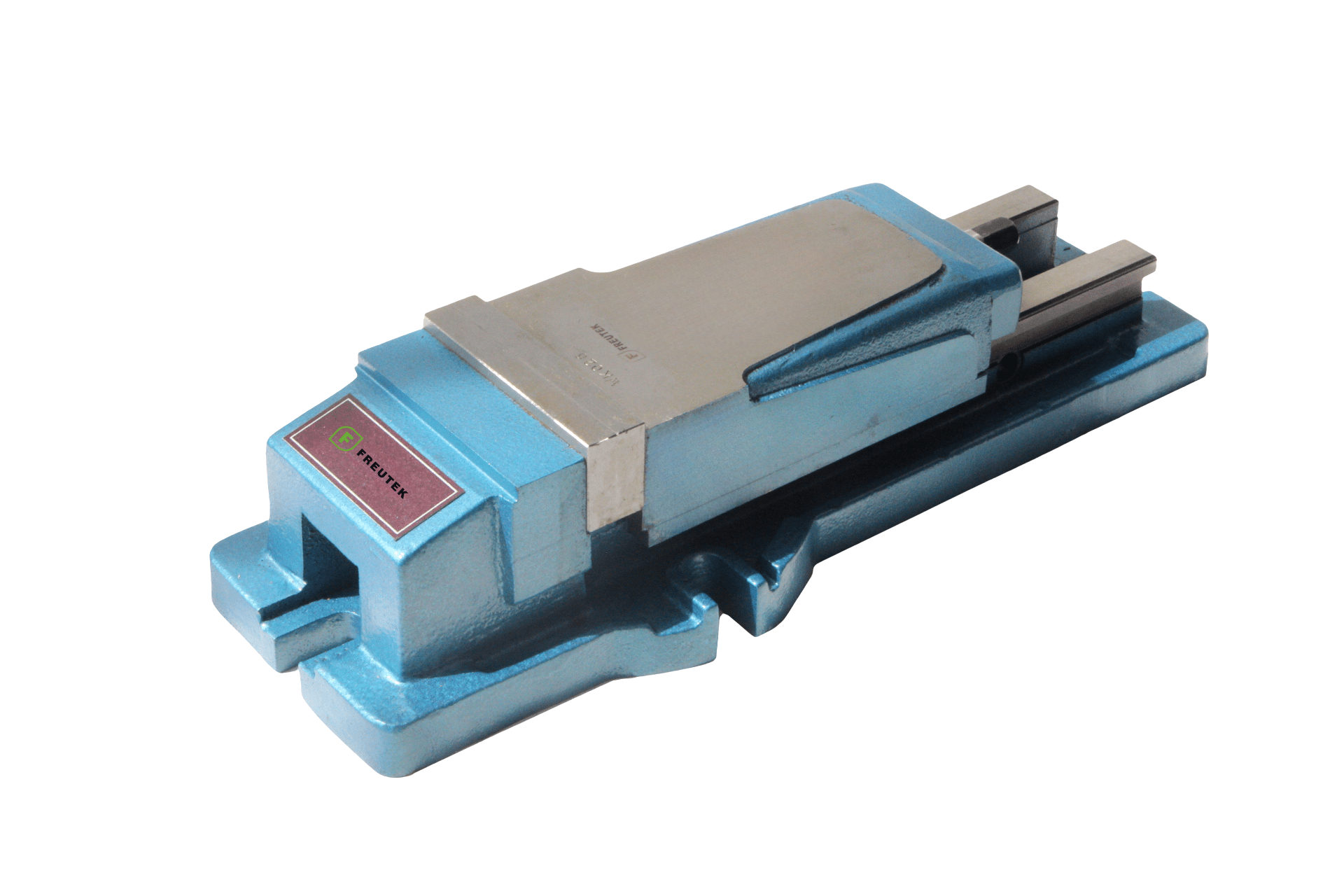

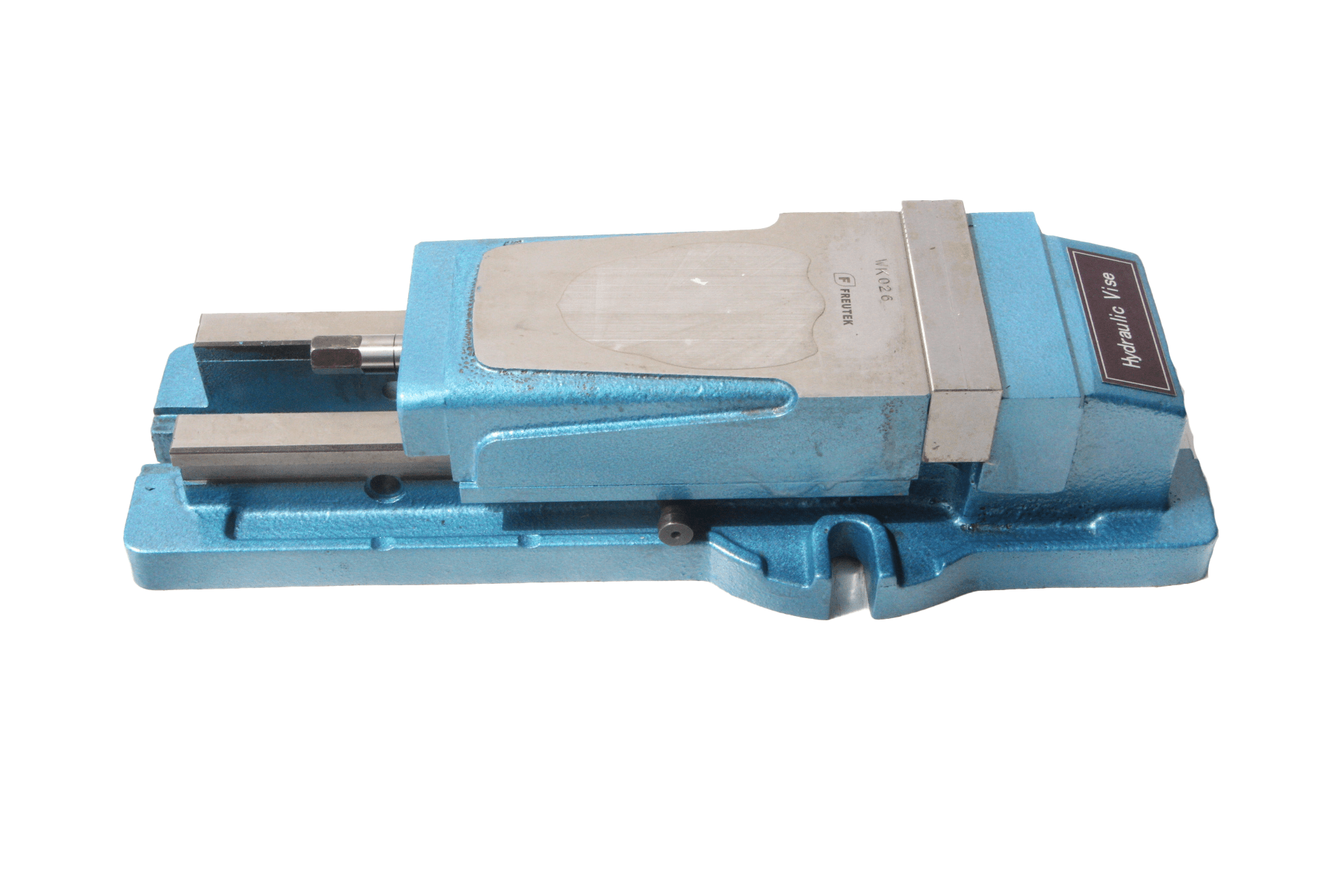

ATT0013 - 6'' Hydraulic Clamp - 4500 kg

The ATT0013 hydraulic vise is the ideal solution for high-precision machining on milling machines, CNCs, and other machine tools. Thanks to its advanced hydraulic system, it offers a clamping force of up to 4,500 kg, ensuring stability, reliability, and significantly reduced manual effort.
Made of cast iron, it ensures high structural rigidity, minimizing vibration and deformation during machining. The effective clamping surface of 150 x 51 mm per jaw and the 300 mm stroke make it perfect for clamping workpieces of various sizes.
The design includes 240 mm clamping slots, allowing for stable mounting on a workbench. With an overall height of 133 mm, this vise is compatible with numerous machine configurations, making it a versatile option for machine shops and industrial facilities. Additionally, the table-to-workpiece clearance of just 82 mm minimizes available Z-axis travel.

✔ Hydraulic clamping up to 4,500 kg for high pressure machining
✔ Cast iron construction for strength and durability
✔ Long 300 mm stroke for greater operational versatility
✔ Optimized design with stable fixing on the workbench

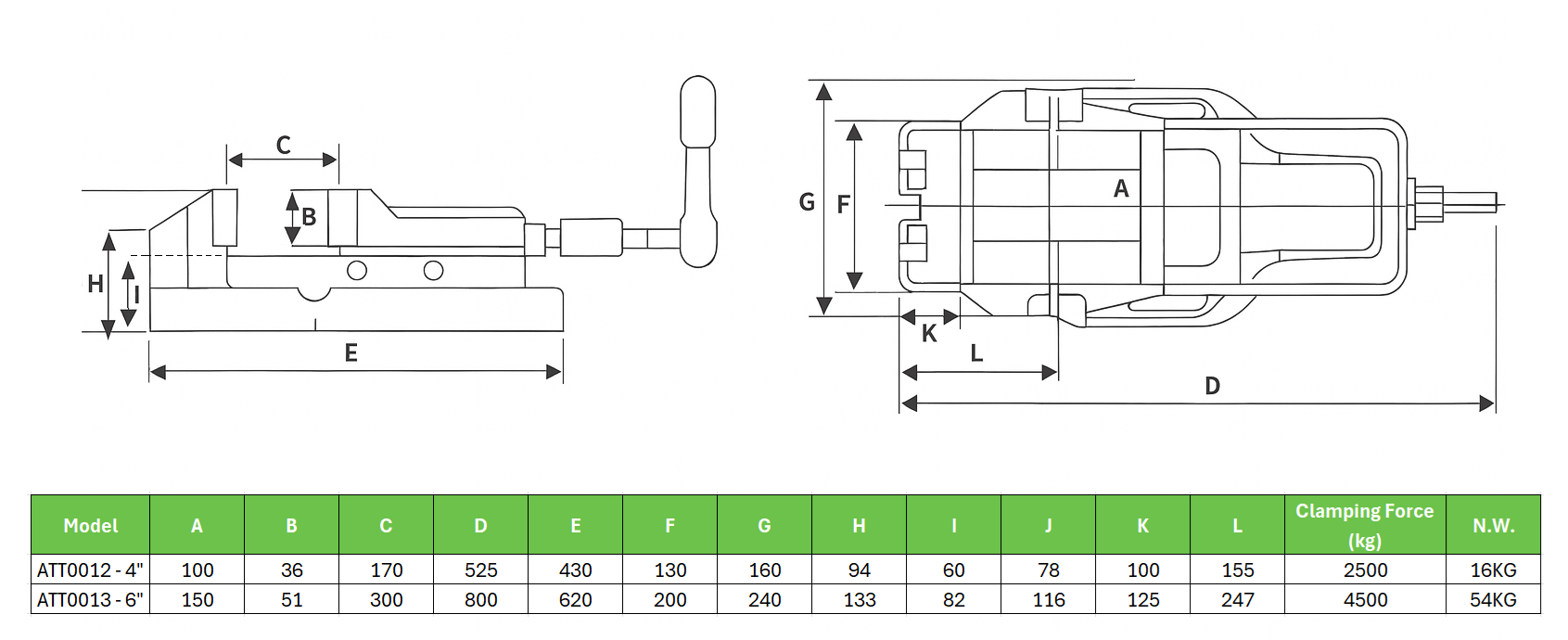

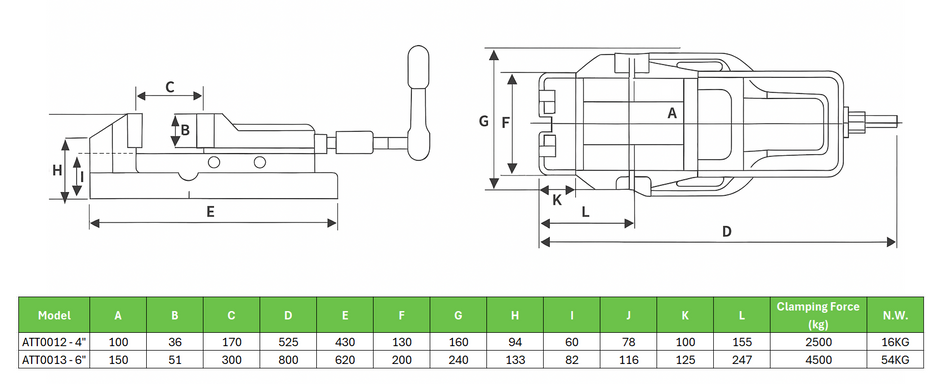

Technical specifications

Model ATT0013
Hydraulic vice type
Material: Cast Iron
Clamping surface for jaw 200 x 51 mm
Stroke 300 mm
Clamping force Up to 4,500 kg
Total length 800 mm
Base monoblock length 620 mm
Distance between mounting slots 240 mm
Total height from worktop 133 mm
Distance from the workpiece 82 mm
