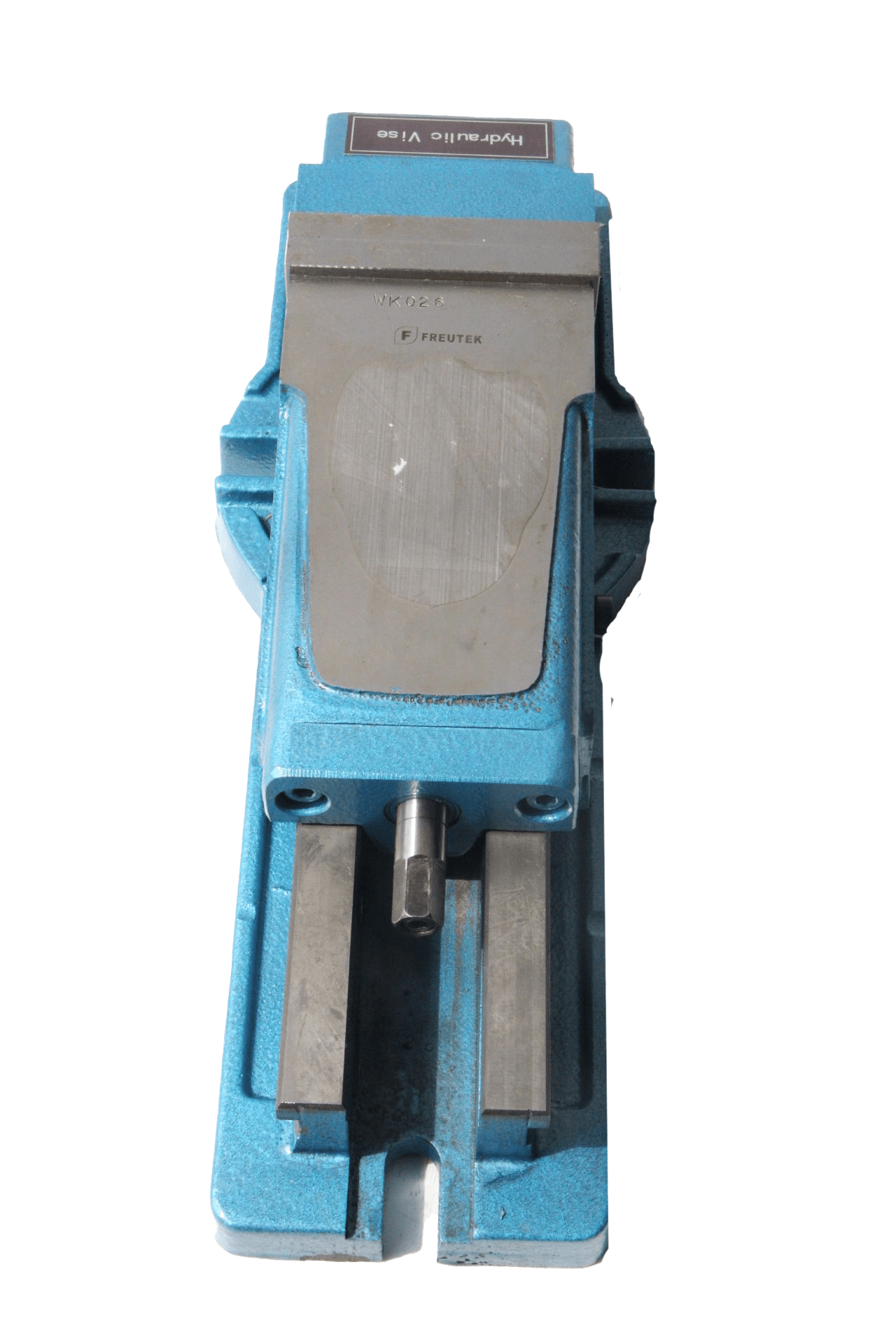

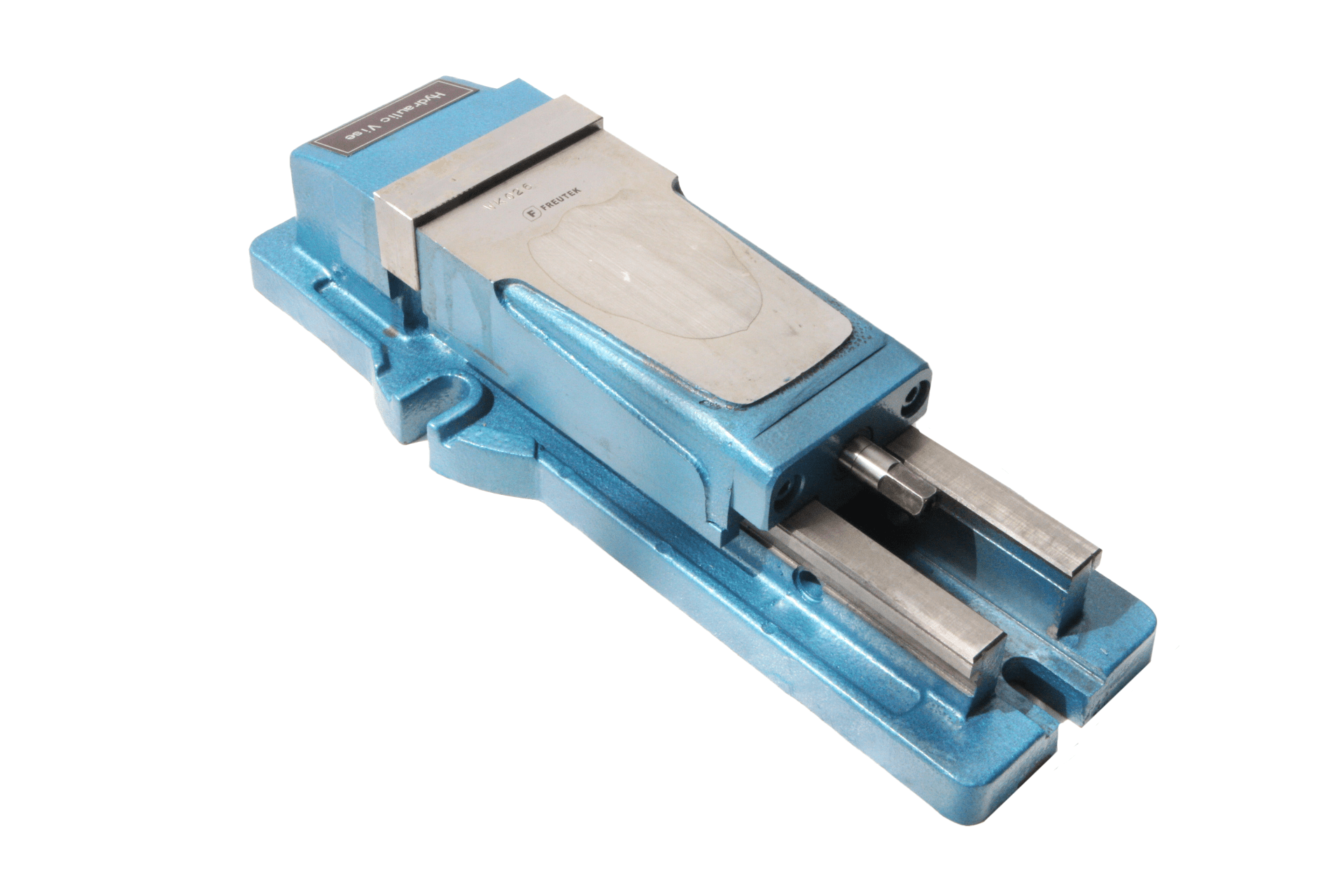

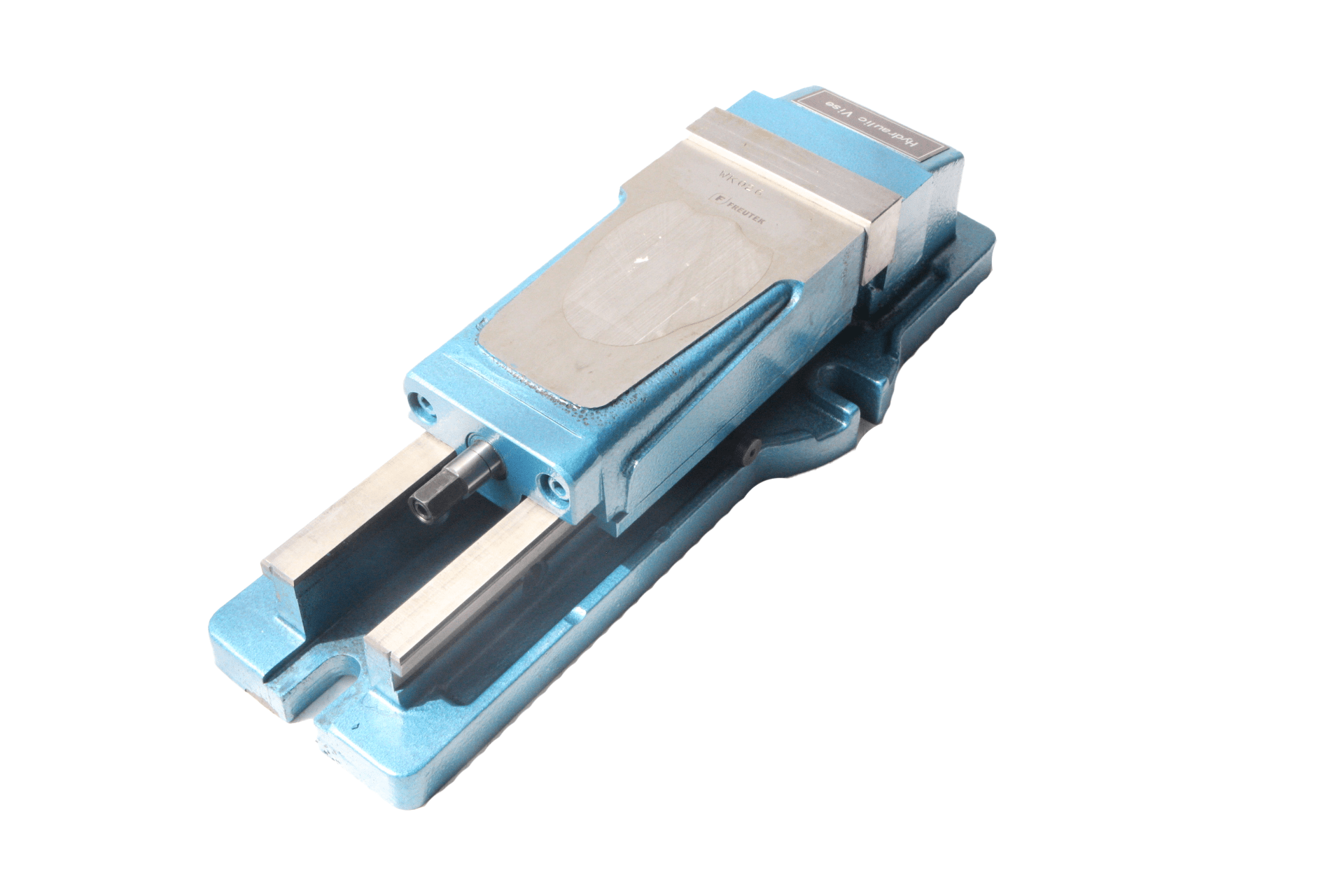

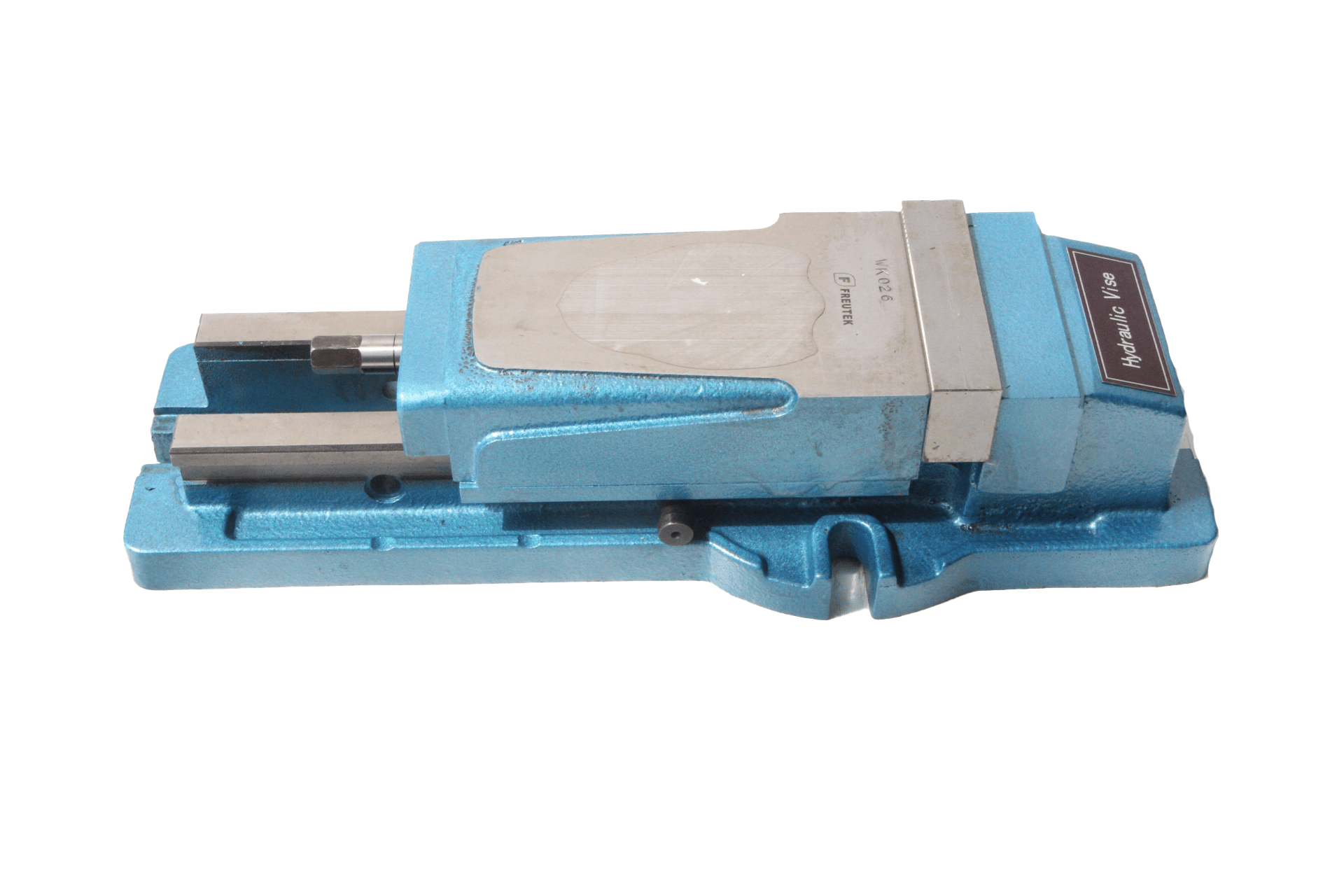

ATT0012 - 4'' Hydraulic Clamp - 2500 kg

The ATT0012 hydraulic vise is designed to provide powerful and stable clamping in milling, CNC, and machine tool operations. Its hydraulic system offers a clamping force of up to 2,500 kg, reducing manual effort and ensuring maximum precision and repeatability.
Made of cast iron, it ensures high structural rigidity, minimizing vibration and deformation during machining. The effective clamping surface of 100 x 36 mm per jaw and the 170 mm stroke make it suitable for various industrial applications.
The compact design and 160 mm mounting holes allow for secure attachment to the workbench, while the overall height of 94 mm facilitates integration with various machine configurations. Furthermore, the table-to-workpiece distance of just 60 mm minimizes the reduction in available Z-axis travel.

✔ Hydraulic clamping up to 2,500 kg for high pressure work
✔ Cast iron construction for superior strength and durability
✔ Long 170mm stroke for greater versatility
✔ Compact design with stable attachment to the workbench

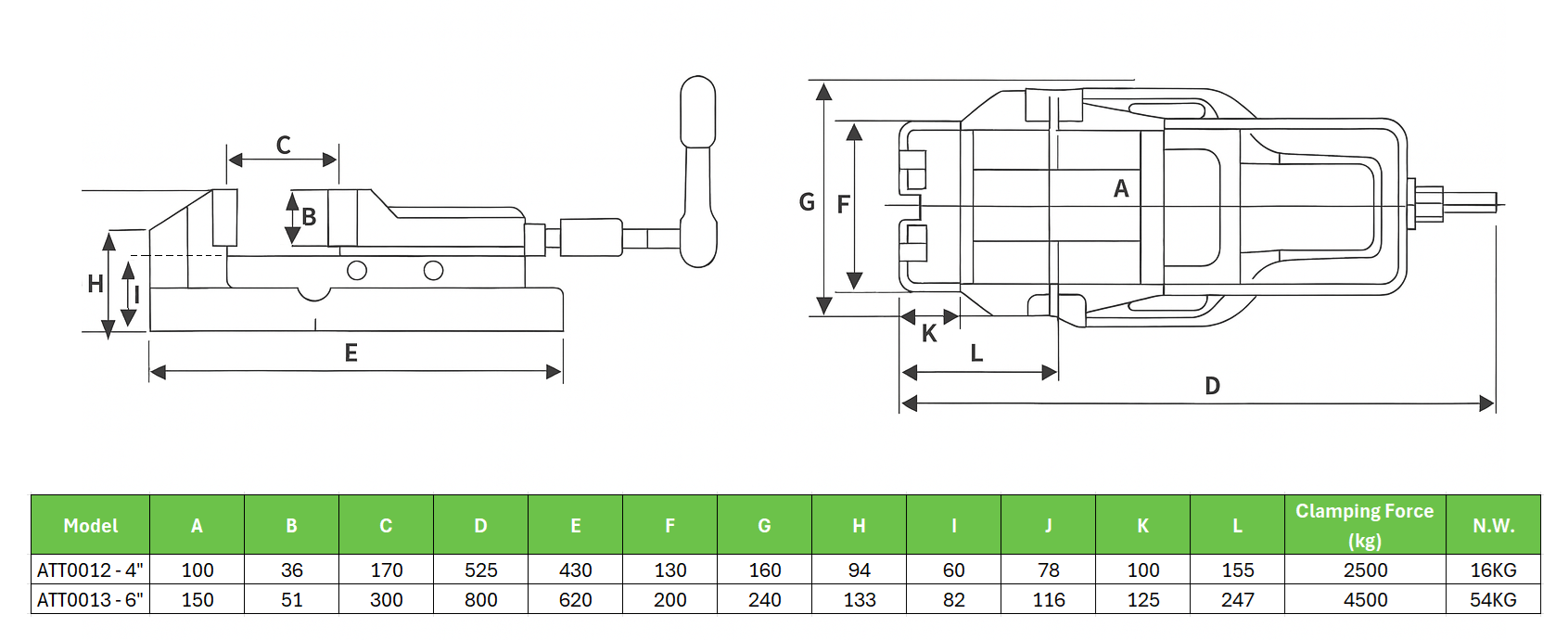

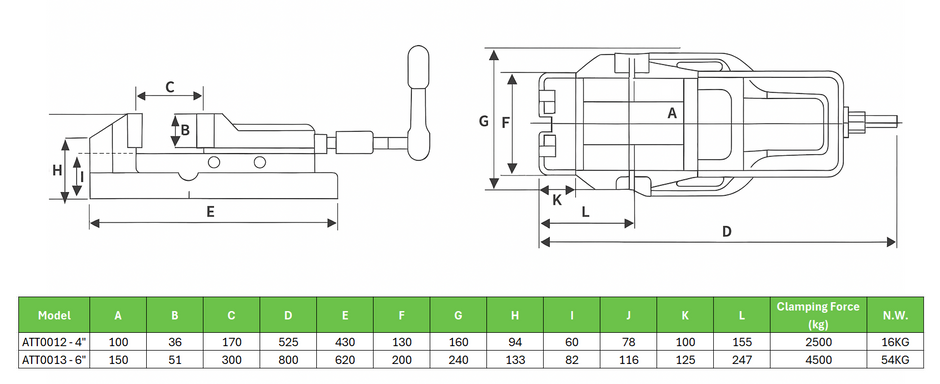

Technical specifications

Model ATT0012
Hydraulic vice type
Material: Cast Iron
Clamping surface for jaw 130 x 36 mm
Stroke 170 mm
Clamping force Up to 2,500 kg
Total length 525 mm
Base monoblock length 430 mm
Distance between mounting slots 160 mm
Total height from worktop 94 mm
Distance between the workpiece and the work surface 60 mm
