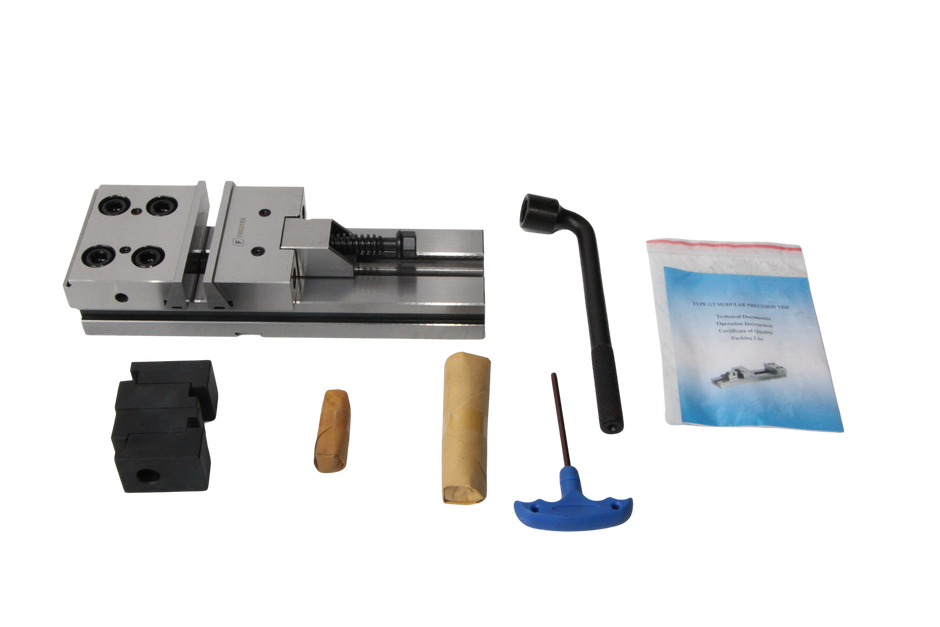

ATT0011 - CNC vice - 5000 kg (300 mm)
Increments of 1
Minimum of 1
Maximum of
Sale price
€520,00 EUR
-100%
Regular price
€0,00 EUR
Regular price
€520,00 EUR
Unit price
per
Couldn't load pickup availability

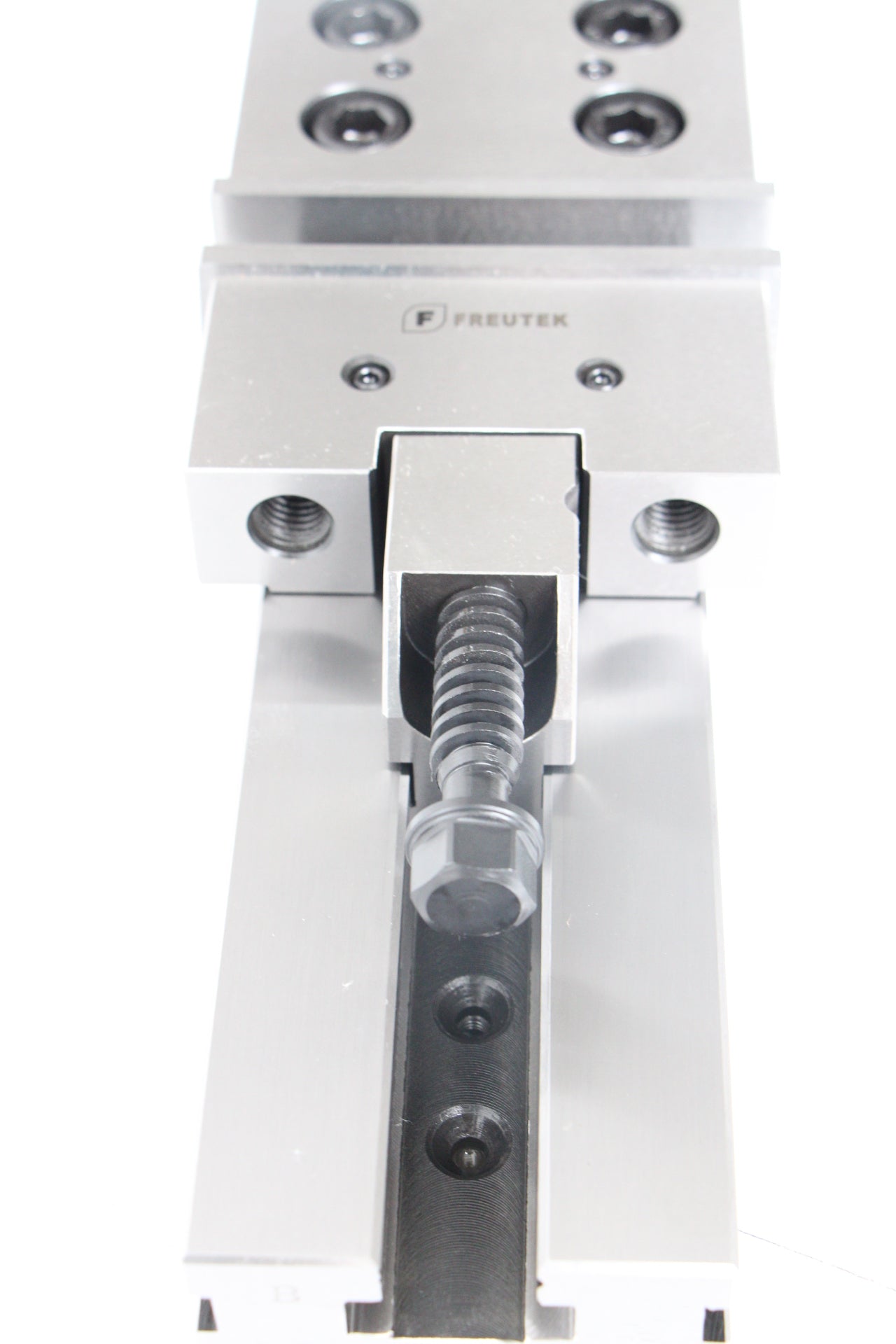

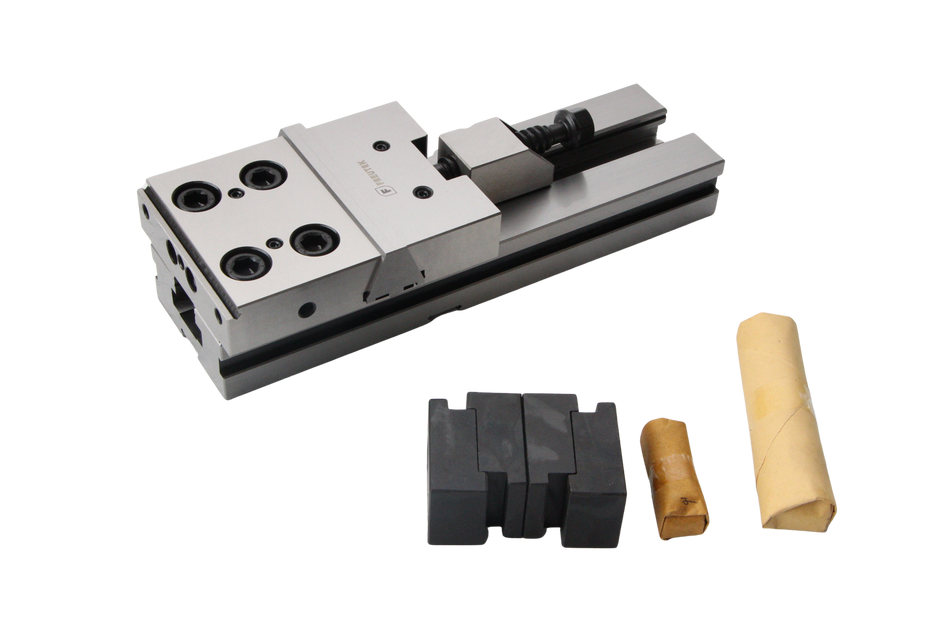

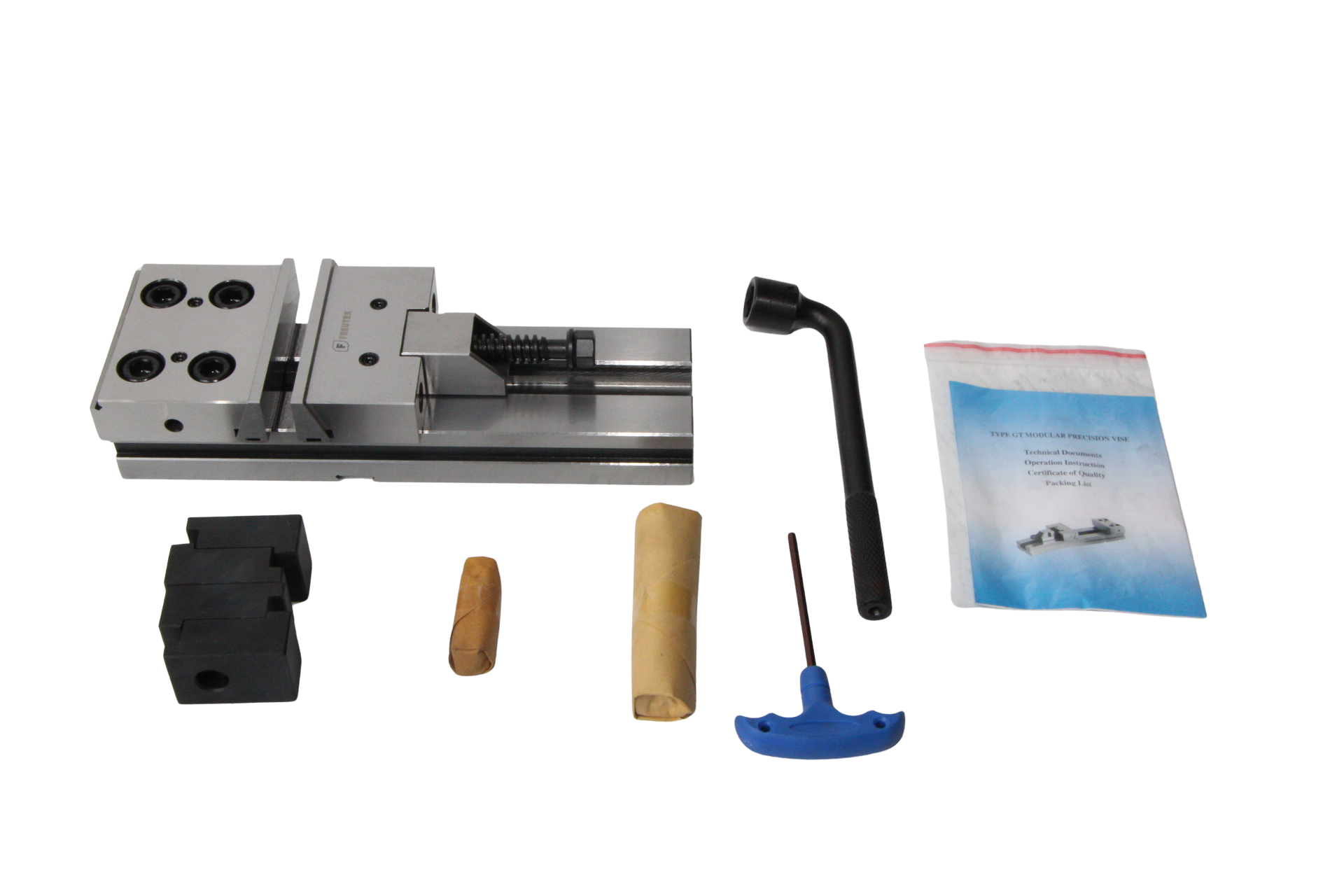

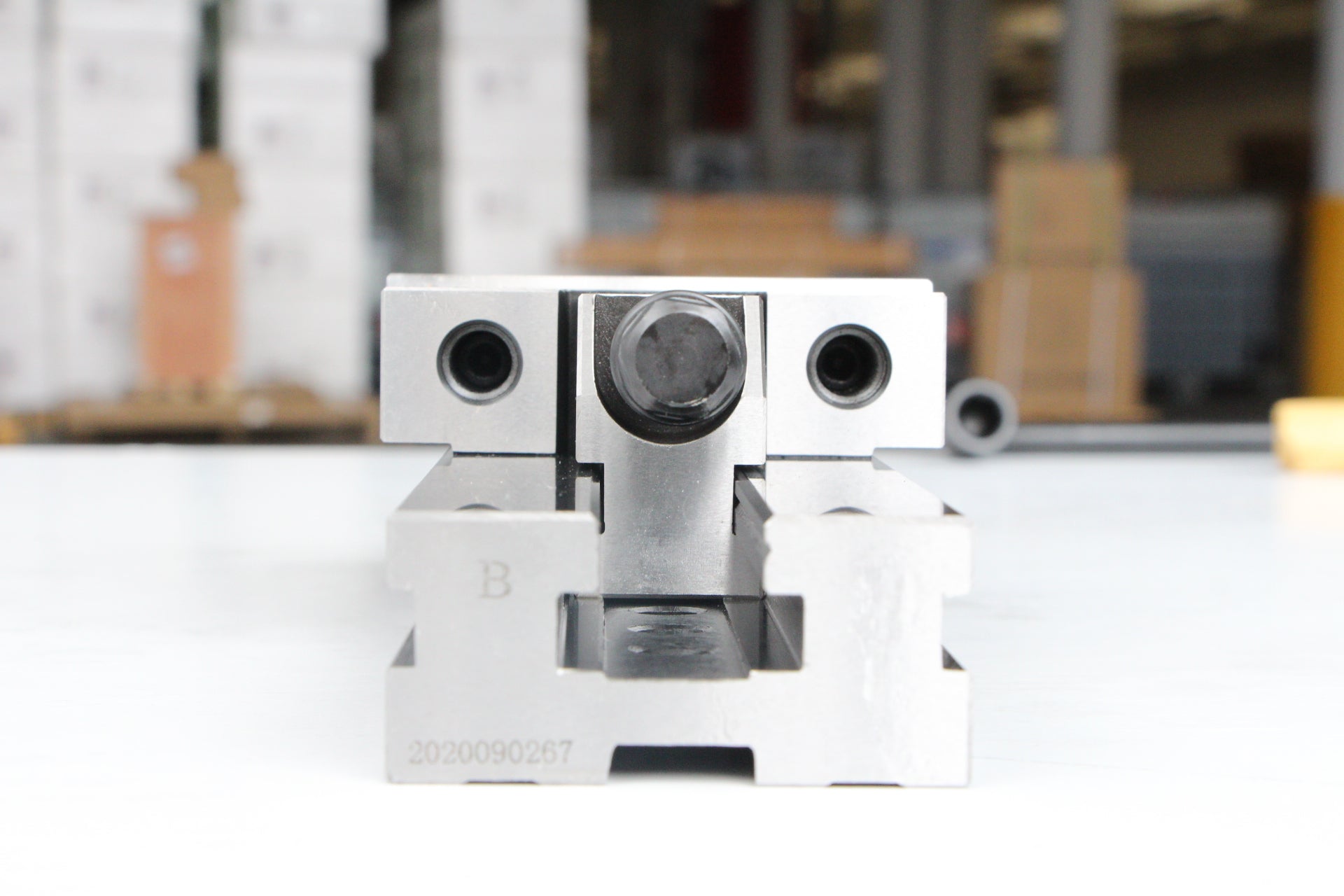

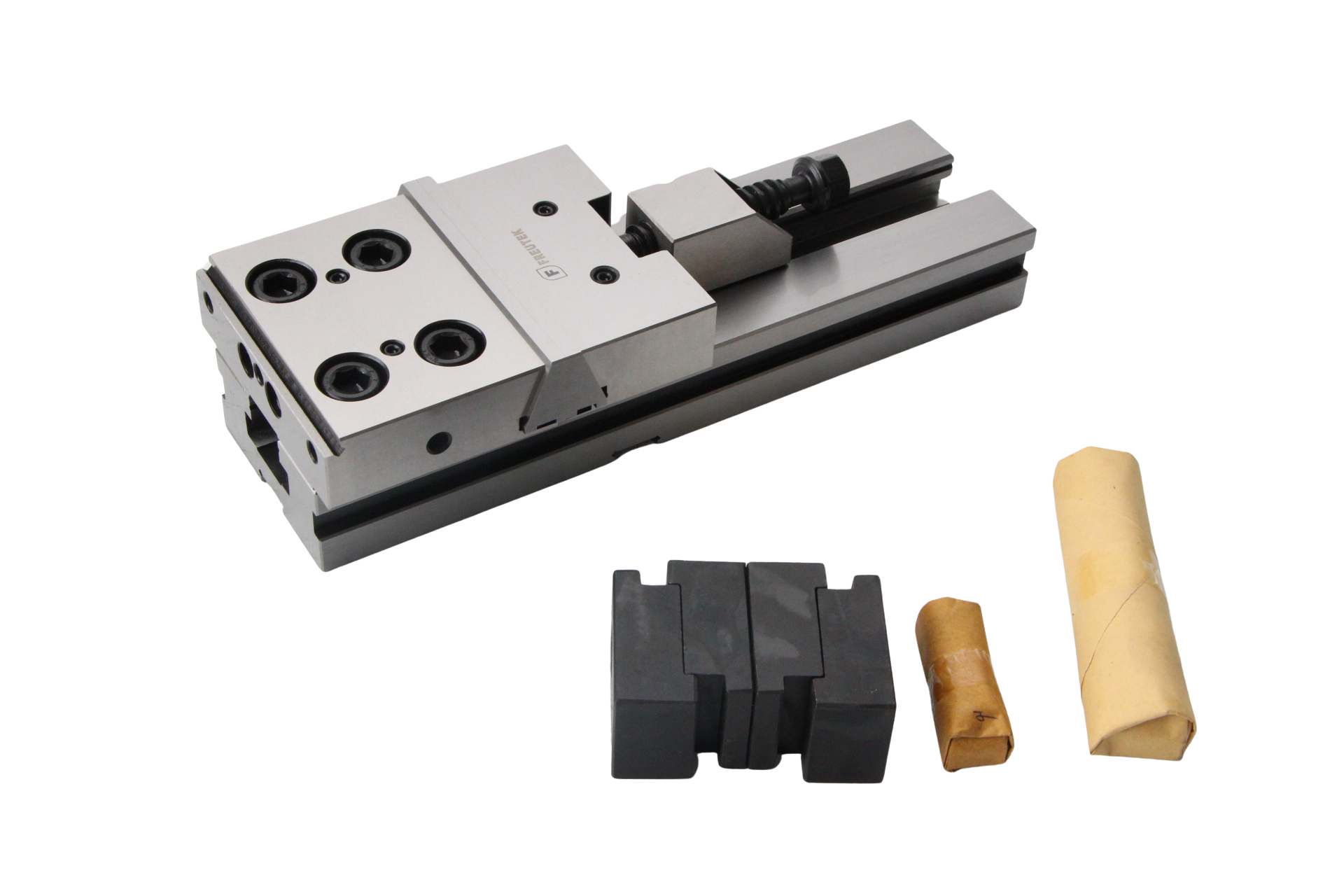

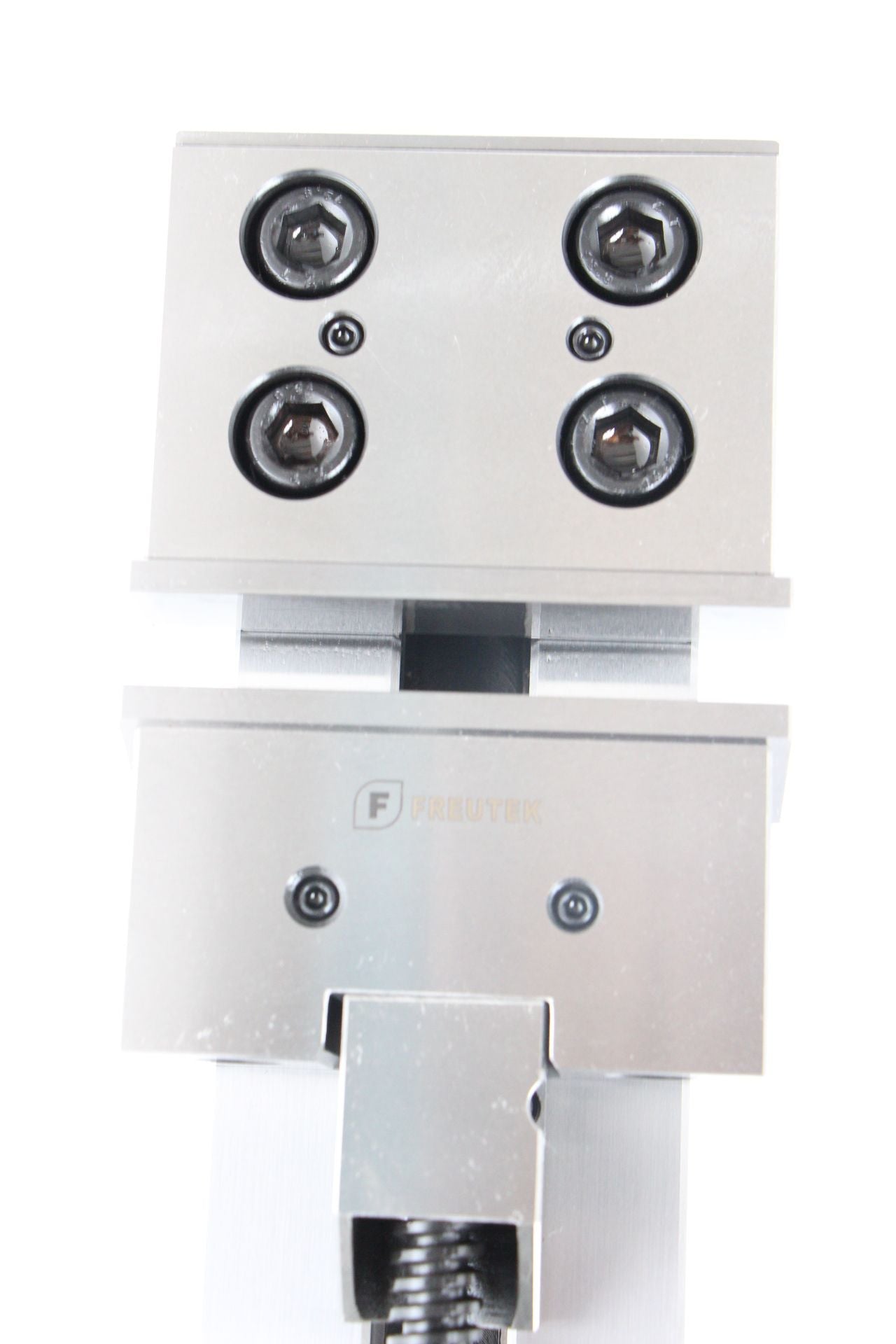

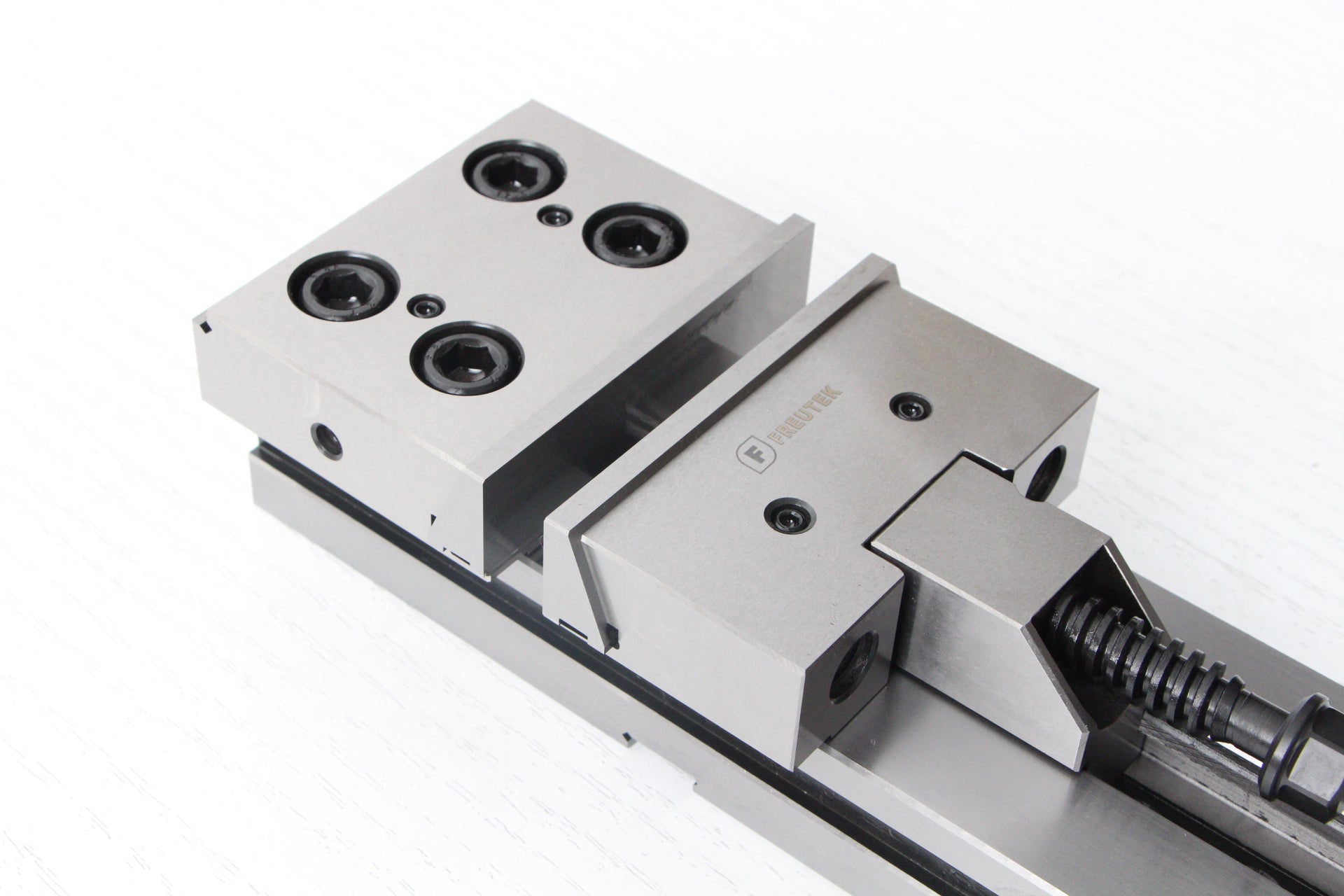

The ATT0011 precision vise is ideal for applications on CNC machining centers and high-precision machinery, ensuring high clamping force and a solid structure for flawless machining.
Featuring a 150 x 50 mm clamping surface and an extended stroke of 300 mm, this vise is designed to handle medium-sized workpieces with a maximum clamping force of 5 tons. The 4-clamp clamping system ensures perfect workpiece stability, reducing vibrations and ensuring maximum precision.
Made of 20CrMnTi alloy, it offers excellent structural rigidity and resistance to mechanical stress. With a hardness of HRC58-62, it is able to maintain tight tolerances even after prolonged use.
✔ Clamping force up to 5 tons
✔ 300 mm stroke for working on larger pieces
✔ Reinforced structure to reduce bending and vibrations
✔ Movable jaw system for quick workpiece change

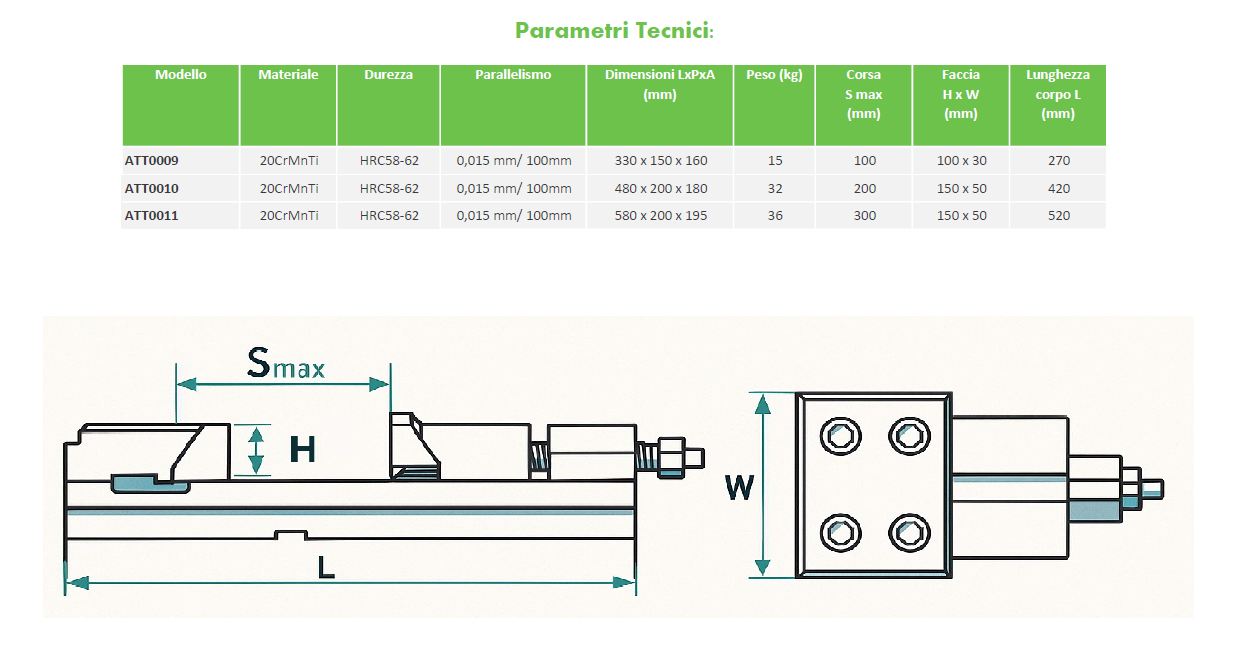

Technical Specifications
Model ATT0011
Type Precision vice
Material Alloy 20CrMnTi
Clamping surface 150 x 50 mm
Stroke 300mm
Clamping force Up to 5 tons
4-clamp locking system
Hardness HRC58-62
Structure Fixed and mobile jaw | Weight | 32 Kg |
| Length | 580 mm |
| Length | 200mm |
| Height | 180mm |
