ATT0010 - CNC vice - 5000 kg (200 mm)
Increments of 1
Minimum of 1
Maximum of
Sale price
€478,00 EUR
-100%
Regular price
€0,00 EUR
Regular price
€478,00 EUR
Unit price
per
Couldn't load pickup availability

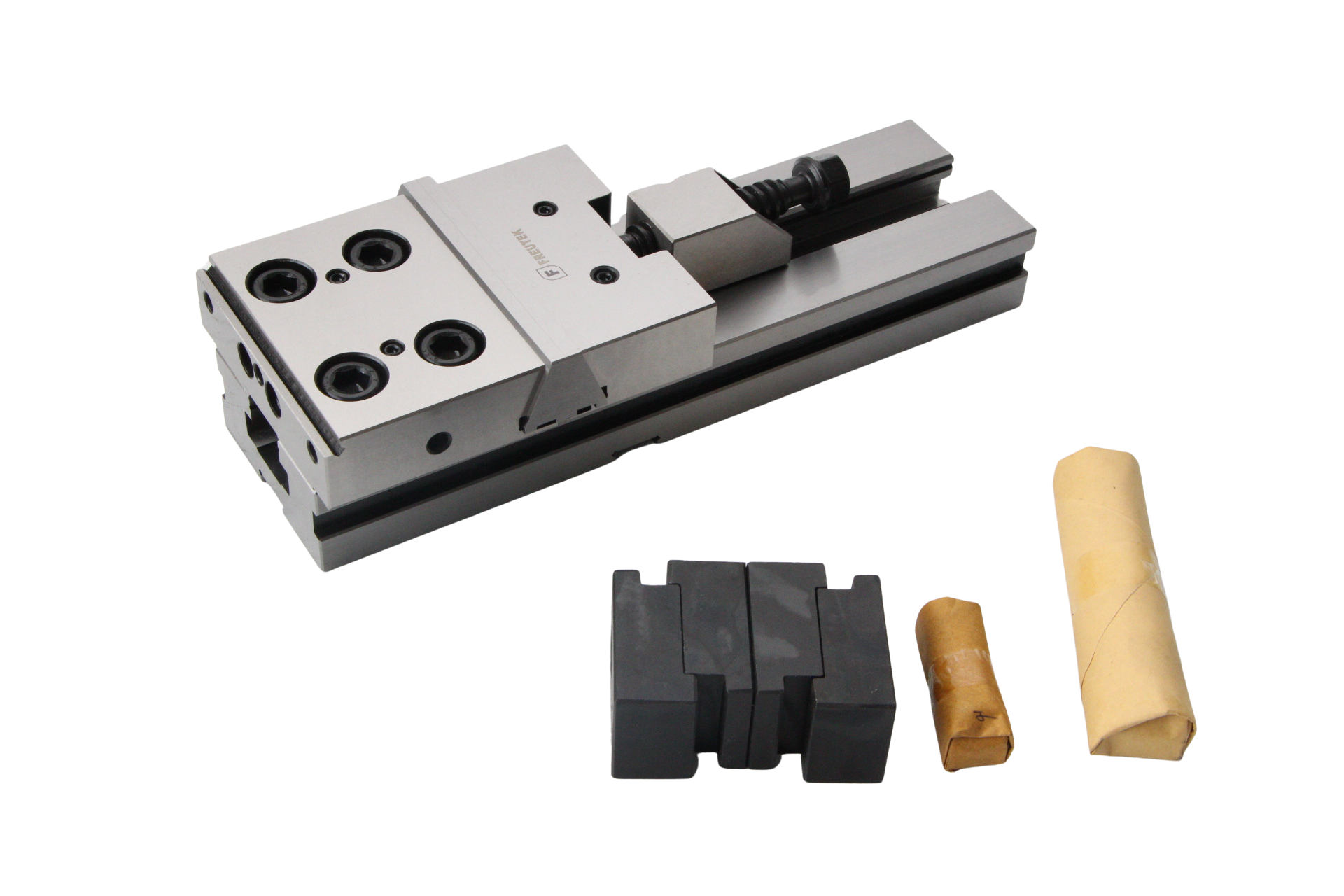

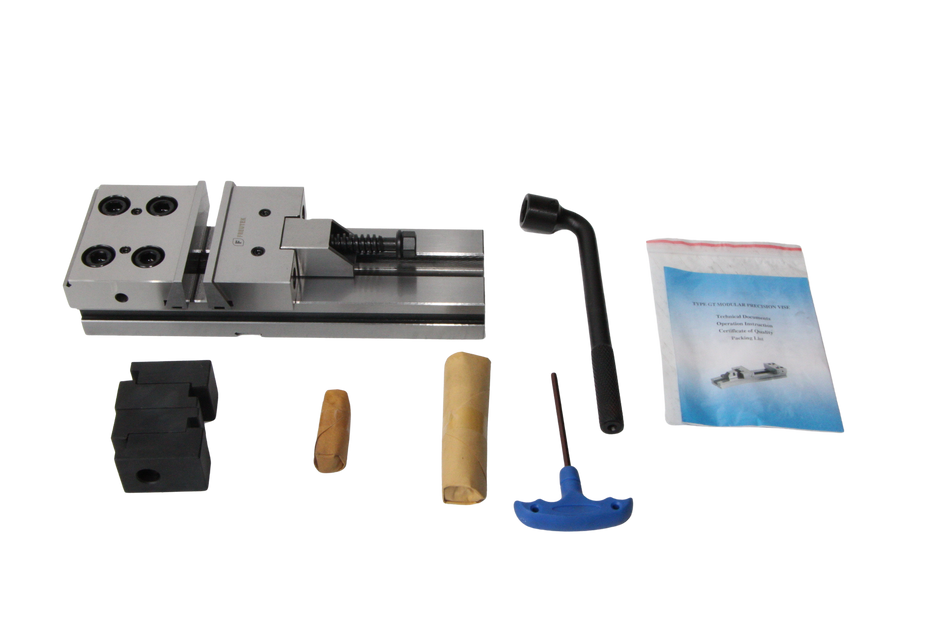

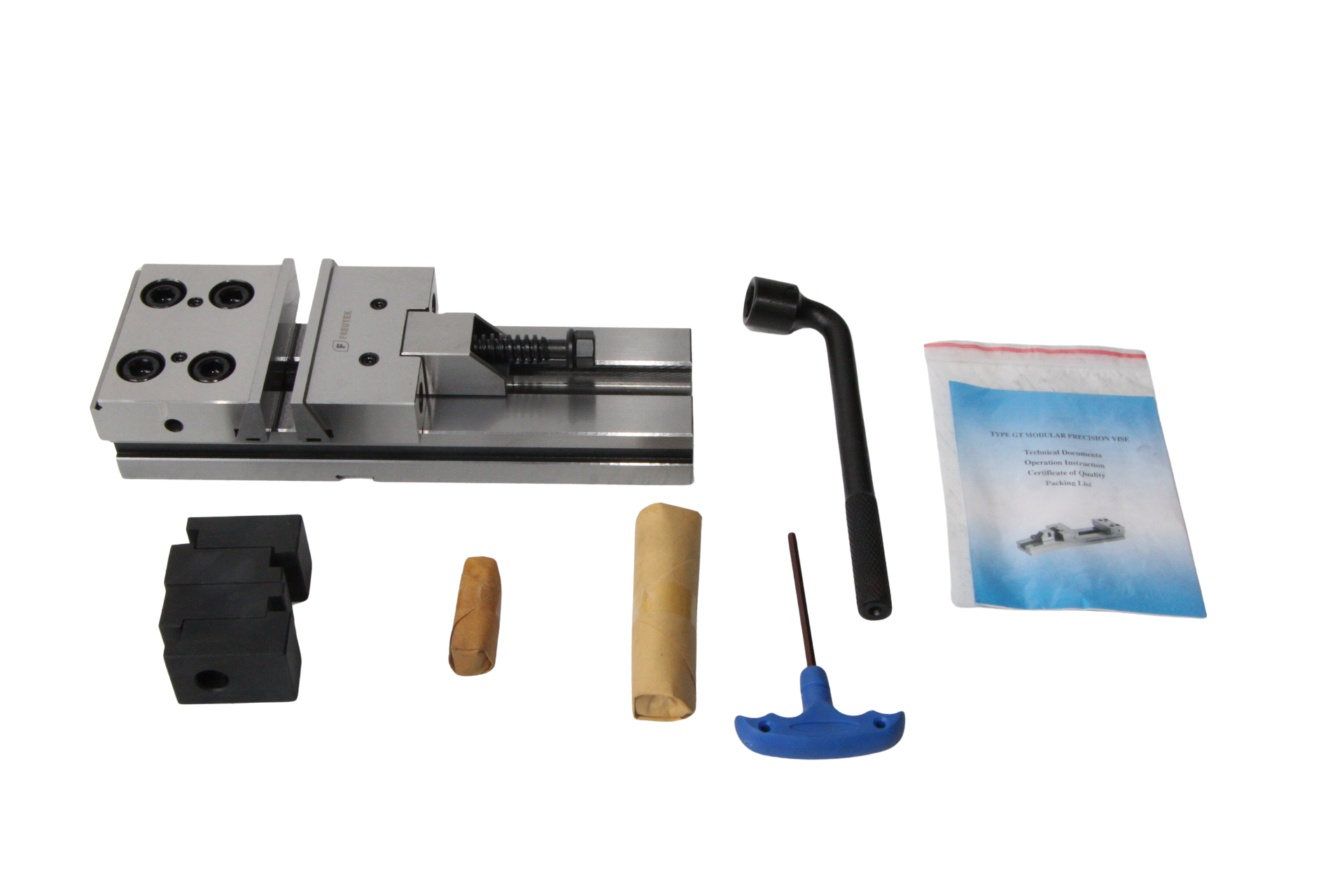

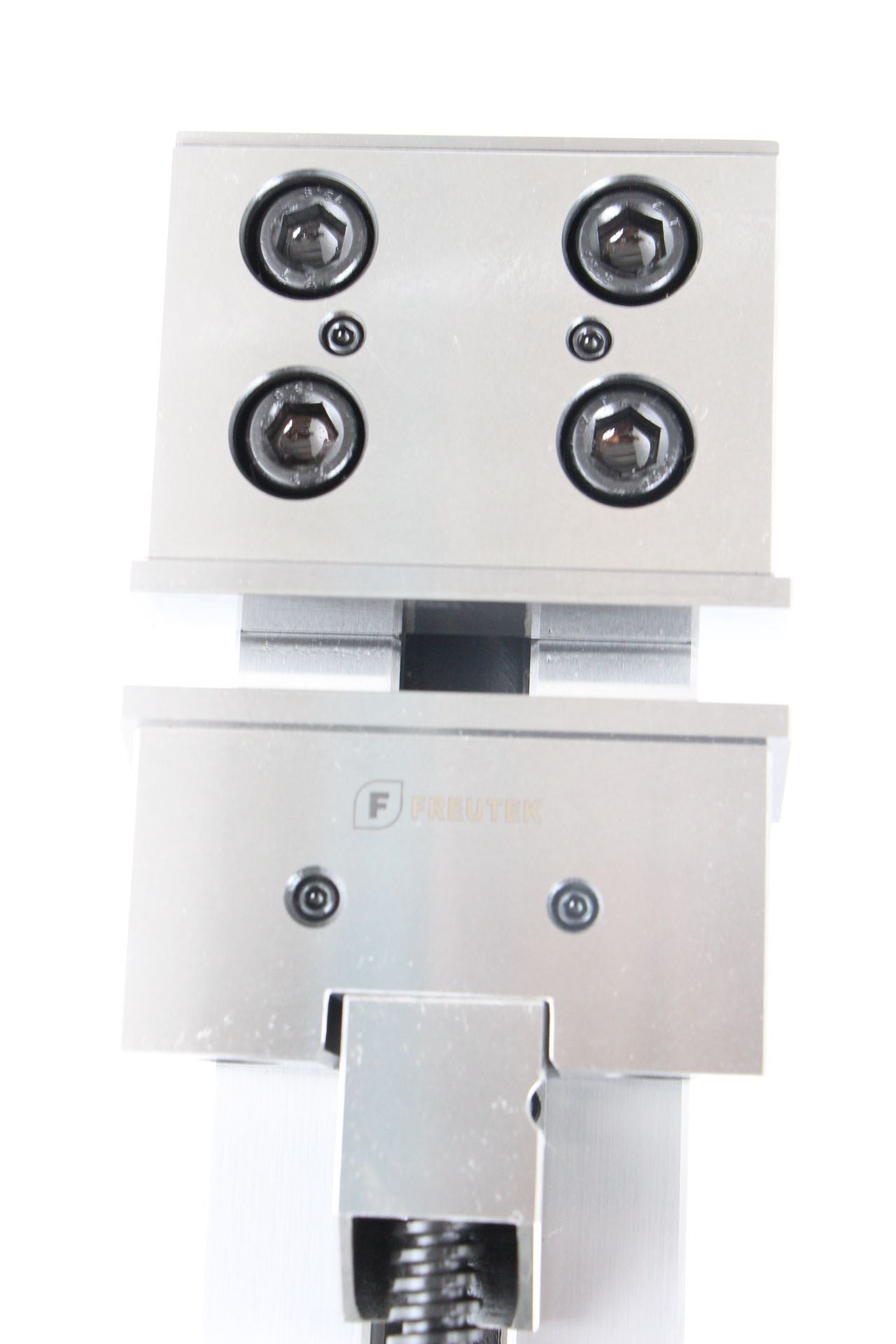

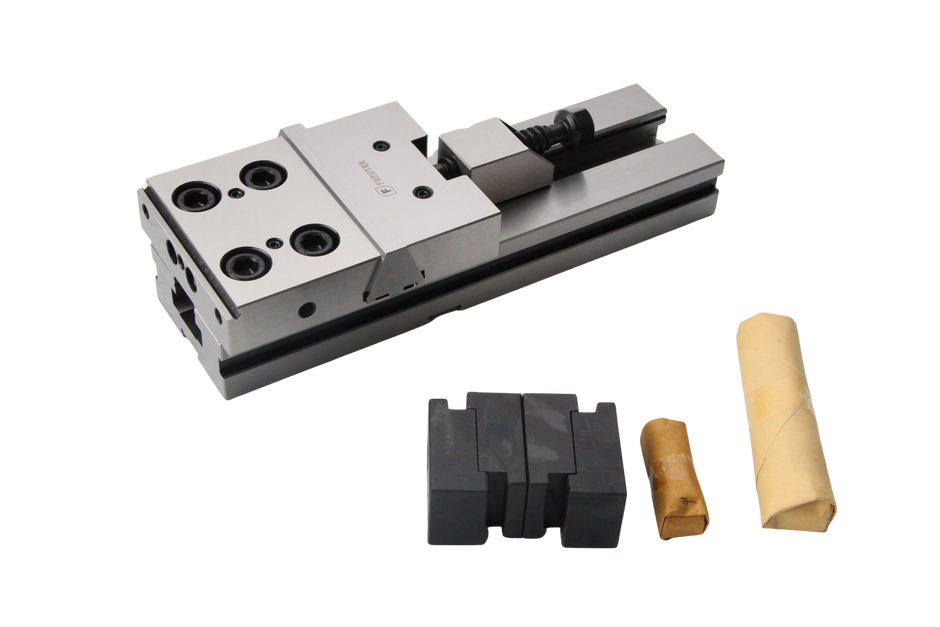

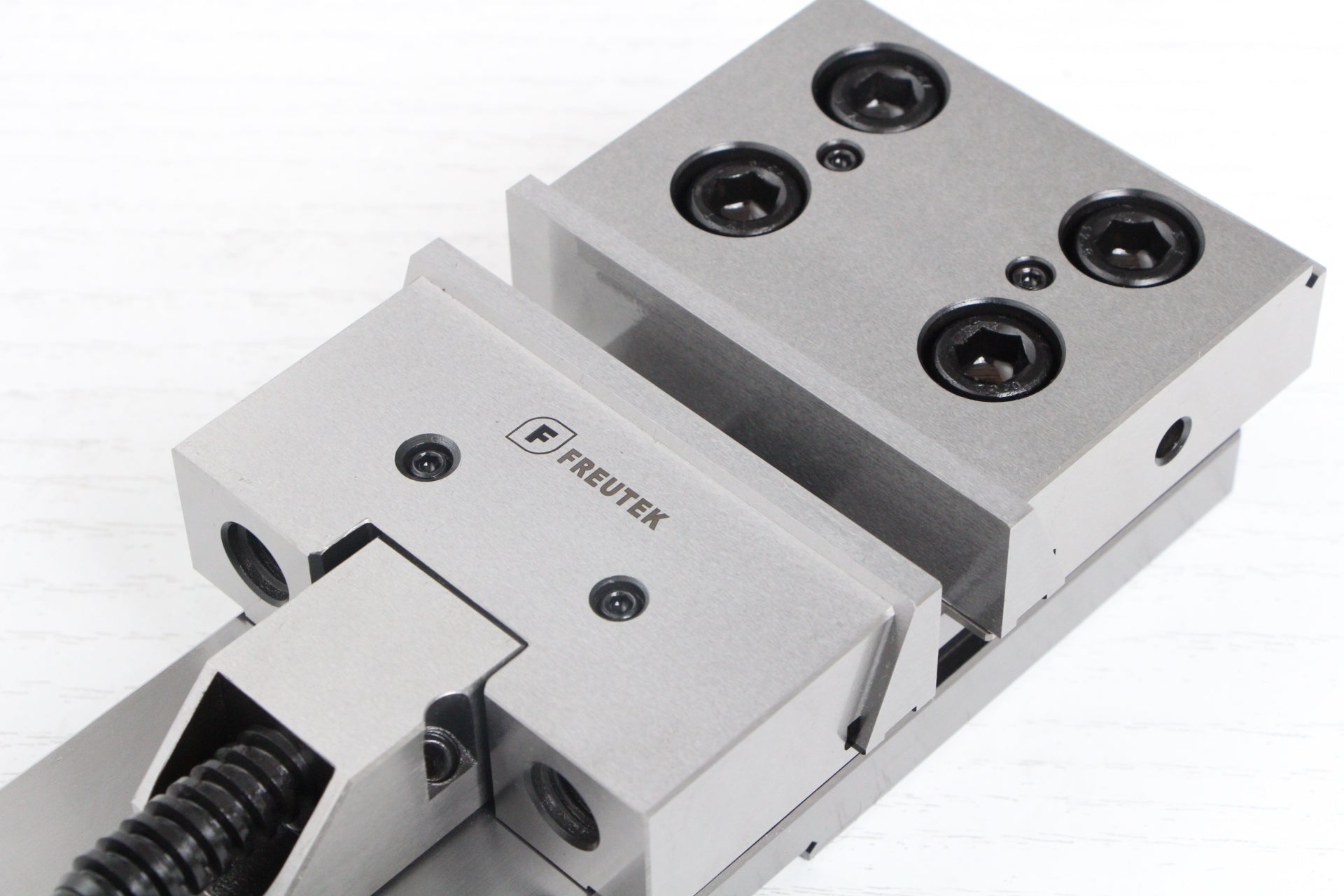

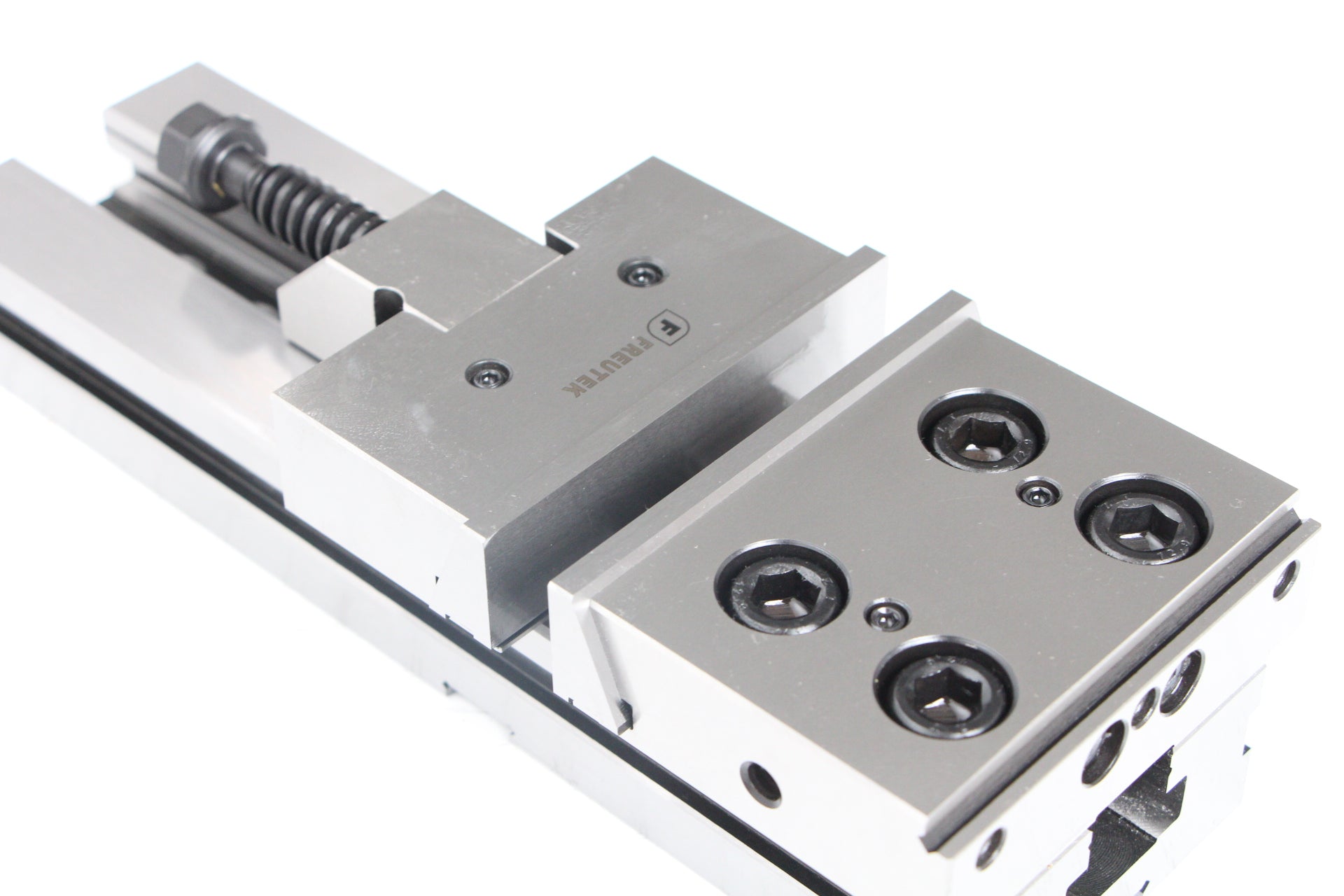

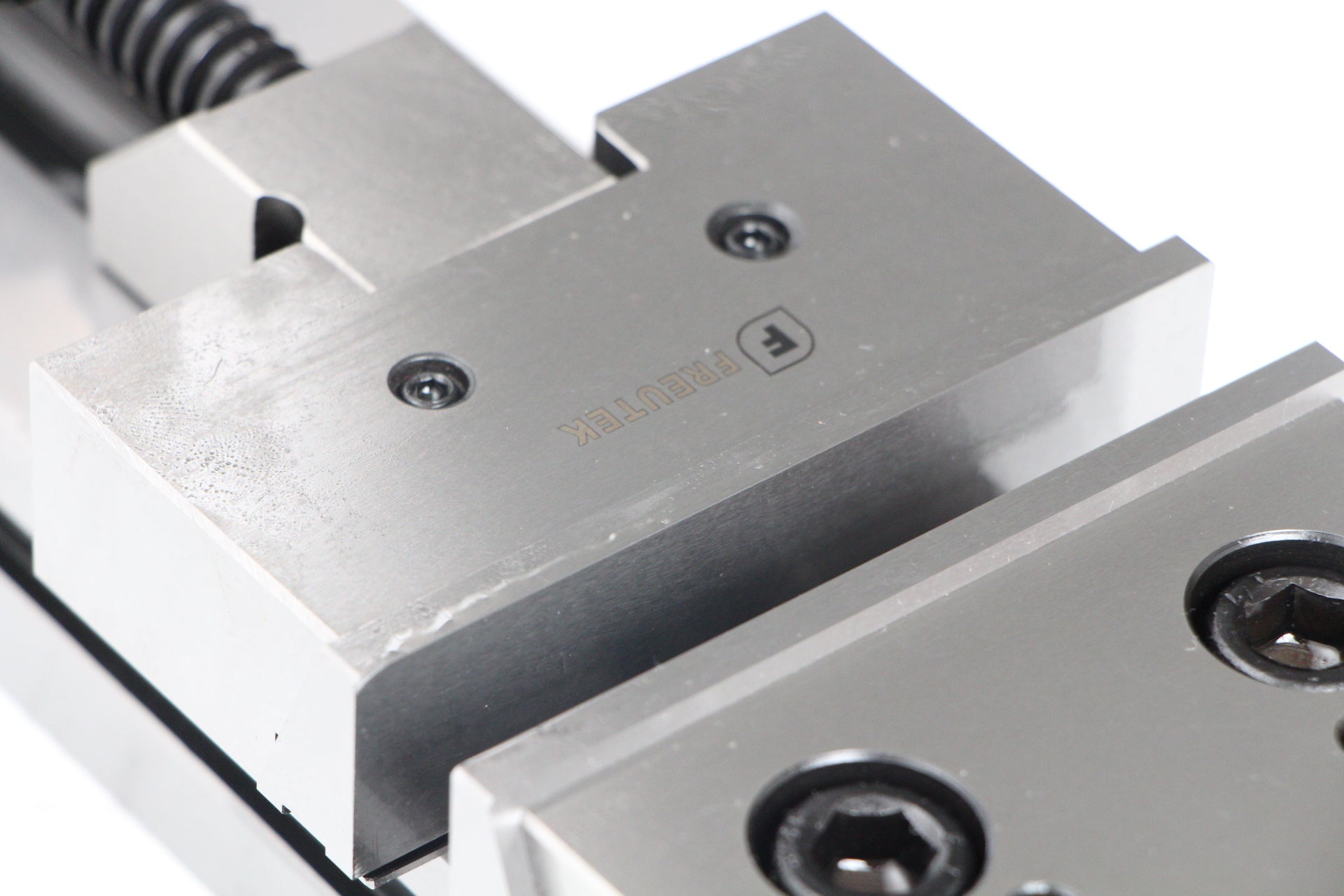

The ATT0010 precision vise is ideal for operations on CNC machining centers and high-precision machinery, offering high clamping force and a robust structure to ensure precise and safe machining.
With a clamping surface of 150 x 50 mm and a stroke of 200 mm, this vice can handle workpieces of different sizes with a maximum clamping of 5 tons. The 4-clamp fixing system ensures superior stability, minimizing vibrations and improving machining accuracy.
Made of 20CrMnTi alloy, this vise offers high structural rigidity and optimum resistance to mechanical stress. With a hardness of HRC58-62, it guarantees excellent wear resistance and a long service life.
✔ Clamping force up to 5 tons
✔ Robust construction to reduce vibration and bending
✔ Movable jaw for quick workpiece change
✔ Durable material for long time use

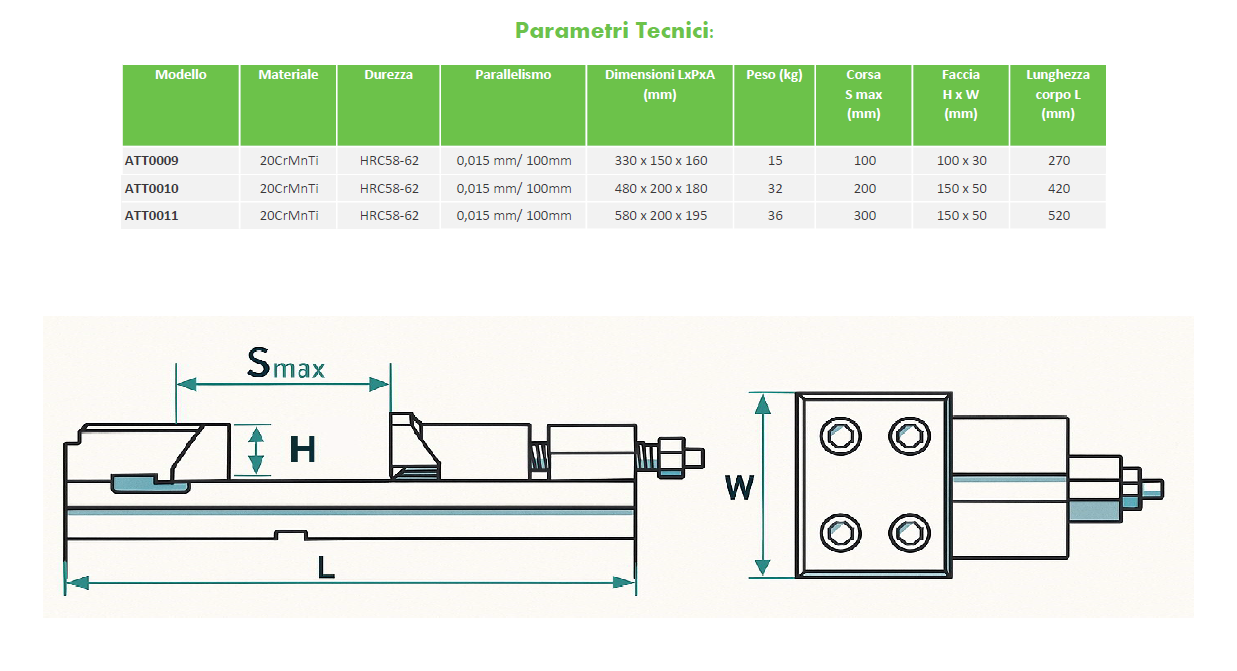

Technical Specifications
Model ATT0010
Type Precision vice
Material Alloy 20CrMnTi
Clamping surface 150 x 50 mm
Stroke 200mm
Clamping force Up to 5 tons
4-clamp locking system
Hardness HRC58-62
Structure Fixed and mobile jaw| Weight | 32 Kg |
| Length | 480mm |
| Length | 200mm |
| Height | 180mm |
