SDM0031 - Stainless Steel Precision Vertical Gauge 1000 x 0.02 mm
Increments of 1
Minimum of 1
Maximum of
Sale price
€236,00 EUR
-100%
Regular price
€0,00 EUR
Regular price
€236,00 EUR
Unit price
per
Couldn't load pickup availability

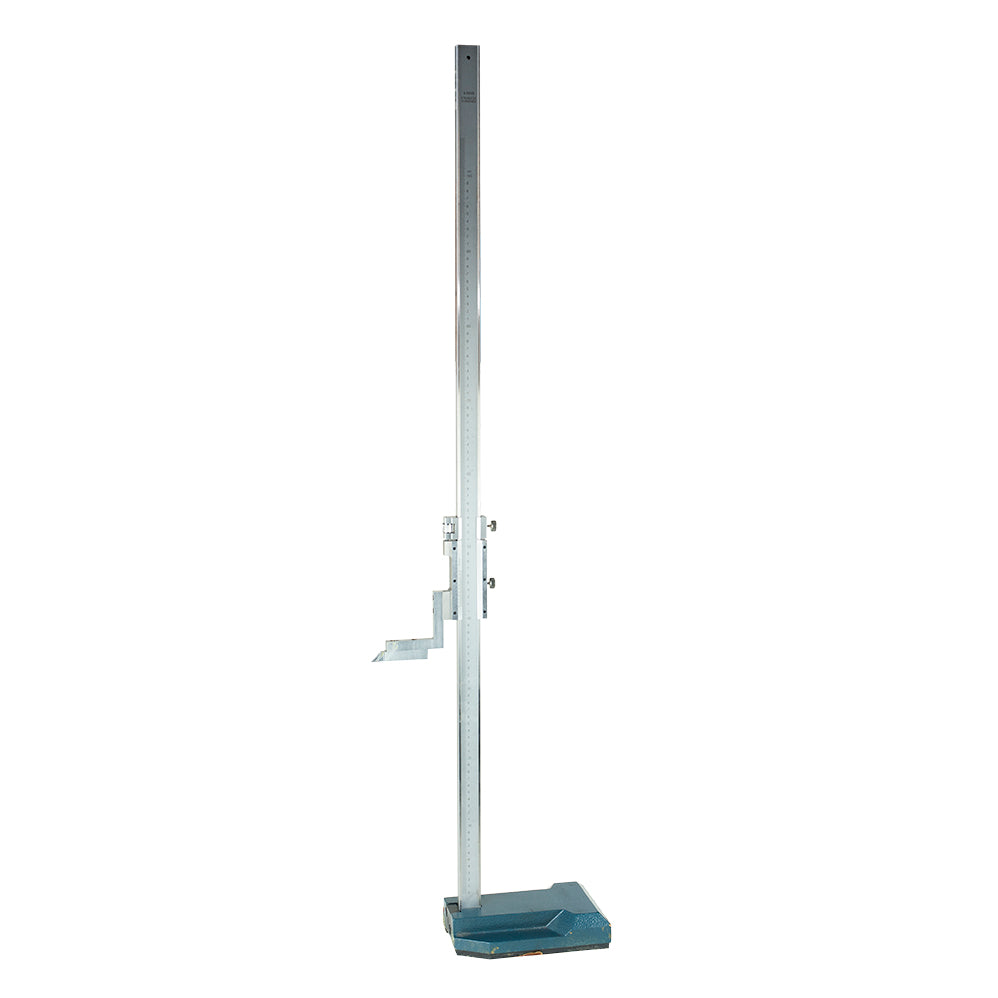

The SDM0031 Vertical Gauge is a professional instrument designed to ensure high precision measurements and markings on large components. With a measuring range of up to 1000 mm and a resolution of 0.02 mm, it ensures reliability and precision in dimensional control operations.
Thanks to its hardened stainless steel construction, it offers corrosion resistance, stability and durability, making it an ideal tool for machine shops, metrology laboratories and precision industries.
Main Features
✅ Large scale measurements and tracking
🔹 Measuring range up to 1000 mm, perfect for large workpieces.
🔹 0.02mm resolution, for impeccable precision.
✅ Sturdy and durable structure
🔹 Double column in tempered stainless steel, for optimal rigidity and stability.
🔹 Lapped base, for perfect support on the worktop and precise results.
✅ Clear and intuitive reading

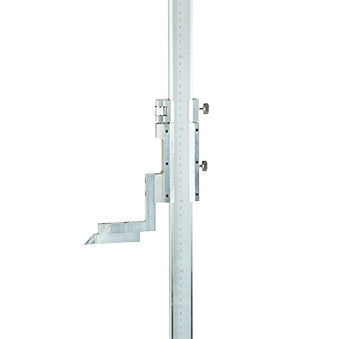

🔹 System with reading lens, to facilitate the detection of measurements.
🔹 Micro-adjustment slider, for fine and accurate adjustments.
✅ Clear and precise markings
🔹 Carbide tipped scriber, wear-resistant and horizontally adjustable for a wide range of applications.
✅ Ergonomic and versatile use
🔹 Smooth micrometric adjustment, for comfortable and precise operations.
🔹 Perfect for detailed measurements and precision marking.
Technical Specifications
Measuring range 0 - 1000 mm
Resolution 0.02mm
Frame Tempered stainless steel
Reading type Built-in magnifying glass
Lapped base for greater stability
Tracer point Hard metal, adjustable
Micro-regulation adjustment system
| Weight | 23 Kg |
| Length | 1320 mm |
| Length | 400mm |
| Height | 190mm |
