The SDM0020 Double Column Height Gauge is a high precision measuring instrument, designed for dimensional control and marking in industrial sectors. Thanks to its solid structure and advanced features, it guarantees reliable and repeatable measurements on large components.
Main Features
✅ Wide measuring range and high resolution
🔹 Measuring range from 0 to 600 mm, ideal for precision industrial machining.
🔹 0.01mm resolution, for detailed and accurate readings.
✅ Sturdy structure for maximum stability
🔹Tempered stainless steel columns, which ensure rigidity and wear resistance.

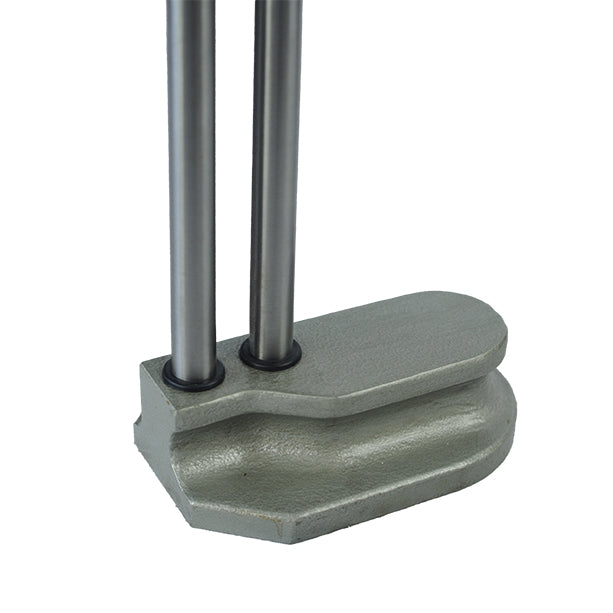

🔹 Wide support base (180 x 120 mm), for greater stability and measurement reliability.

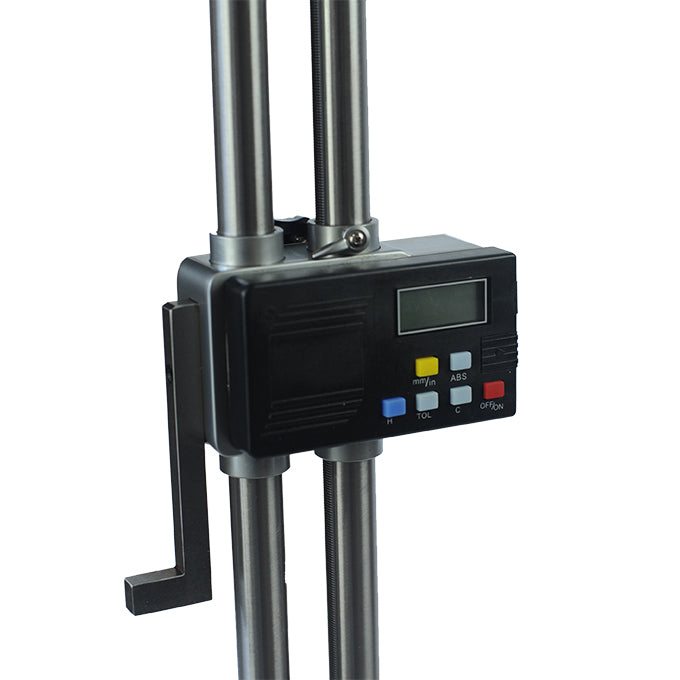

✅ High contrast LCD digital display
🔹 Instant reading of values with advanced functions, including:
✔ ON/OFF (on/off).
✔ Origin setting for custom calibrations.
✔ ABS/INC switching, to switch between absolute and incremental measurements.
✔ mm/inch conversion, for international processing.
✔ programmable pre-set for repetitive jobs.
✅ Hard metal tracing tip
🔹 High wear resistance, to ensure clean and precise markings over time.
✅ Fine micrometric adjustment
🔹 Scroll knob, for smooth control and precise adjustments.
✅ Long battery life
🔹 Powered by SR-44 battery, with operating life up to 3500 hours.
Technical Specifications
Measuring range 0 - 600 mm
Resolution 0.01mm
Accuracy ±0.05mm
Frame material: Tempered stainless steel
Support base 180 x 120 mm
Overall height 810 mm
Weight Approximately 6 kg
High contrast LCD display
Power supply SR-44 battery
Autonomy 3500 hours
Functions ON/OFF, ABS/INC, mm/inch, pre-set, origin
Accessories included Tracer point, clamp, battery
Perfect for those looking for a reliable and durable precision caliper, the SDM0020 is the ideal choice for machine shops, metrology laboratories and advanced industrial sectors.
