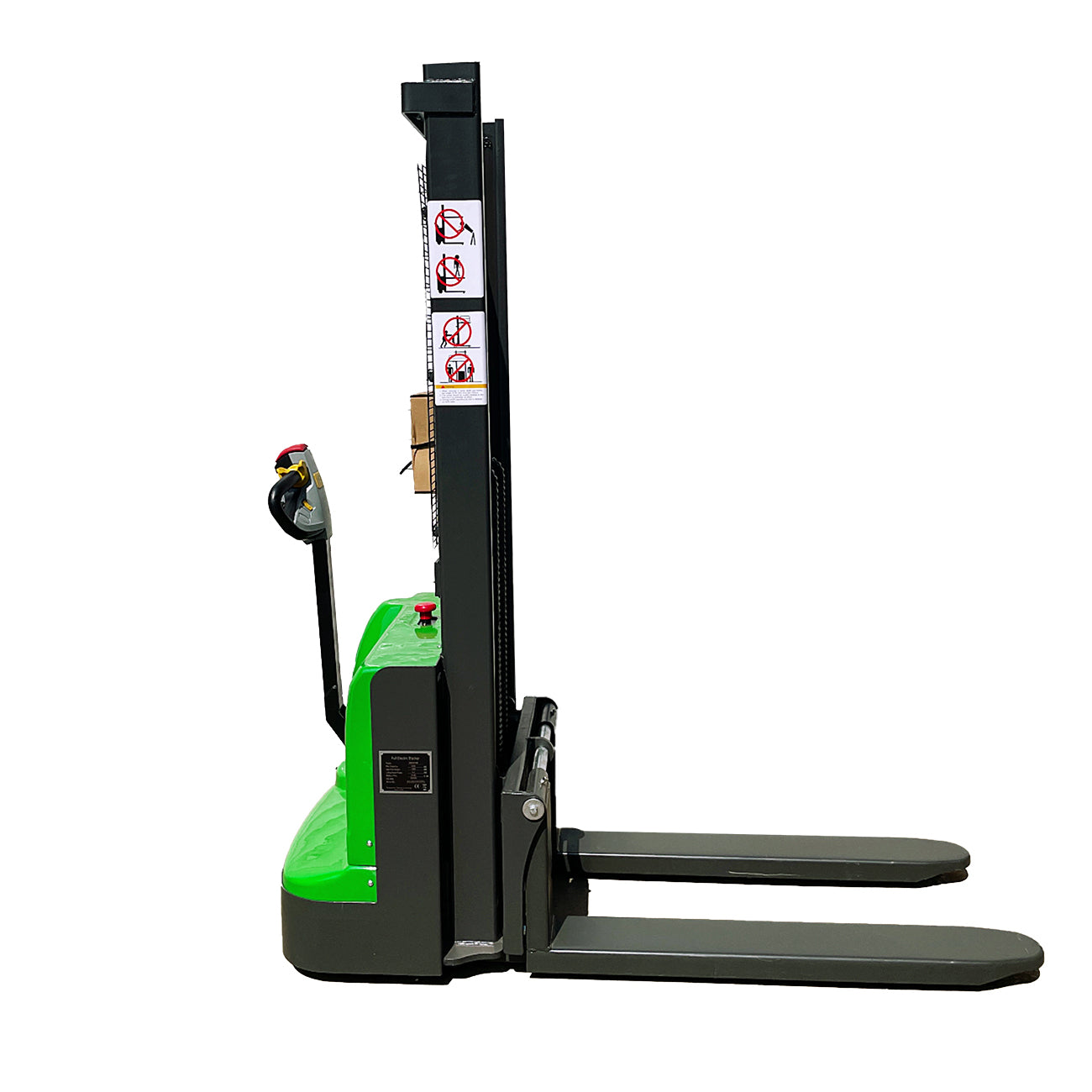

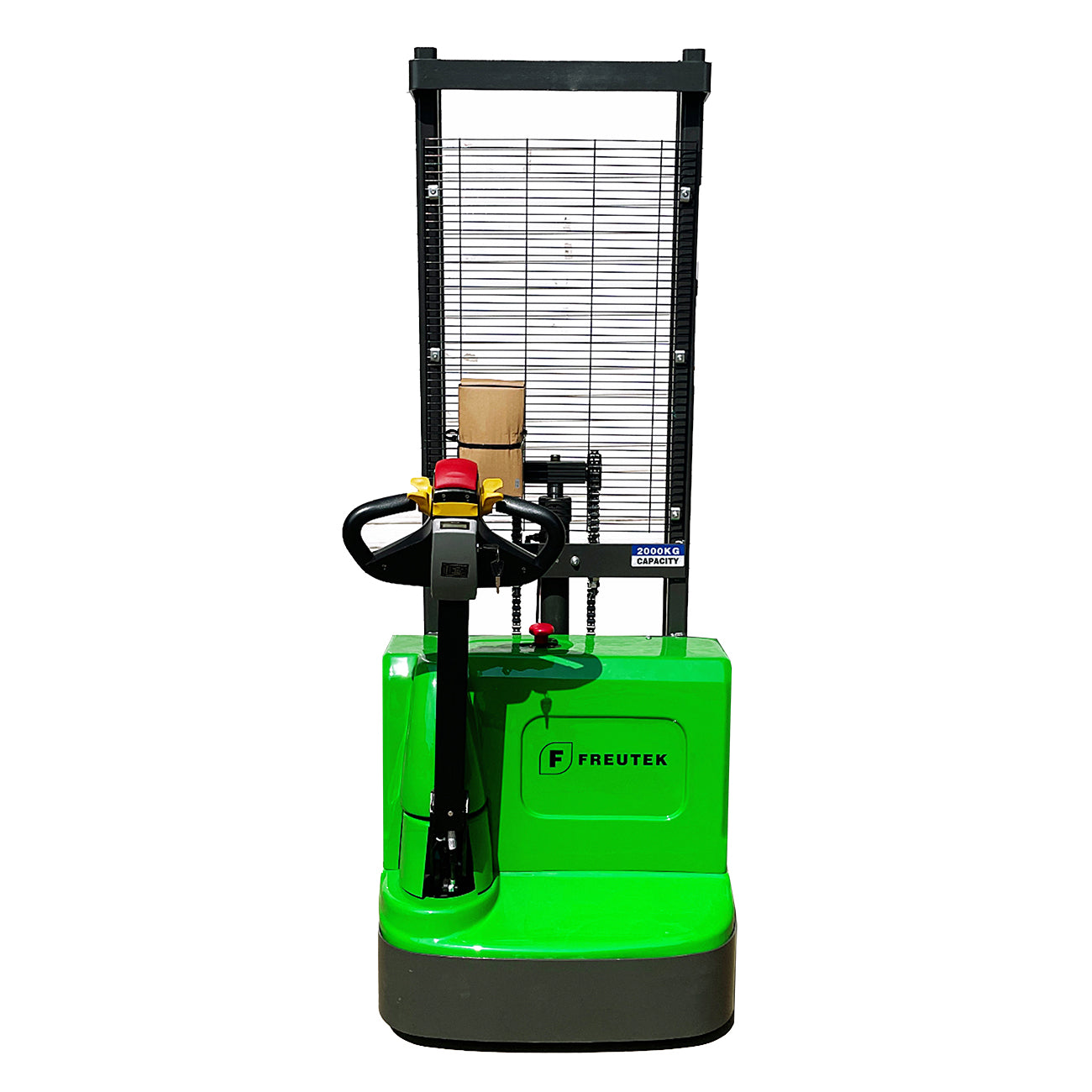

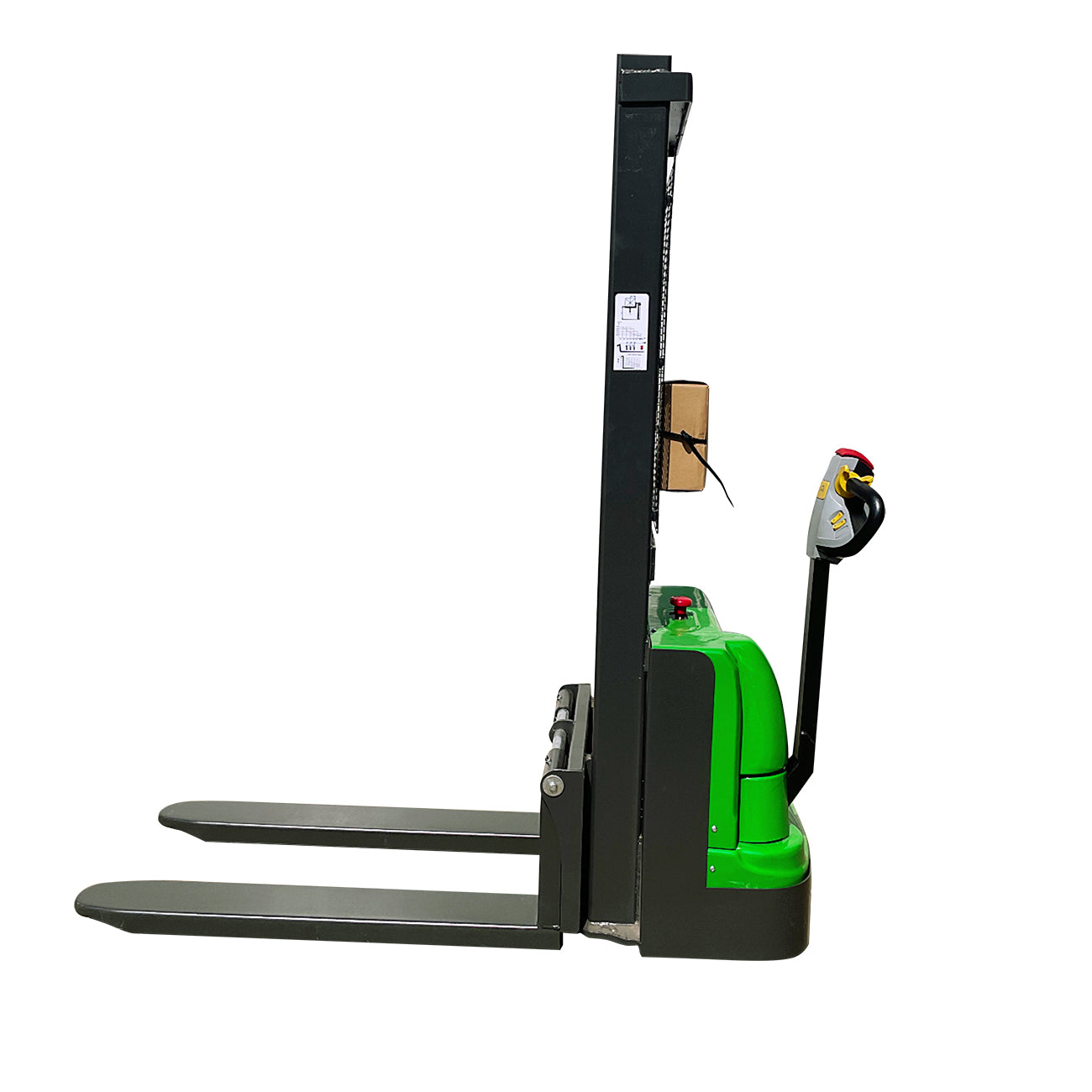

NNT0014 - Electric Stacker 1500kg - 1600mm

Sale price €2.184,00 EUR -100% Regular price €0,00 EUR
Regular price €2.184,00 EUR
The NNT0014 electric pallet truck is designed for efficient handling of loads up to 1500 kg, ensuring high performance and operational safety. With a lifting height of 1600 mm, this pallet truck is ideal for use in warehouses, logistics centres and industrial environments where speed and precision are required. Equipped with a 2.2 kW lifting motor and a 1.2 kW drive motor, it offers a travel speed of up to 5 km/h without load and an excellent climbing capacity of 15% at full load. The polyurethane (PU) wheels ensure smoothness and wear resistance, while the turning radius of 1600 mm guarantees manoeuvrability even in tight spaces. The rapid lifting system, with a speed of 0.1 m/s empty and 0.08 m/s fully loaded, allows smooth and efficient operations. The 24V/80Ah battery ensures good autonomy for long working shifts. An ideal option for those looking for reliability, resistance and high performance in warehouse management.

Technical Specifications
Rated load 1500 kg
Load center distance 500 mm
Lifting height 1600 mm
Total height (lowered) 2080 mm
Maximum height (raised) 2080 mm
Handle height from ground 1200 mm
Polyurethane (PU) Wheels
Guide wheel size Ø 210×80 mm
Balancing wheel size Ø 100×55 mm
Load wheel size Ø 80×680 mm
Total length (pedal closed) 2070 mm
Total width 800 mm

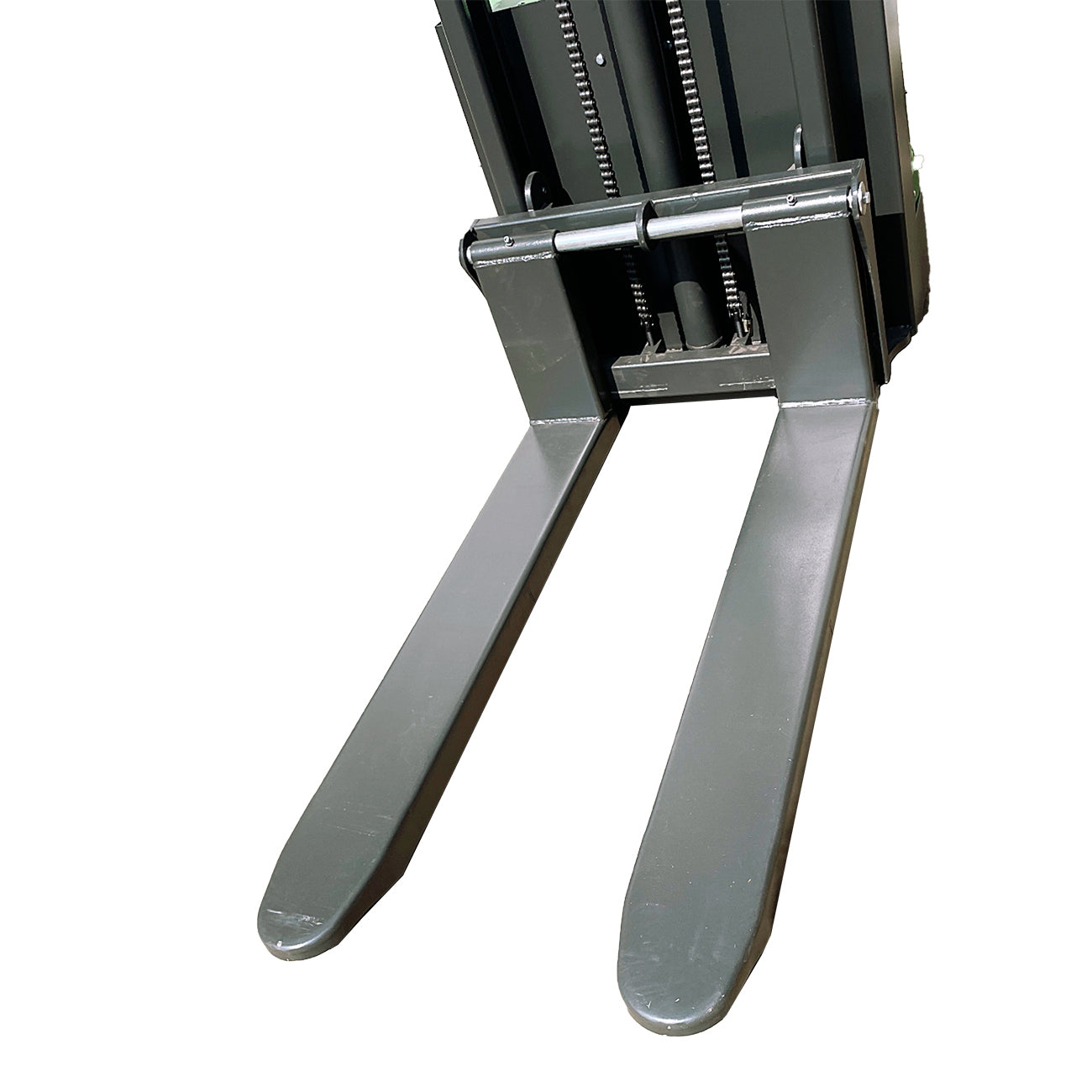

Fork size 60x170x1100 mm
Turning radius 1600 mm
Lifting speed (empty/full load) 0.1/0.08 m/s
Falling speed (full load) 0.15/0.12 m/s
Travel speed (full load/unloaded) 4.5/5 km/h
Climbing capacity (empty/full load) 5/15%
Lifting motor 2.2 kW
Drive motor 1.2 kW
Battery 24V/80Ah


Item Attributes
Weight 386 kg
Length 780 mm
Length 1840 mm
Height 2080 mm
