SDM0062 - Three Point Internal Micrometer 30-40 x 0.05mm
Increments of 1
Minimum of 1
Maximum of
Sale price
€287,00 EUR
-100%
Regular price
€0,00 EUR
Regular price
€287,00 EUR
Unit price
per
Couldn't load pickup availability
The SDM0062 Three Point Micrometer is a high precision instrument, designed for the internal measurement of holes and cavities with a range of 30 to 40 mm. Perfect for applications in metrology, quality control and high precision mechanical processing, it ensures reliable and repeatable results in advanced industrial environments.
Main Features
✅ Superior precision and stability
🔹 Measuring range 30 - 40 mm, perfect for internal measurements on medium-sized components

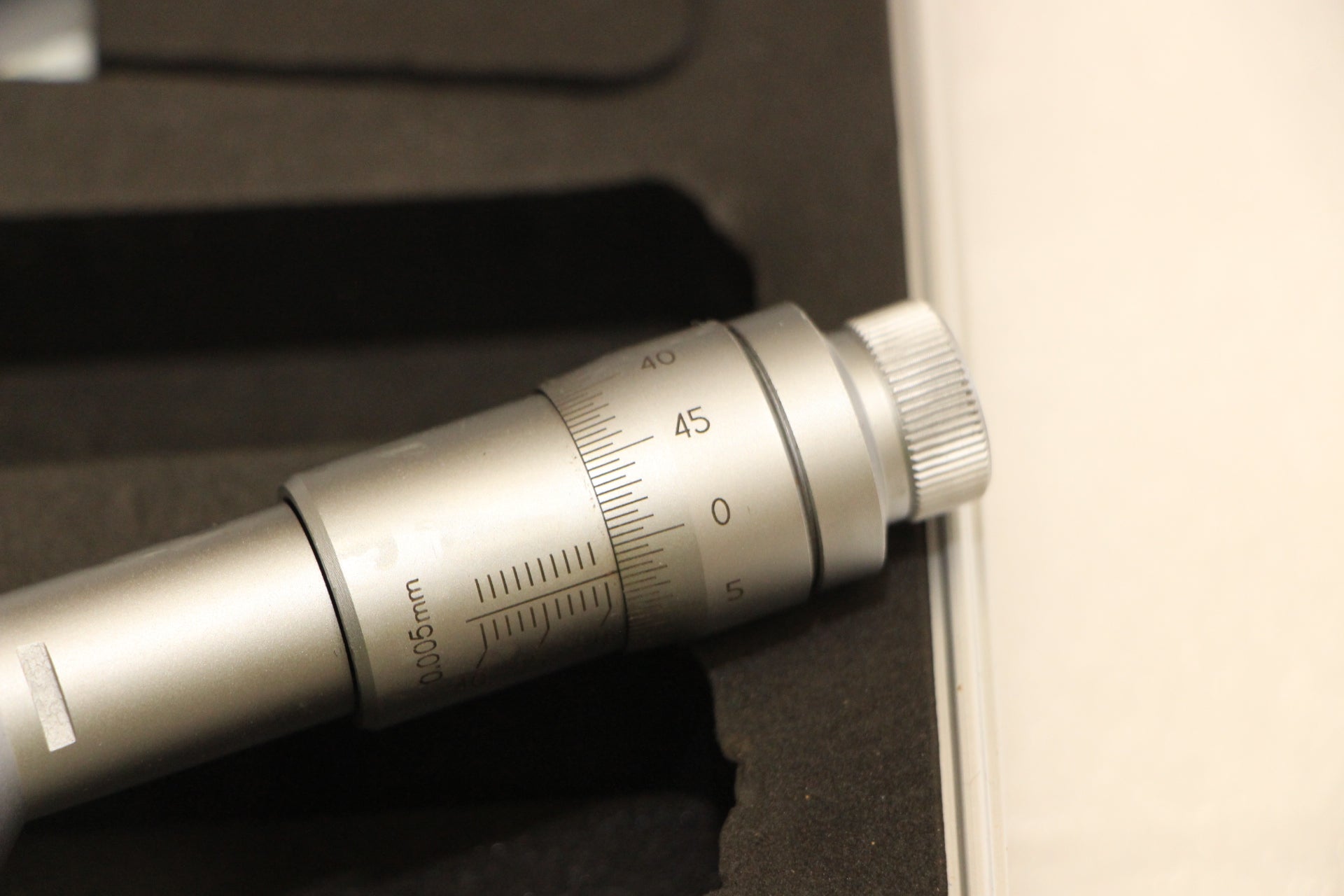

🔹 0.005 mm resolution and 4 µm (0.004 mm) accuracy, for extremely detailed measurement

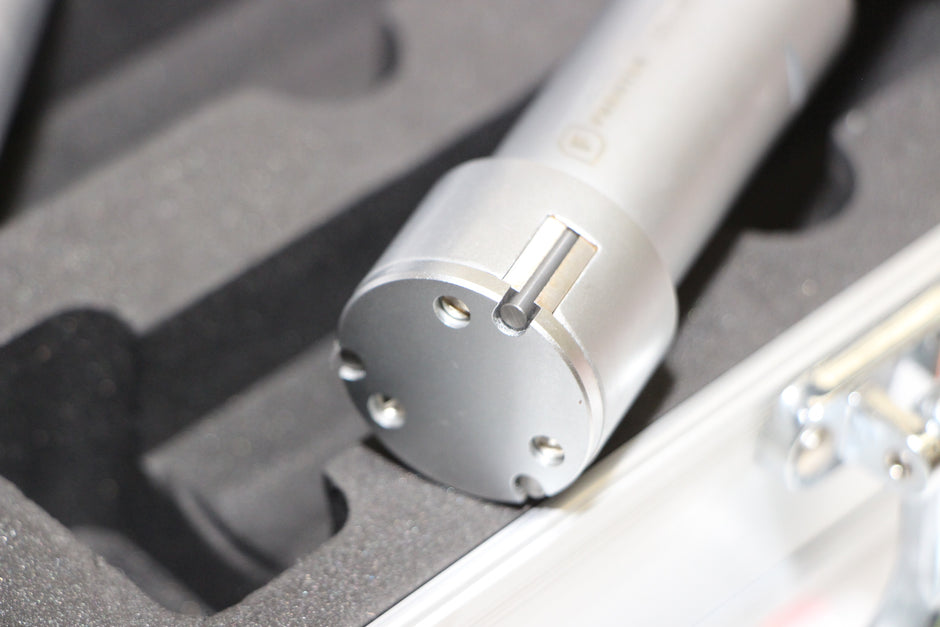

🔹 Three-point contact system, to eliminate alignment errors and improve stability
✅ Advanced design for professional use
🔹 Body diameter 23.5mm, perfect for measuring in tight spaces
🔹 Measuring depth up to 100 mm, ideal for deeper holes
🔹 12.8mm high measuring tips, for stable and precise contact
✅ Reliability and calibration included

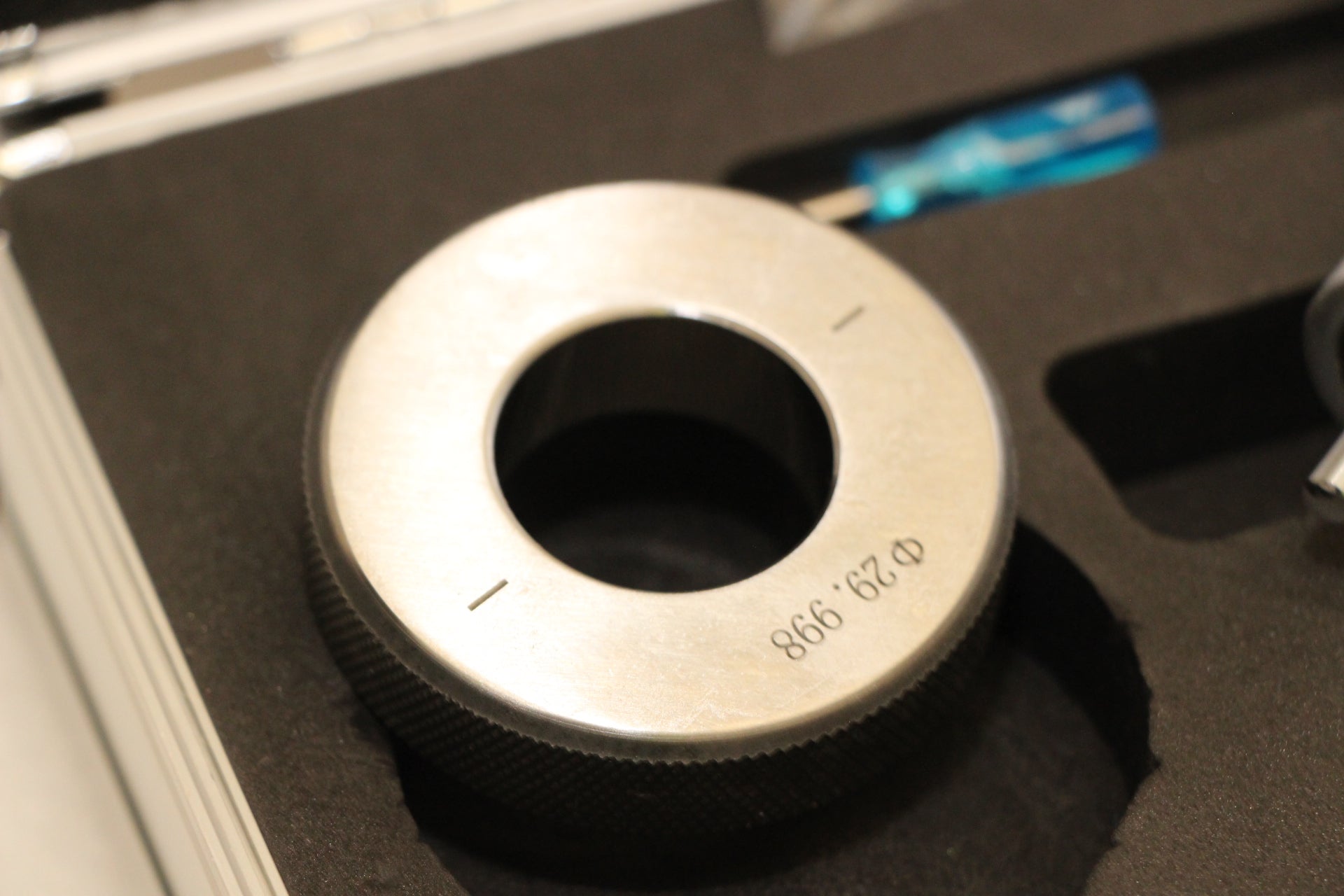

🔹 Calibration ring Ø 30 mm included, to ensure always precise measurements
🔹 Sturdy construction and high-quality materials, for long-lasting durability and wear resistance
🔹 Perfect for high precision industrial sectors: mechanical, aerospace, automotive
Technical Specifications
Type 3-point internal micrometer
Measuring range 30 - 40 mm
Maximum depth 100 mm
Body diameter 23.5 mm
Tip height 12.8 mm
Accuracy 4 µm (0.004 mm)
Resolution 0.005mm
Calibration ring Ø 30 mm| Weight | 2 Kg |
| Length | 290mm |
| Length | 170mm |
| Height | 80mm |
