SDM0061 - Three Point Internal Micrometer 25-30 x 0.05mm
Increments of 1
Minimum of 1
Maximum of
Sale price
€275,00 EUR
-100%
Regular price
€0,00 EUR
Regular price
€275,00 EUR
Unit price
per
Couldn't load pickup availability
The SDM0061 Three Point Micrometer is a high precision instrument, ideal for the internal measurement of holes and cavities in the range 25 - 30 mm. Perfect for applications in metrology, quality control and high precision machining, it offers repeatable and reliable measurements, essential for sectors such as mechanical and aerospace industries.
Main Features
✅ Superior precision and stability
🔹 Measuring range 25 - 30 mm, perfect for internal measurements on medium-sized workpieces
🔹 0.005 mm resolution and 4 µm (0.004 mm) accuracy, for extremely detailed measurement
🔹 Three-point contact system, to eliminate alignment errors and improve stability
✅ Advanced design for professional use
🔹 Body diameter 17mm, perfect for measuring in tight spaces
🔹 Measuring depth up to 85 mm, ideal for measurements in deep holes
🔹 8.8mm high measuring tips, for stable and precise contact
✅ Reliability and calibration included

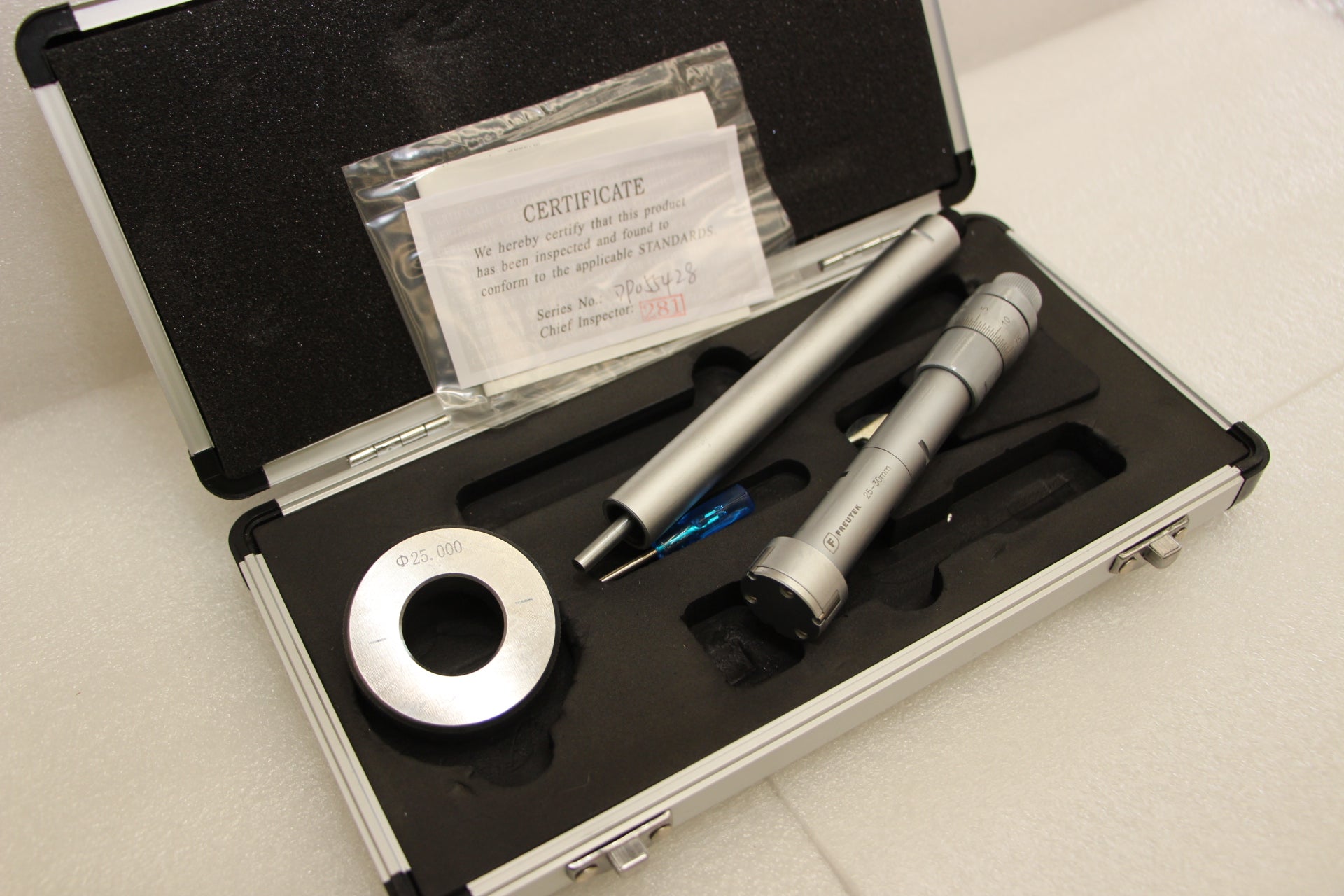

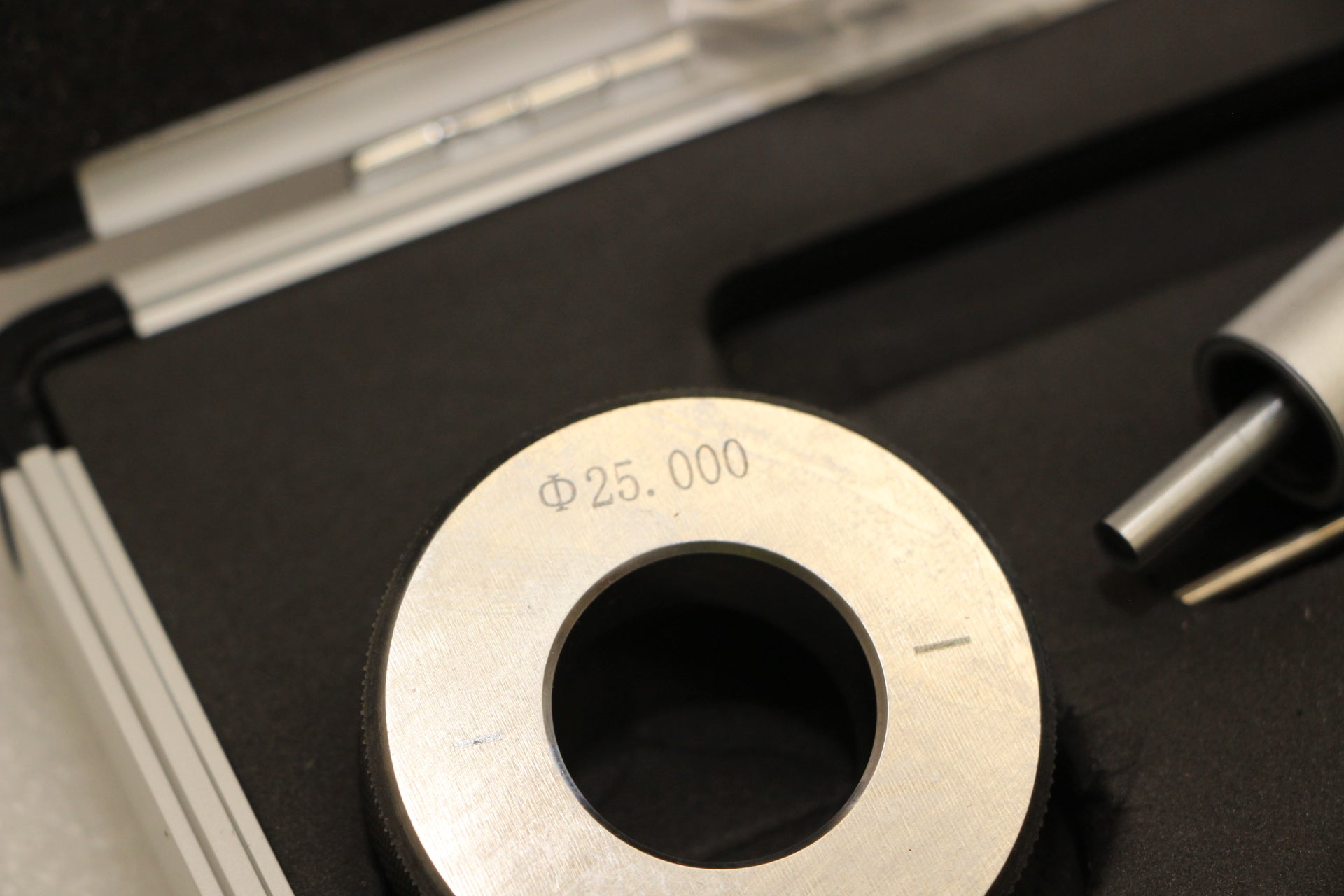

🔹 Calibration ring Ø 25 mm included, to ensure always precise measurements
🔹 Sturdy construction and high-quality materials, for long-lasting durability and wear resistance
🔹 Perfect for high-precision industrial sectors, metrology laboratories and mechanical workshops
Technical Specifications
Type 3-point internal micrometer
Measuring range 25 - 30 mm
Maximum depth 85 mm
Body diameter 17 mm
Tip height 8.8 mm
Accuracy 4 µm (0.004 mm)
Resolution 0.005mm
Calibration ring Ø 25 mm| Weight | 2 Kg |
| Length | 270mm |
| Length | 130mm |
| Height | 40mm |
