SDM0060 - Three Point Inside Micrometer 20-25 x 0.05mm

Sale price €262,00 EUR -100% Regular price €0,00 EUR
Regular price €262,00 EUR

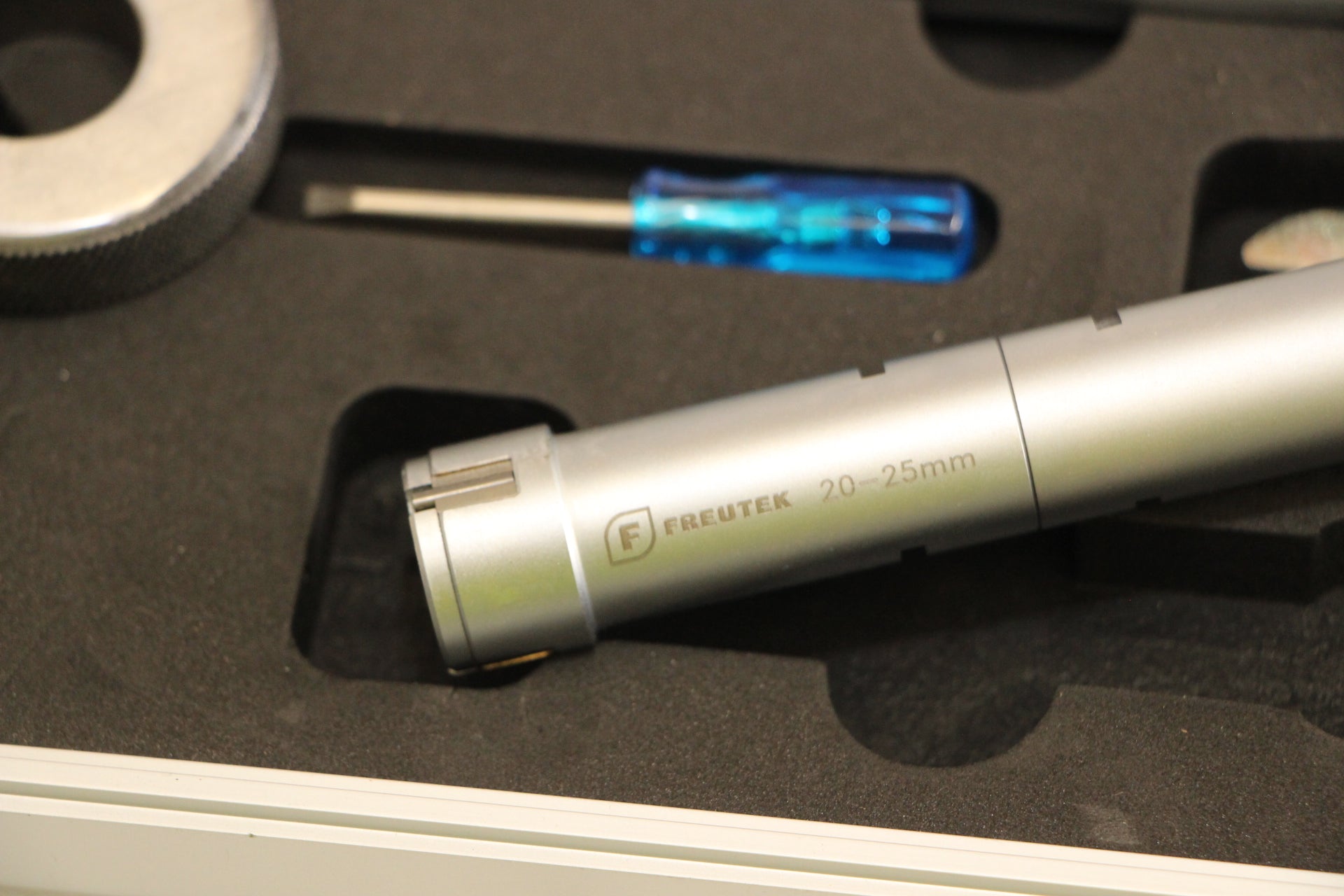

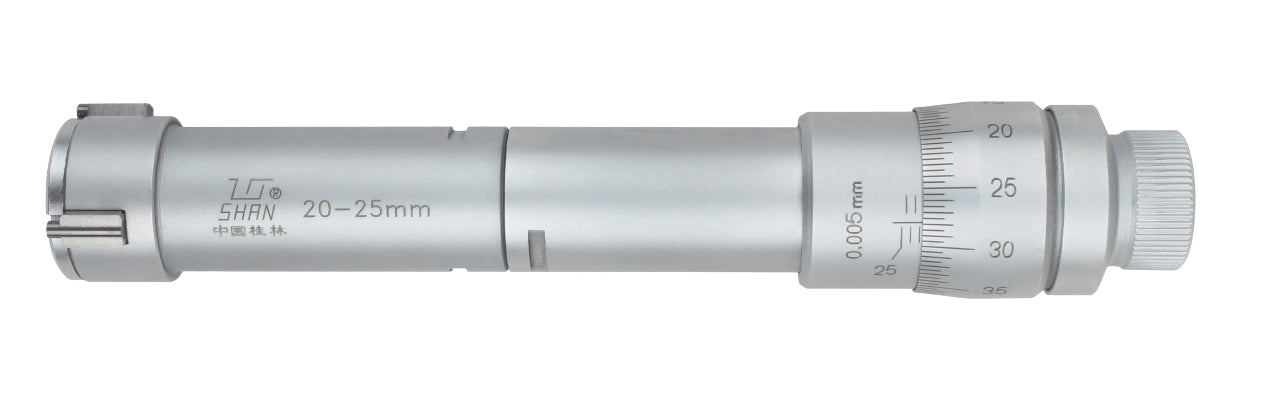

The SDM0060 Three Point Micrometer is a high precision instrument designed for internal measurement of holes and cavities in the range 20 - 25 mm. Perfect for applications in metrology, quality control and precision machining, it guarantees reliable and repeatable results thanks to its advanced technology.

Main Features
✅ Excellent precision and repeatability
🔹 Measuring range 20 - 25 mm, ideal for high precision industrial applications
🔹 0.005 mm resolution and 4 µm (0.004 mm) accuracy for detailed and reliable results
🔹 Three-point contact system, to eliminate alignment errors and improve stability

✅ Advanced design for flawless measurement
🔹 Body diameter 17mm, perfect for measuring in tight spaces
🔹 Measuring depth up to 85 mm, for optimal measurement even in deep holes
🔹 8.8mm high measuring tips, for stable and precise contact

✅ Reliability and calibration included

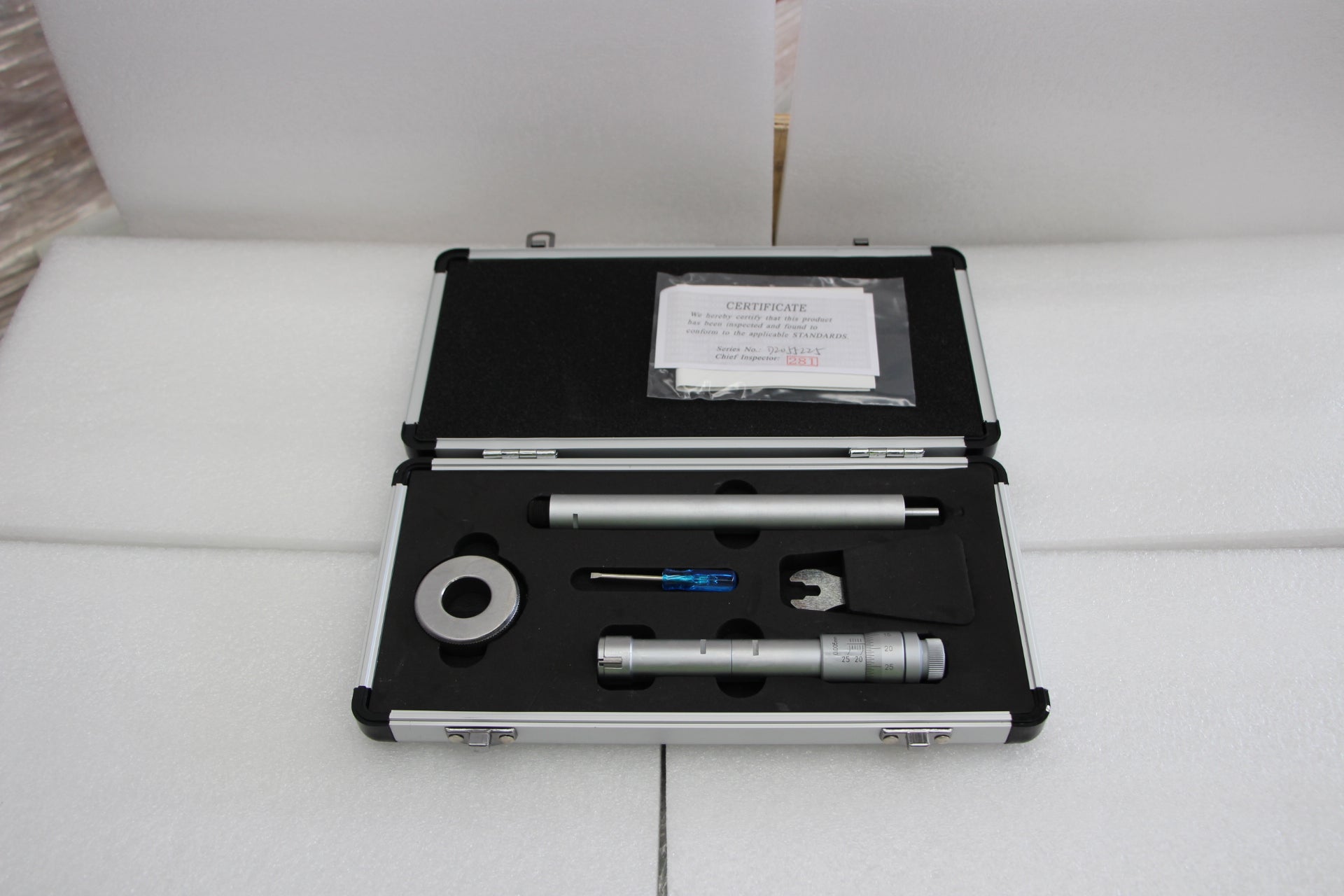

🔹 Calibration ring Ø 20 mm included, to ensure always precise measurements
🔹 High quality material construction, for long life and wear resistance
🔹 Perfect for mechanical industry, metrological laboratories and quality control

Technical Specifications


Type 3-point internal micrometer
Measuring range 20 - 25 mm
Maximum depth 85 mm
Body diameter 17 mm
Tip height 8.8 mm
Accuracy 4 µm (0.004 mm)
Resolution 0.005mm
Calibration ring Ø 20 mm
Weight 2 Kg
Length 265mm
Length 130mm
Height 40mm
