SDM0052 - Outside Micrometer 75-100mm x 0.01
Increments of 1
Minimum of 1
Maximum of
Sale price
€90,00 EUR
-100%
Regular price
€0,00 EUR
Regular price
€90,00 EUR
Unit price
per
Couldn't load pickup availability

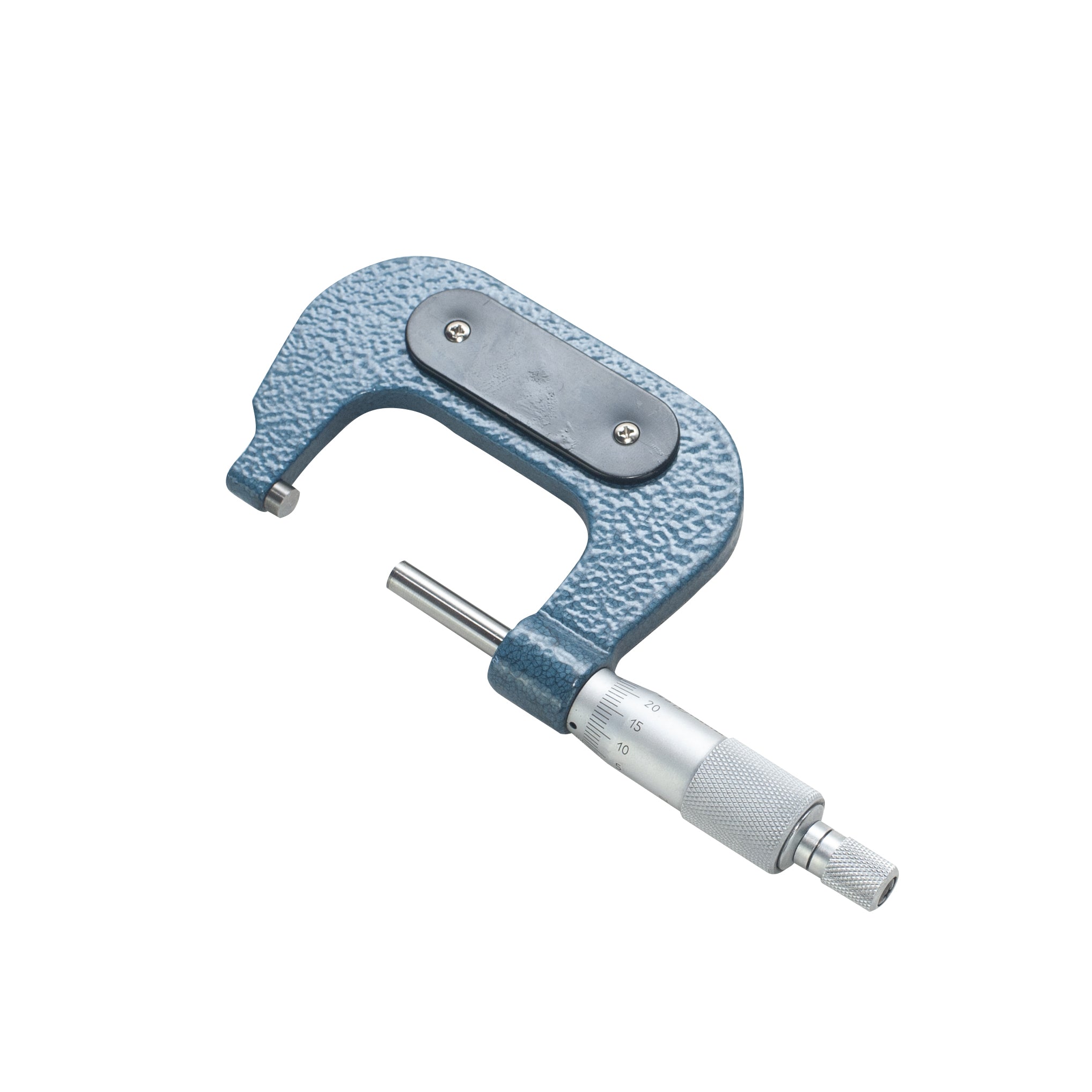

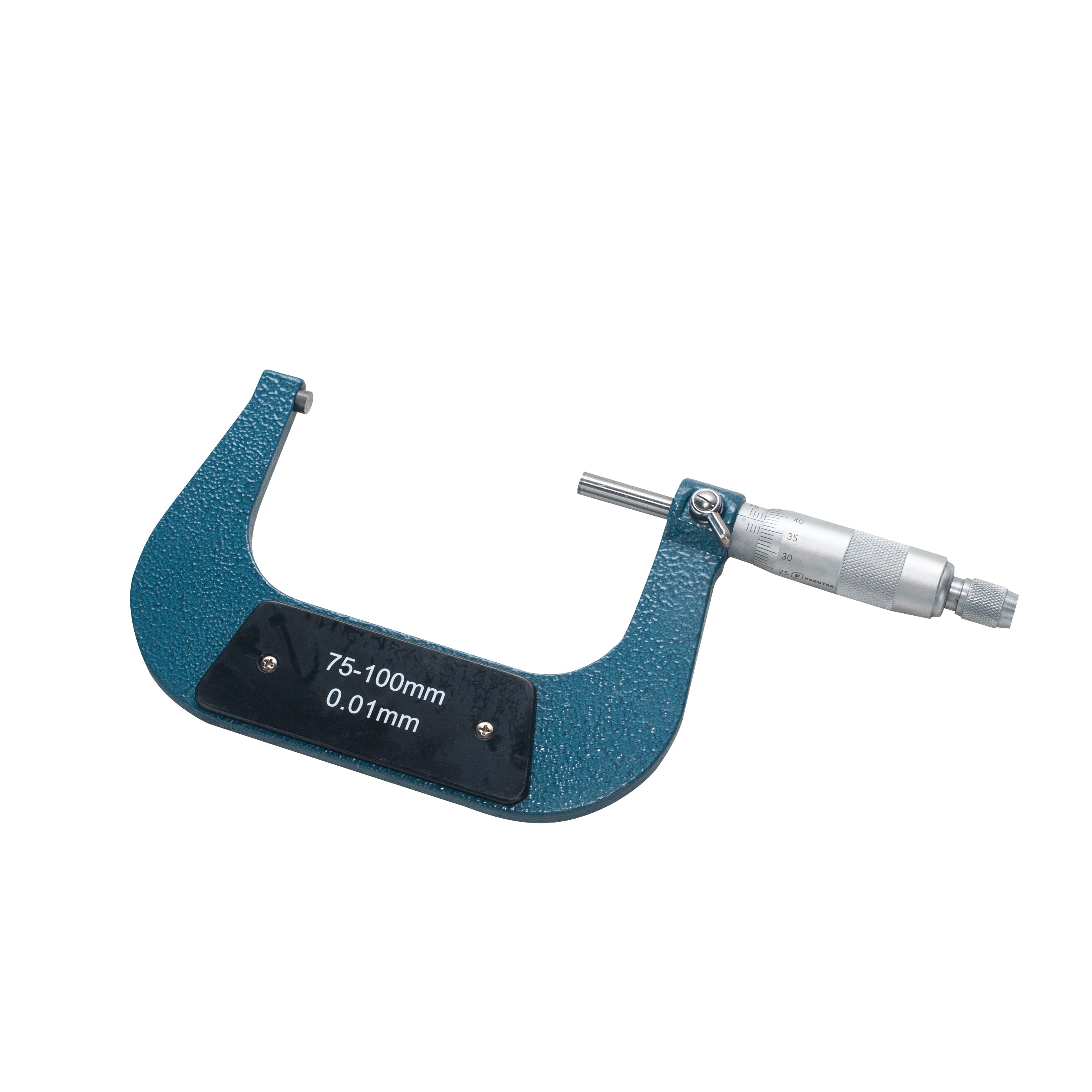

The SDM0052 Analog Outside Micrometer is designed to ensure precise and repeatable measurements in the range 75 - 100 mm, with a resolution of 0.01 mm. Perfect for machine shops, quality control laboratories and technical assistance, this instrument ensures high reliability in the measurements of medium-sized mechanical components.
Main Features
✅ Precision and stability
🔹 Measuring range: 75 - 100 mm
🔹 Resolution 0.01 mm for centesimal measurements
🔹 Positive spindle lock to maintain stability during measurement
✅ Sturdy and durable structure
🔹 Hard metal contact surfaces, ground and lapped for greater wear resistance
🔹 Ergonomic frame for comfortable and precise use
🔹 Hardened steel material, durable over time
✅ Convenience and protection

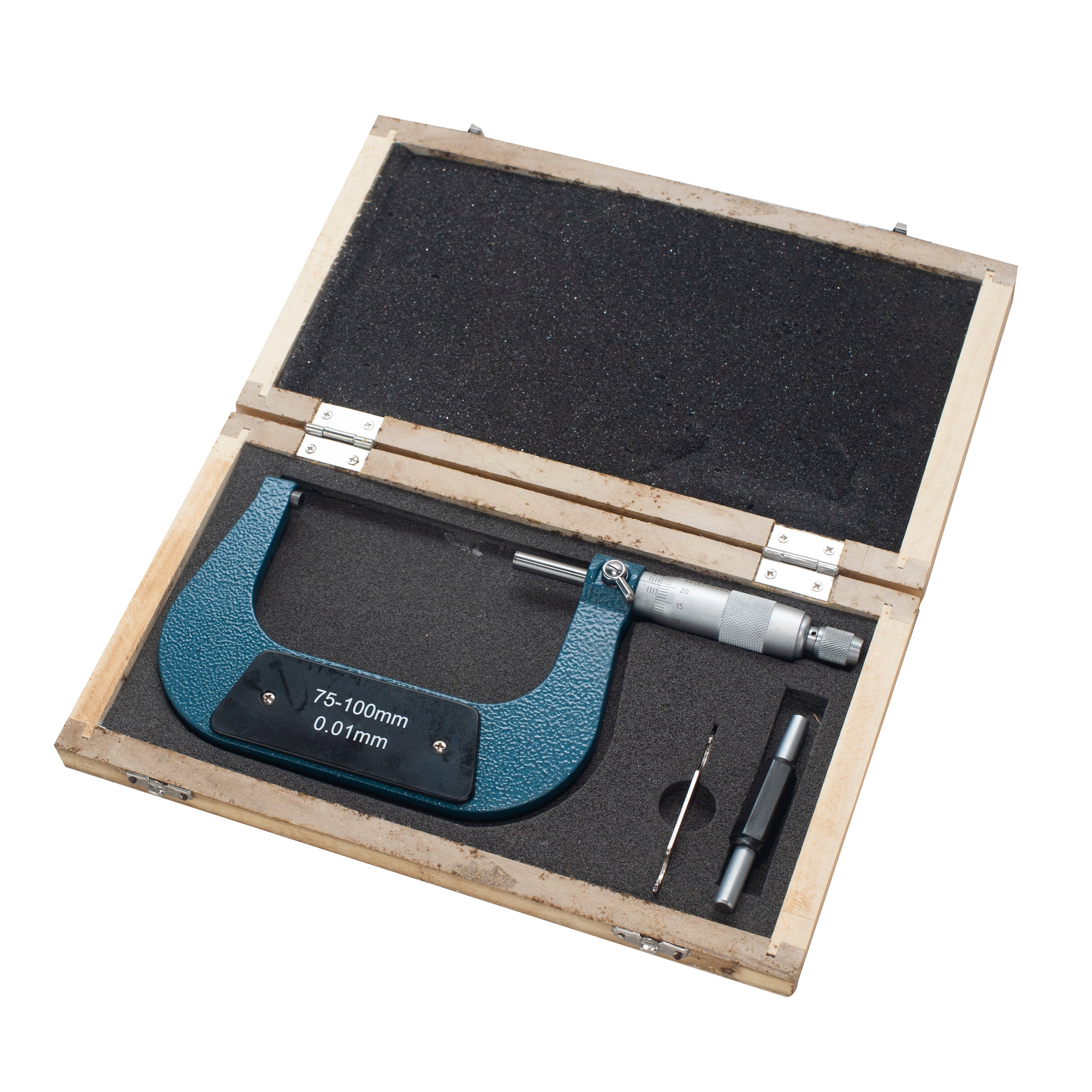

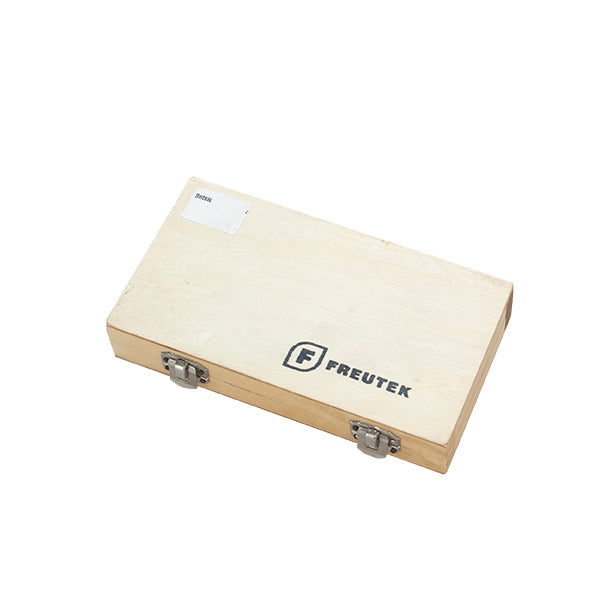

🔹 Wooden case included, for safe storage and perfect preservation
🔹 Compact and easy to handle design, ideal for professional use in industrial environments and workshops
Technical Specifications
Type External analog micrometer
Measuring range 75 - 100 mm
Resolution 0.01mm
Contact surface material: Hard metal, ground and lapped
Spindle lock Yes, for measurement stability
Material: Hardened steel
Structure Ergonomic and robust frame
Wooden case, for protection and transport| Weight | 2 Kg |
| Length | 260mm |
| Length | 150mm |
| Height | 35mm |
