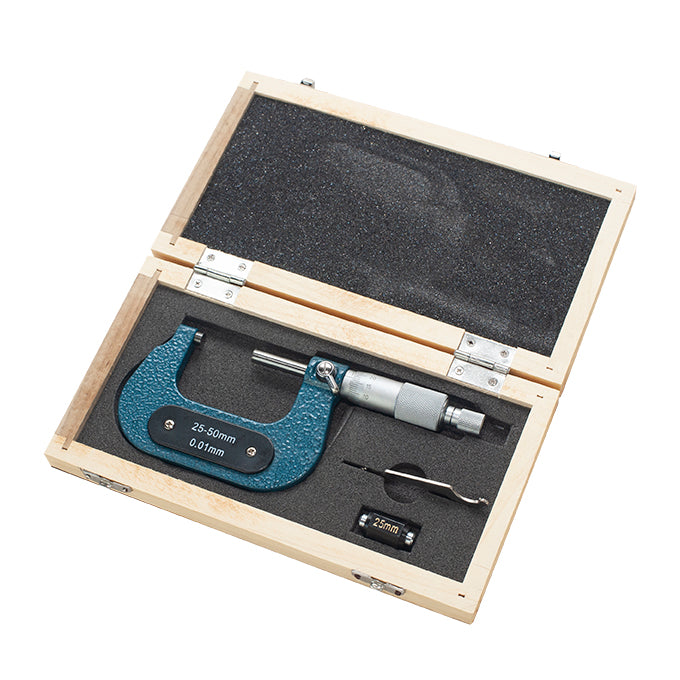

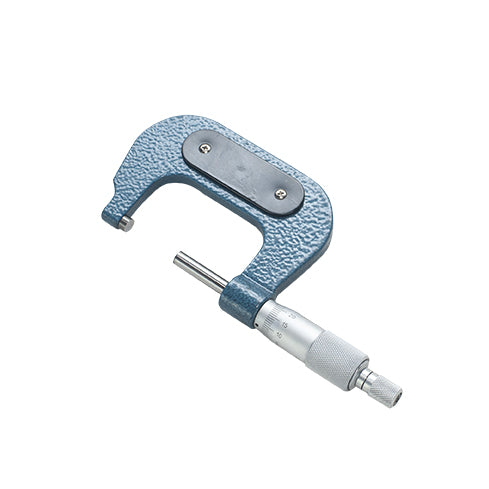

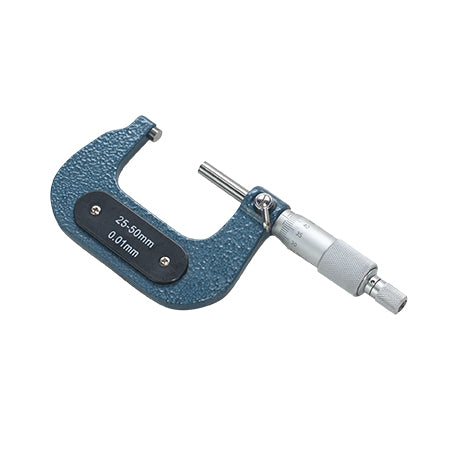

SDM0050 - Outside Micrometer 25-50mm x 0.01
Increments of 1
Minimum of 1
Maximum of
Sale price
€80,00 EUR
-100%
Regular price
€0,00 EUR
Regular price
€80,00 EUR
Unit price
per
Couldn't load pickup availability
The SDM0050 Outside Micrometer is a precision instrument designed for accurate measurement of external dimensions in the range of 25 to 50 mm. With a resolution of 0.01 mm, it is ideal for industrial applications, machine shops and quality control laboratories.
Main Features
✅ Precision and reliability
🔹 Measuring range from 25 to 50 mm
🔹 Ground and lapped carbide contact surfaces for greater durability
🔹 0.01mm resolution for accurate centesimal measurements
✅ Advanced structure
🔹 18mm matt chrome drum and compass, for clear and glare-free reading
🔹 Sturdy frame, which ensures stability even on larger pieces
🔹 Insulating pillows, to avoid measurement errors due to the heat of the hands
✅ Reliability in measurements
🔹 Friction on the shank, to ensure a constant measuring force and repeatable results
🔹 ±2 µm error margin, for high precision measurements
Technical Specifications
Type External Micrometer
Measuring range 25 - 50 mm
Resolution 0.01mm
Contact surface material: Hard metal, ground and lapped
Drum and compass Matt chrome, diameter 18 mm
Structure Robust frame with insulating cushions
Clutch on the shank Yes, for constant measurements
Accuracy ±2 µm| Weight | 1 Kg |
| Length | 210mm |
| Length | 120mm |
| Height | 35mm |
