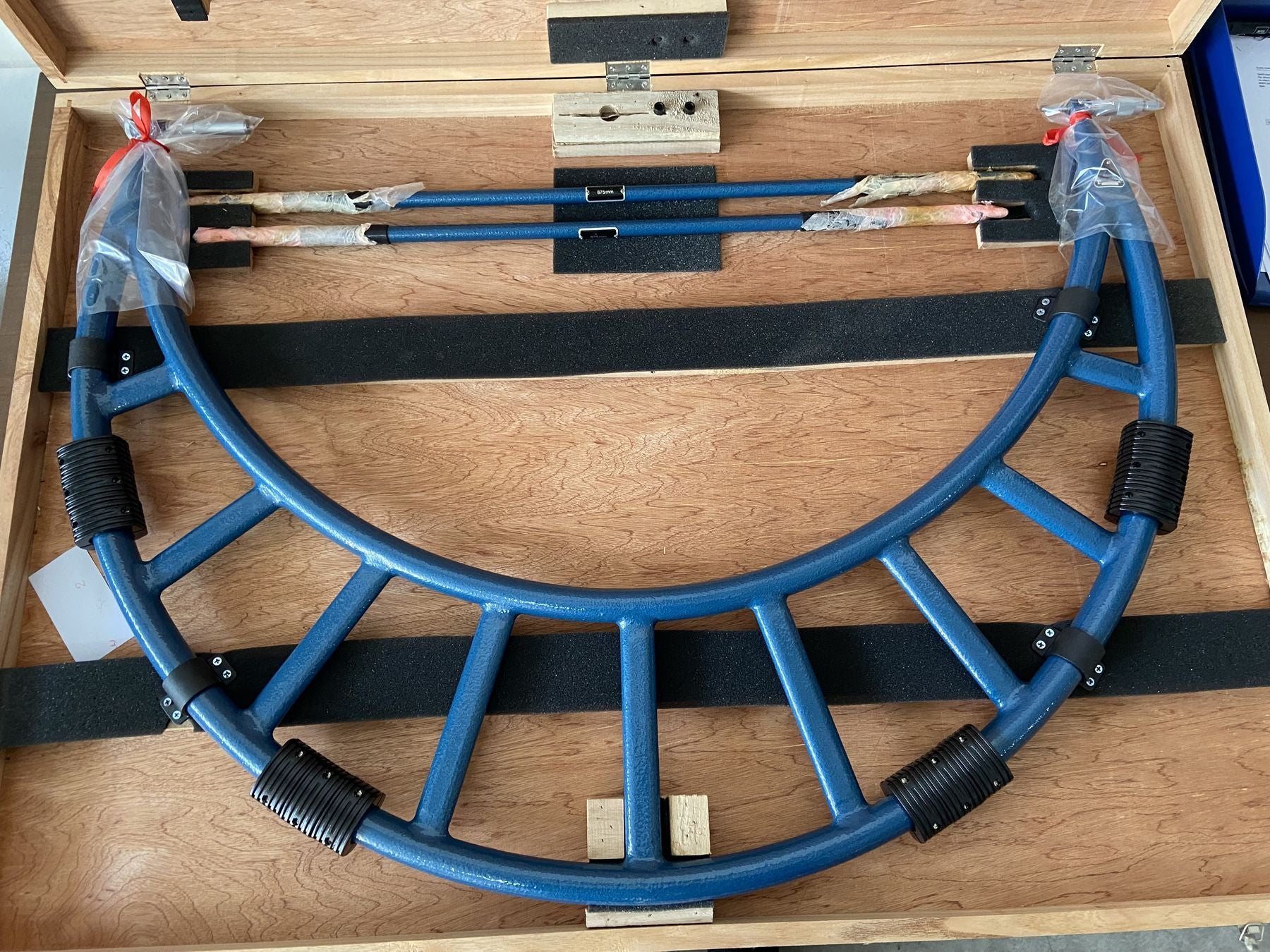

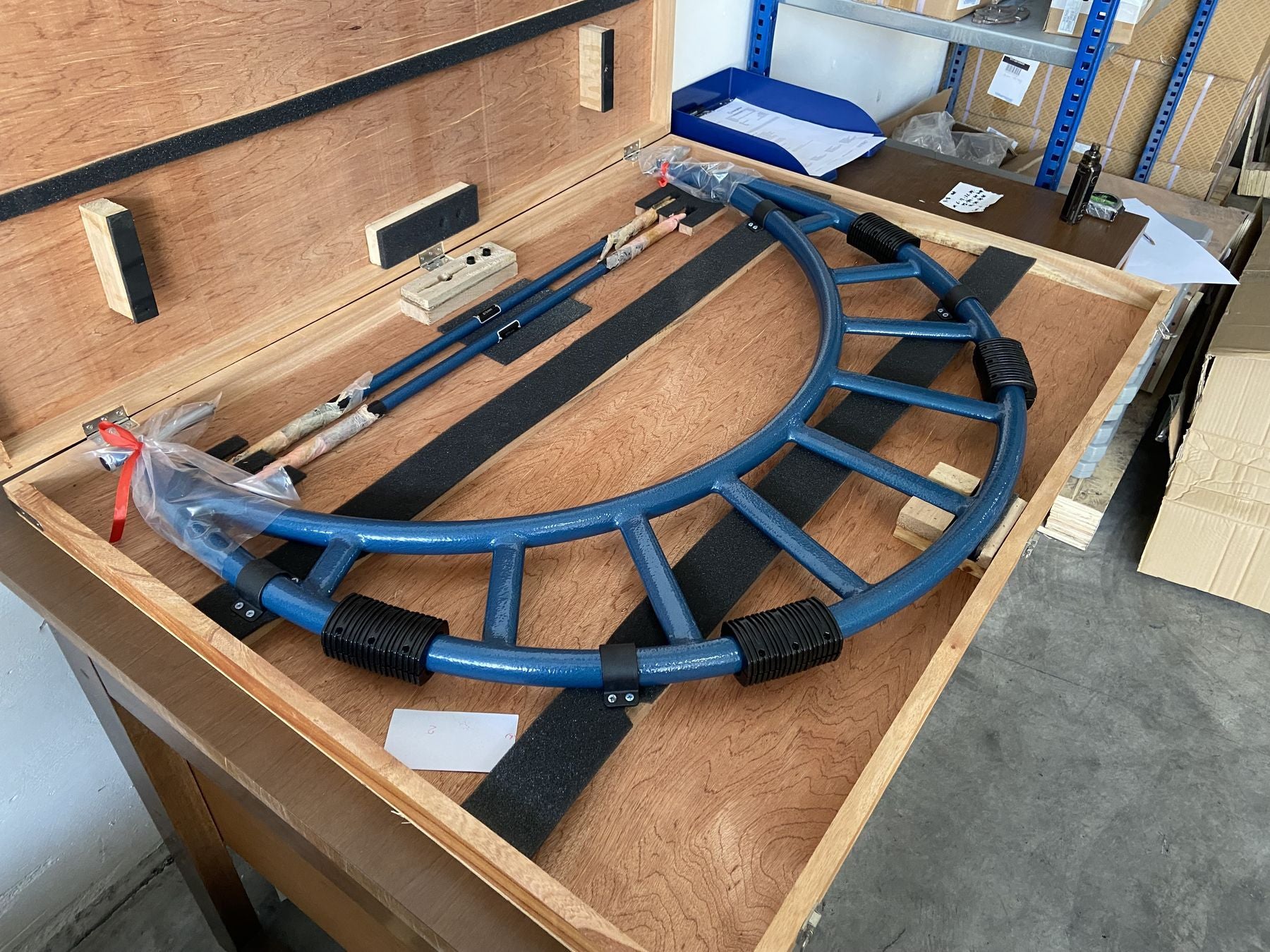

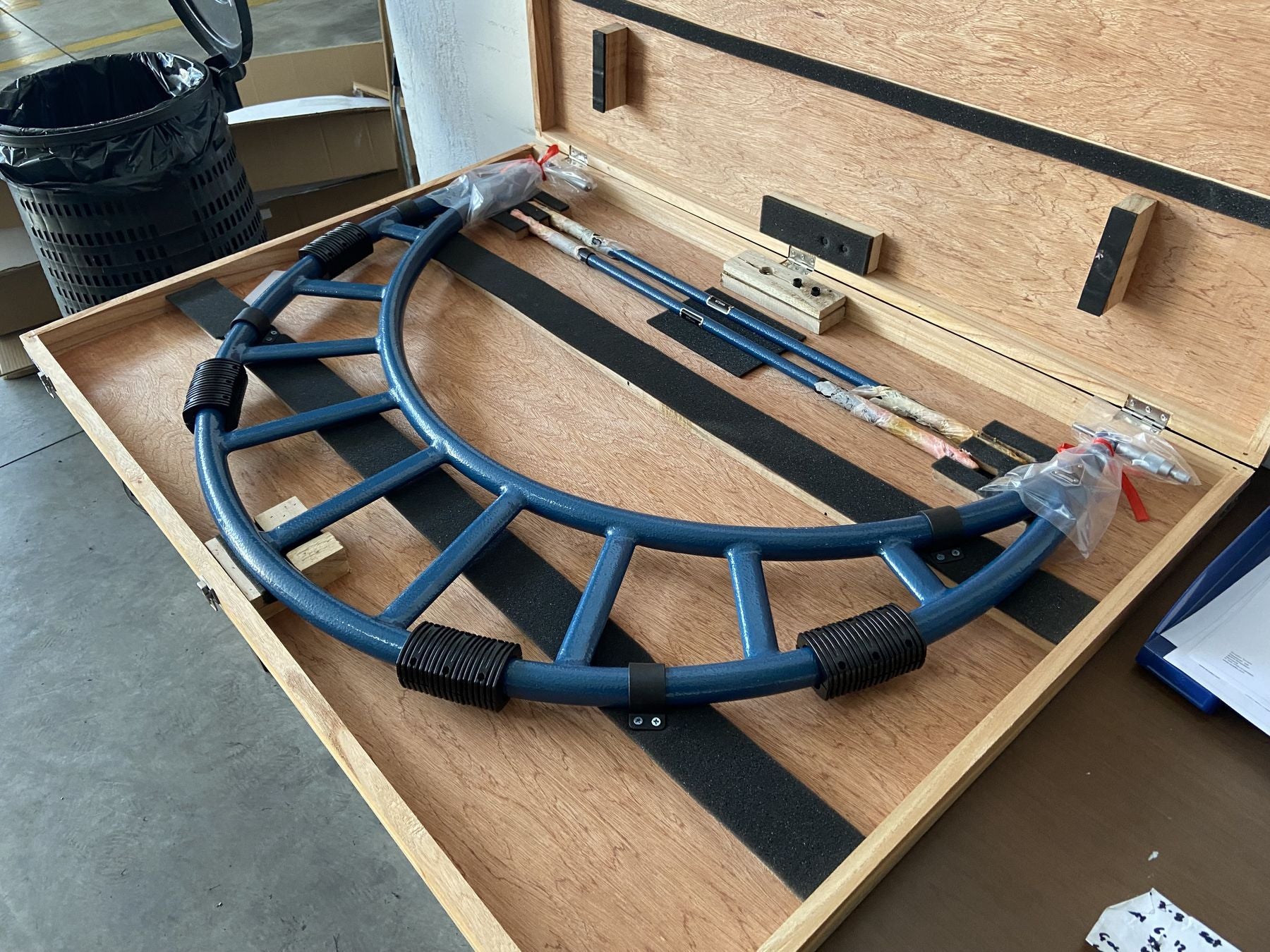

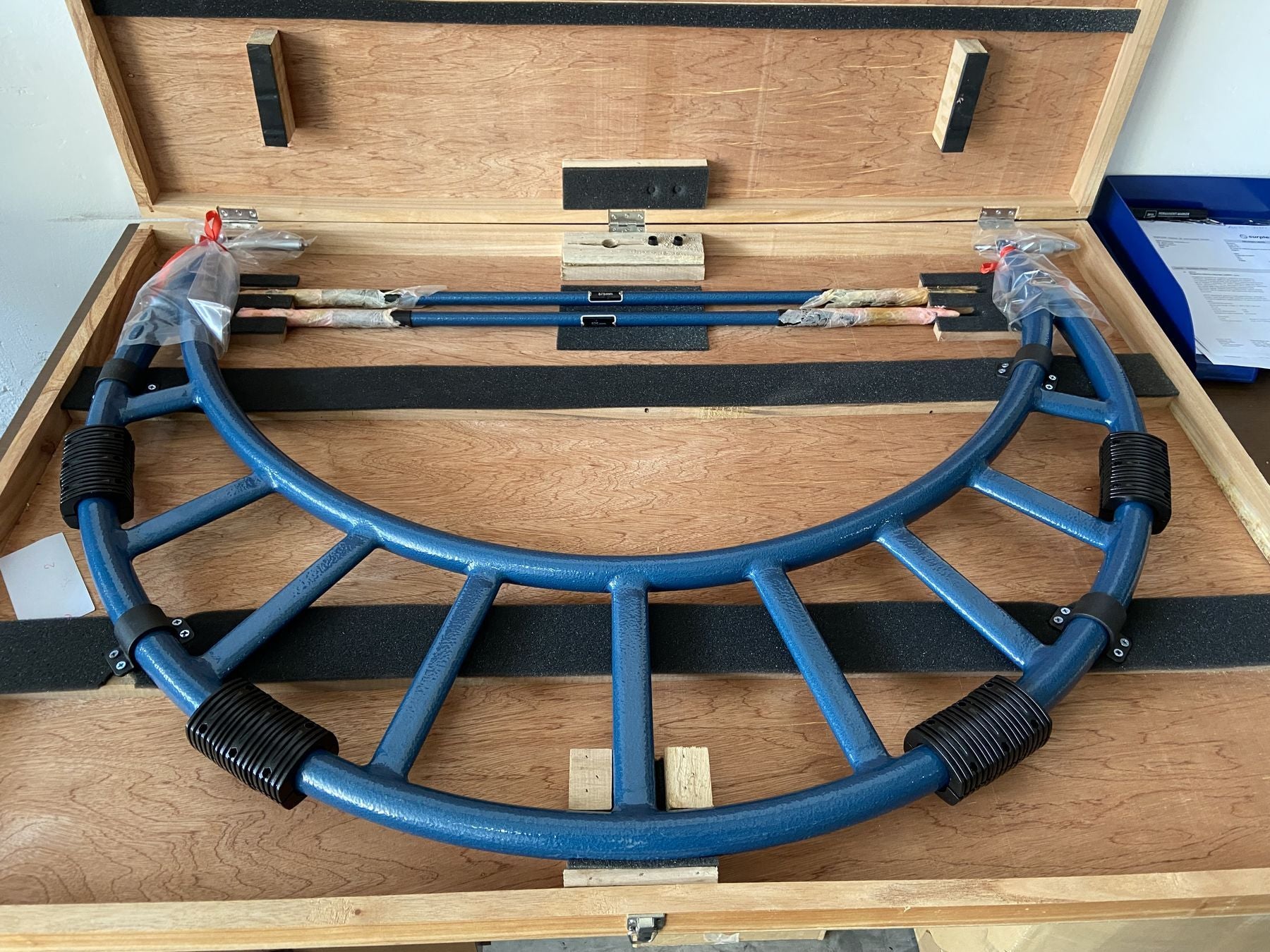

The SDM0038 Outside Micrometer is a professional instrument designed to ensure precise measurements on large mechanical components, with a measuring range of 800 to 900 mm and a resolution of 0.01 mm.
Thanks to the interchangeable anvil system, it is possible to adapt the instrument to different applications, ensuring maximum flexibility and versatility in measurements.
Main Features
✅ Precision and reliability
🔹 Wide measuring range (800-900 mm) for checking large components.
🔹 0.01mm resolution, for accurate and repeatable results.
✅ Versatility with interchangeable anvils
🔹 Wide range of measurements thanks to the modular anvil system.
🔹 Suitable for various materials and shapes, making it a versatile option for different industrial needs.
✅ Sturdy and durable structure
🔹 Hard metal contact surfaces for wear resistance and durability.
🔹 Friction on the shank, which ensures a constant and uniform measuring force, improving accuracy.
✅ Ease of use and improved reading
🔹 Ergonomic design for convenient and comfortable use.
🔹 Matte chrome finish on drum and compass, for easy reading even in low-light environments.
Technical Specifications
Measuring range 800 - 900 mm
Resolution 0.01mm
Micrometric measuring system with clutch
Interchangeable anvils Yes, for greater versatility
Contact material Hard metal, high wear resistance
Sturdy and durable structure
Matte Chrome finish for better readability
