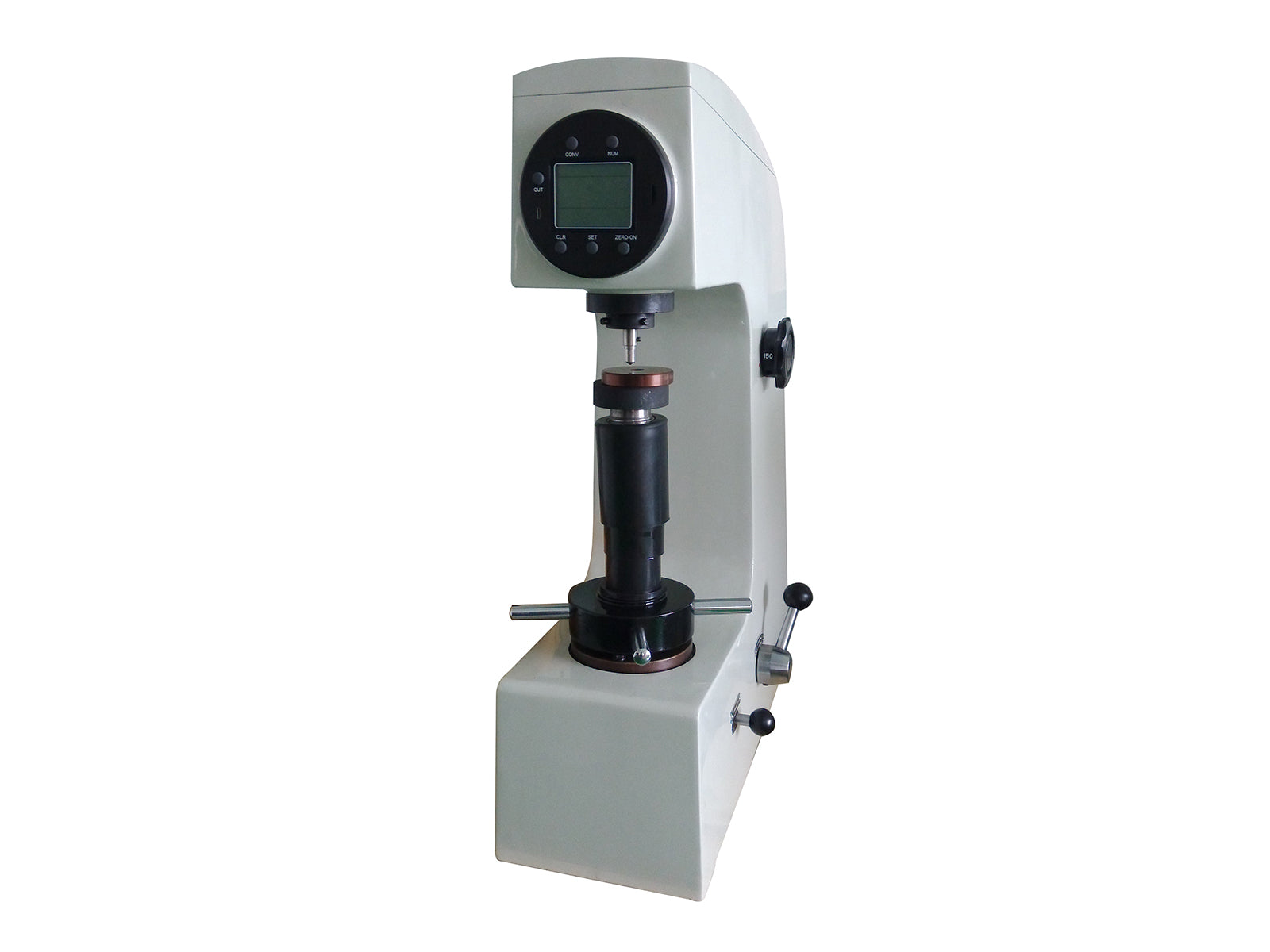

The NRH0001 professional hardness tester is an advanced instrument designed for precise measurements of the hardness of metallic materials. Ideal for metrology laboratories, quality control and industrial environments, it ensures reliable results thanks to a robust construction and high-precision components.
Main Features
✅ High precision and repeatability
🔹 0.5 HR resolution, for accurate and consistent readings.
🔹 Diamond and ball indenter, perfect for testing materials with different hardness scales.
✅ Calibration and versatility
🔹 5 calibration blocks included (3x HRC, HRBW, HRA) to ensure accurate measurements.
🔹 Adjustable measuring forces: 588.4N (60kgf), 980.7N (100kgf) and 1471N (150kgf).
✅ Large measuring capacity
🔹 Maximum measurable height of 100 mm (with lead screw protection) and 170 mm without screw cover.
🔹 Measuring depth of 135 mm, perfect for testing even bulky parts.
✅ Solid construction for industrial environments
🔹 Robust construction with dimensions 185 x 465 x 640 mm, ideal for continuous use.
🔹 Maximum stability and durability over time.
Technical Specifications
Type Benchtop durometer
Reading 0.5 HR
Diamond and sphere penetrator
Calibration blocks 3x HRC, HRBW, HRA
Maximum measurable height 100 mm (with screw cover) / 170 mm (without screw cover)
Measuring depth 135 mm
Durometer dimensions 185 x 465 x 640 mm
Measuring force 588.4 N (60 kgf) / 980.7 N (100 kgf) / 1471 N (150 kgf)
Perfect for those looking for a reliable, versatile and precise instrument for measuring hardness in industrial sectors and specialized laboratories.
