ATT0004 - BT-40/HSK63 Cone Assembly Support
Increments of 1
Minimum of 1
Maximum of
Sale price
€74,00 EUR
-100%
Regular price
€0,00 EUR
Regular price
€74,00 EUR
Unit price
per
Couldn't load pickup availability

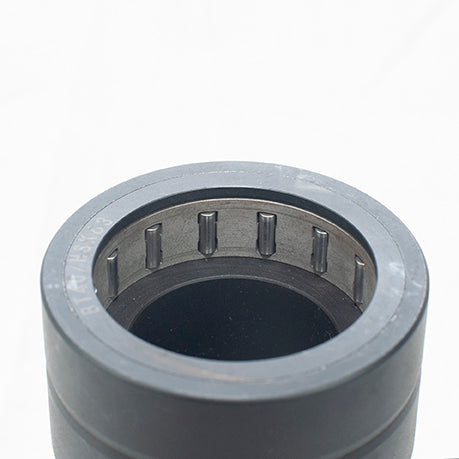

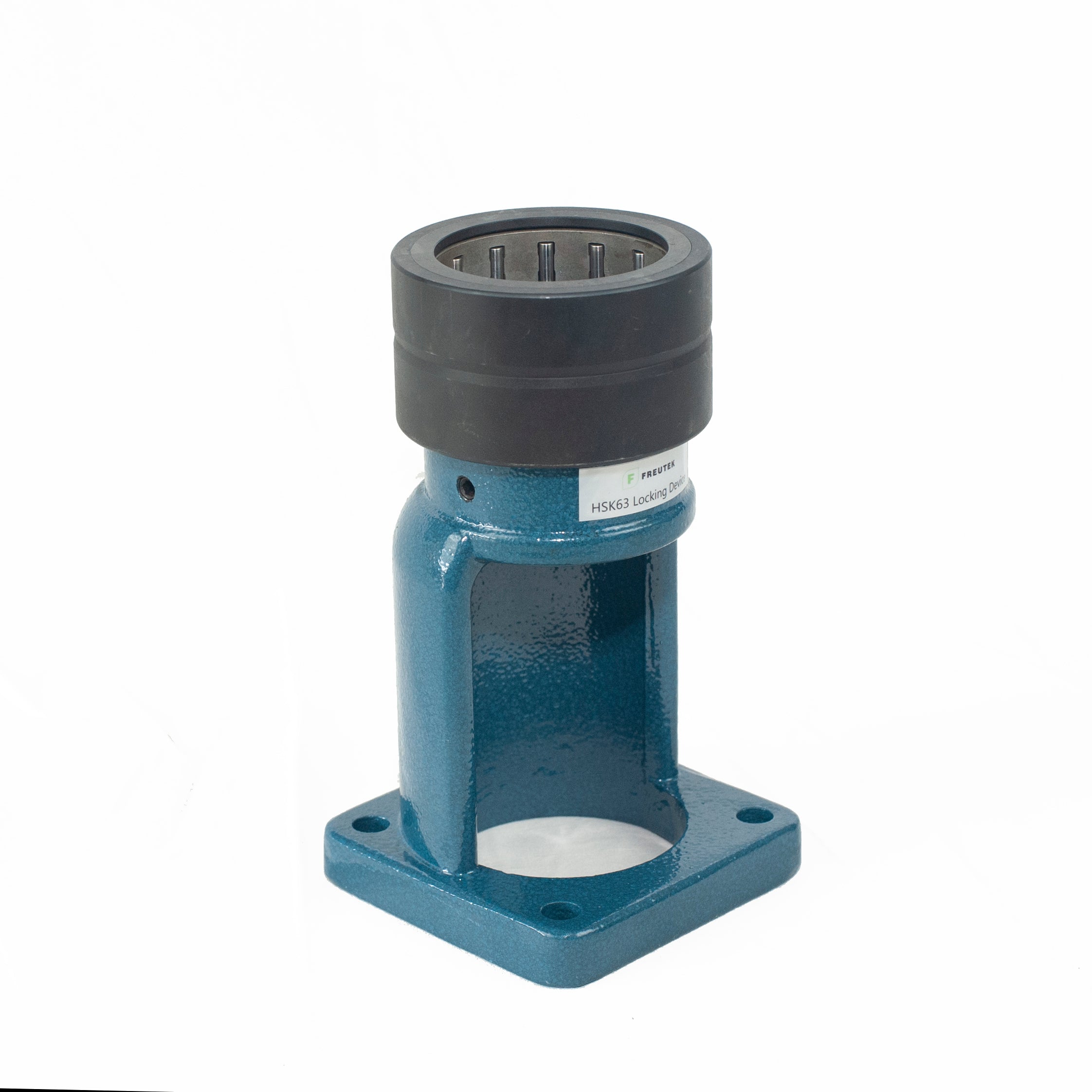

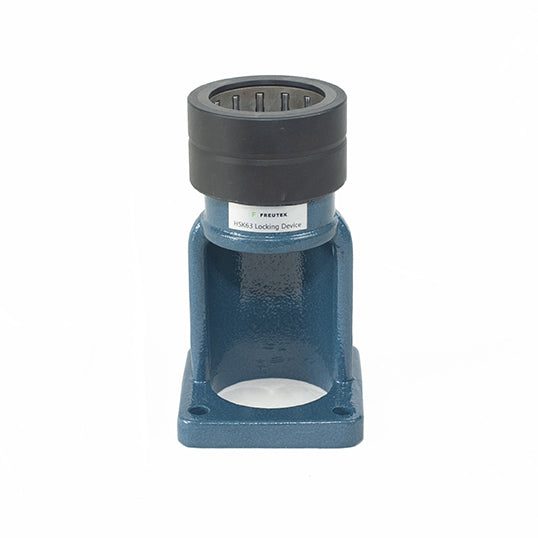

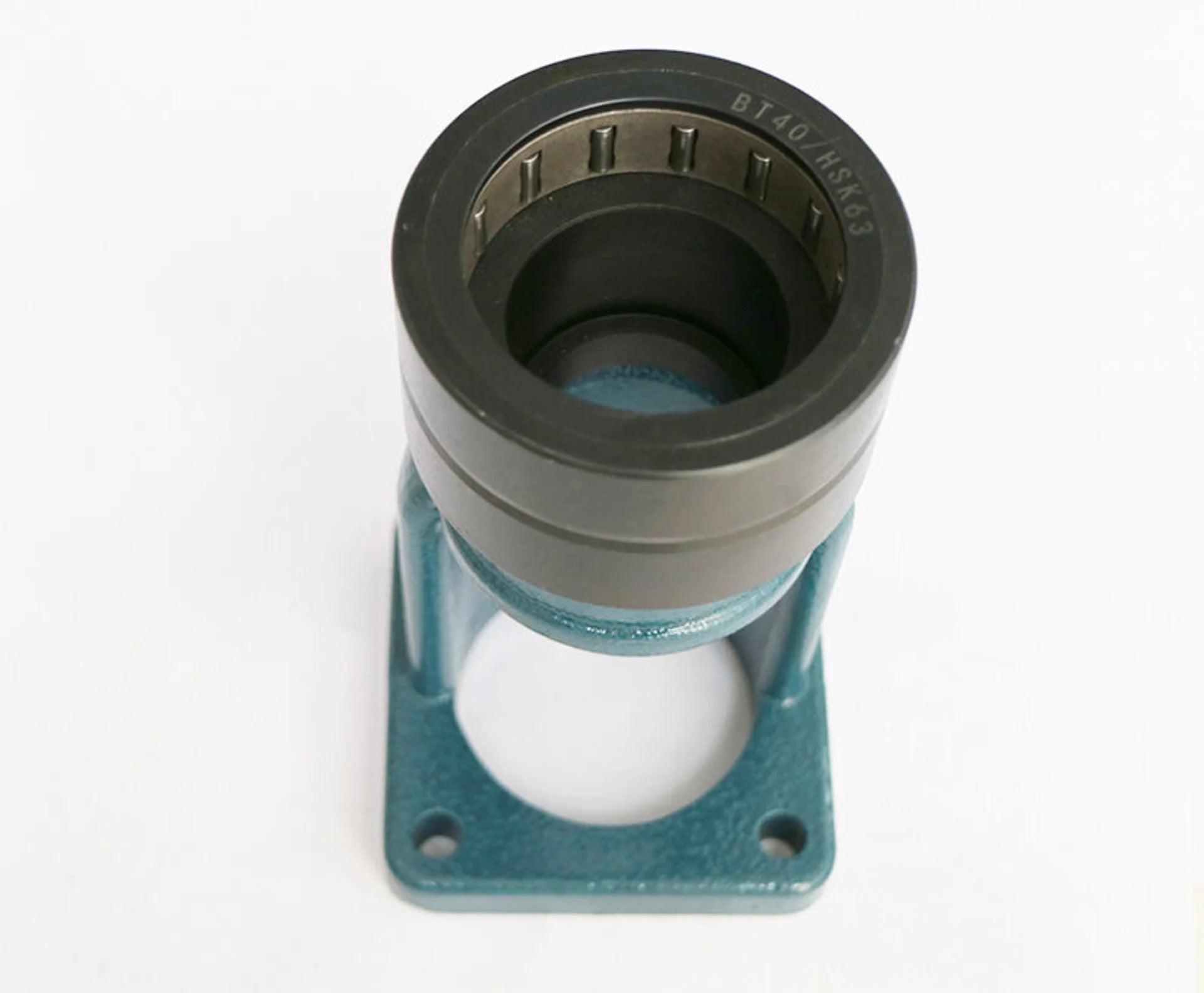

The ATT0004 is a professional roller support, ideal for the assembly and maintenance of BT-40 and HSK63 spindles. Thanks to its innovative crowned engagement system with bidirectional rotating rollers, it guarantees a secure tightening of the tool holder on the flange, simplifying the assembly and disassembly operations of tools and accessories.
The ATT0004's advanced design is engineered to protect the spindle taper, eliminating any direct contact with the holder itself, thus reducing the risk of damage or wear. The reinforced base features fixing points for stable anchoring on the workbench, ensuring precision and safety in daily operations.
✔ Compatible with BT-40 and HSK63 chucks
✔ Bidirectional rotation for effective tightening
✔ Full protection of the spindle cone
✔ Stable structure with workbench attachments

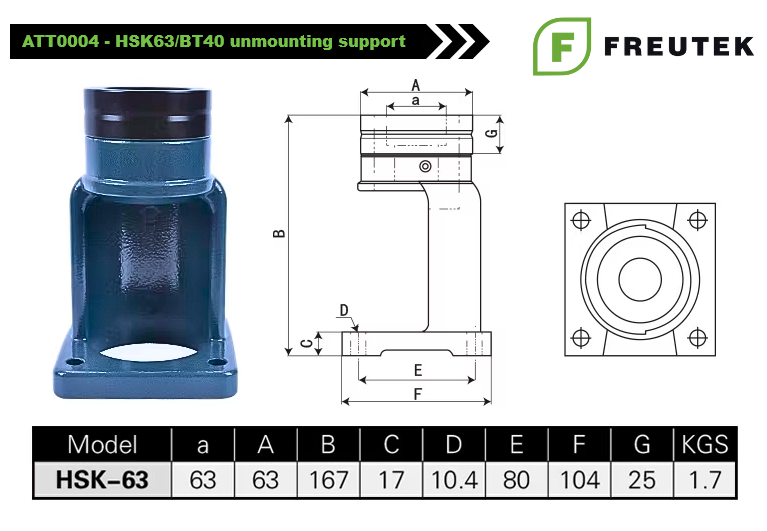

Technical Specifications
| Chuck Compatibility | BT-40 / HSK63 |
| Type of tightening | Bidirectional rotation rollers |
| Cone protection | Without direct contact |
| Material | High strength steel and polymers |
| Fixing system | Workbench Hooks |
| Weight | 2 Kg |
| Length | 210mm |
| Length | 120mm |
| Height | 120mm |
